The power cord is intended to connect electrical equipment with IEC 60320 C14 inlet to AC mains up to 250V.
The cord is made of stranded PVC insulated 3 x 0.75 wire. Side A is DIN49441 connector molded from flame retardant PVC. The connector on the opposite side (side B) is IEC 60320 C13 connector molded from flame retardant PVC.

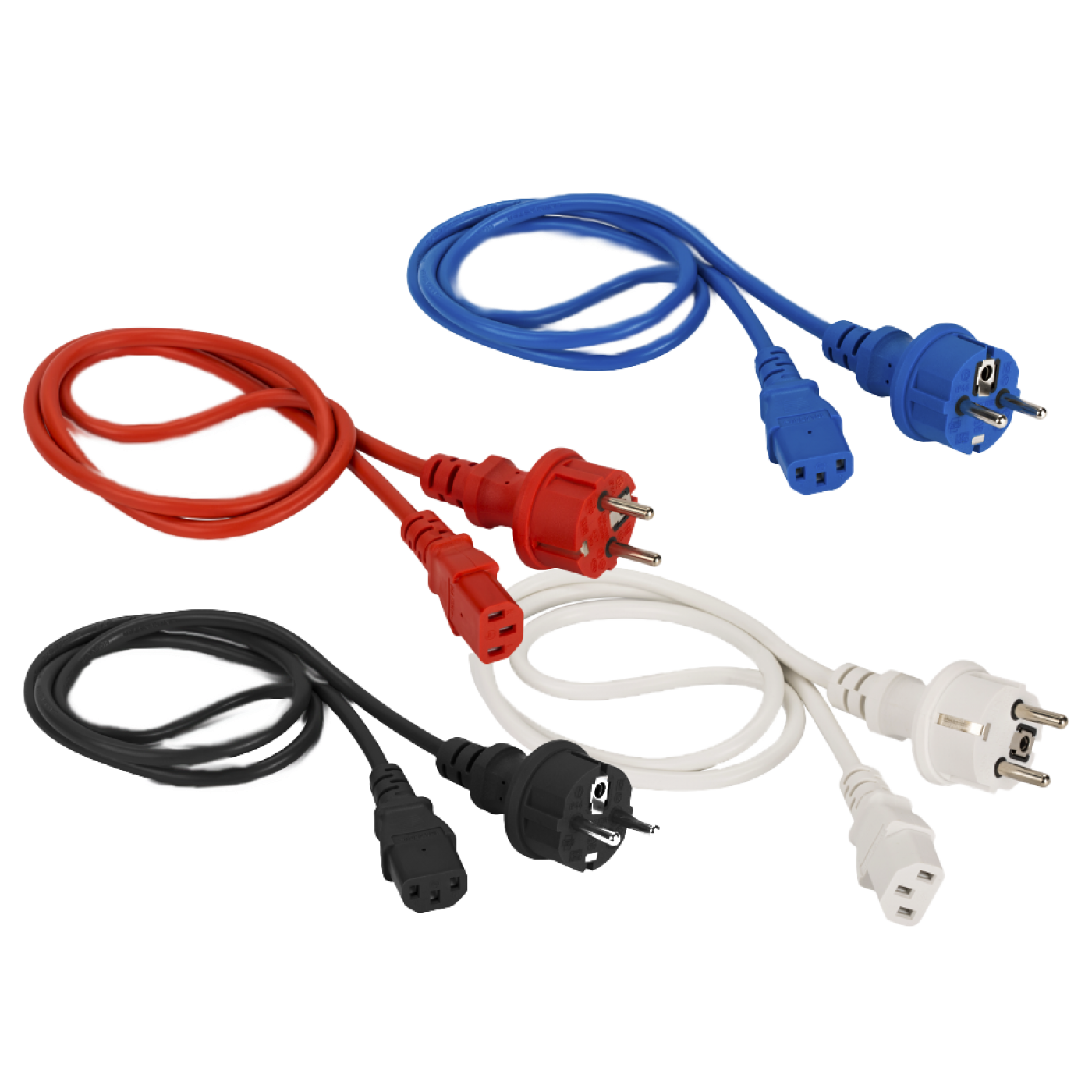

In addition to the regular black cords, there are also white, blue, and red power cords. By combining power cords of different colors in the connections of active equipment within the same rack you can save time on the identification of equipment and connections, thereby marking groups of hardware depending on the purpose in the infrastructure.
Cable type
3х0.75 PVC
Jacket material
PVC (polyvinyl chloride)
Jacket color
black, white, blue, red
Cord length
0.5 m; 1.0 m; 1.5 m; 1.8 m; 2.0 m; 3.0 m; 5.0 m; 7.0 m; 10 m
Wire cross-section
0.75 mm2
Wire type
Stranded
Maximum current
10 А
Maximum voltage
~250 V
Connector А
DIN49441
Connector В
IEC 60320 C13
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (36)
Code
Name
LAN-PP13/SH-0.5-BK
Power cord, C13-Schuko, straight, 3х0.75, 220V, 10A, black, 0.5 meters
