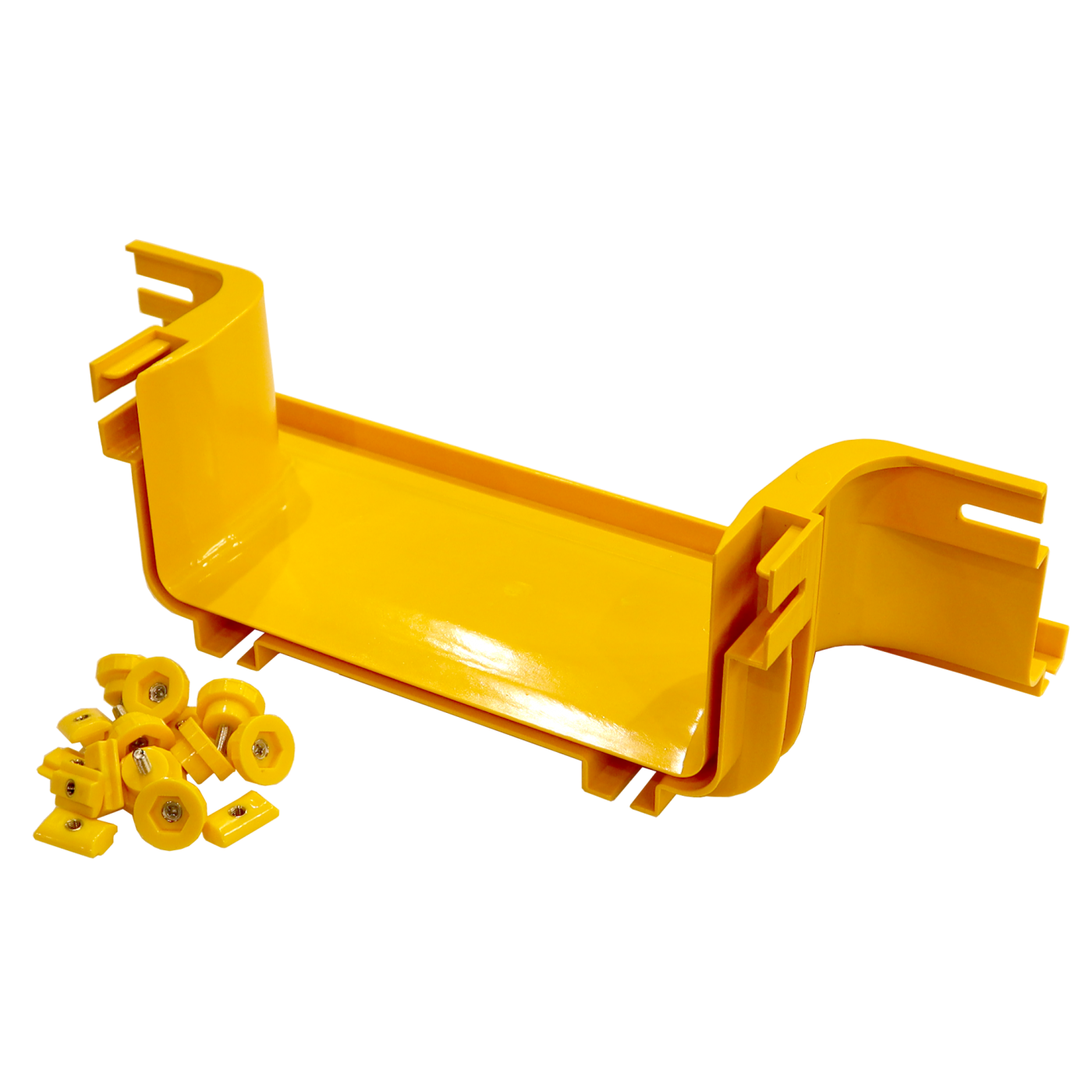

fiber raceway side drop, yellow
Purpose:
- Creates a horizontal side drop from a main fiber raceway to a 120, 240 or 360 mm branch raceway.
Features:
- Fast installation.
- High load capacity.
- No joiner is required at the cut-in point.
Package includes:
- LAN-OT120-UT/NC: side drop - 1 pc., plastic screws - 8 pcs., plastic nuts - 8 pcs.
- LAN-OT240-UT/NC: side drop - 1 pc., plastic screws - 8 pcs., plastic nuts - 8 pcs.
- LAN-OT360-UT/NC: side drop - 1 pc., plastic screws - 10 pcs., plastic nuts - 10 pcs.
Typical application:
- Horizontal cut-in branch from a main fiber raceway route.
Frequently Asked Questions
What is the LAN-OTxxx-UT/NC fitting for?
The fitting creates a side T-shaped branch of an optical tray route in the horizontal plane and attaches to the adjoining sections without separate LAN-OTxxx-CN connectors.
What is the difference between LAN-OTxxx-UT/NC and LAN-OTxxx-ET/NC?
Both fittings create a T-shaped branch and install without separate connectors. LAN-OTxxx-UT/NC is built as a side outlet, while LAN-OTxxx-ET is the classic T-shaped fitting; pick by the mounting layout given for your specific route, and check with your supplier if you're unsure which one fits your branch configuration.
What widths is the fitting available in?
The fitting is made for tray widths of 120, 240, and 360 mm (LAN-OT120-UT/NC, LAN-OT240-UT/NC, LAN-OT360-UT/NC).
What does the kit include?
The kit includes one yellow side-branch element and plastic screws with nuts for attaching to the adjoining tray sections: 8 sets for the 120 mm and 240 mm widths, 10 sets for the 360 mm width.
Is a separate LAN-OTxxx-CN connector needed for this fitting?
No, the fitting attaches directly to the adjoining straight sections — for example, a side branch onto a 240 mm tray is assembled using one LAN-OT240-UT/NC with no separate connectors.
Does this route element need to be grounded?
The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OT120-UT/NC | pcs | 280 × 170 × 130 | 0.46 | 0.006188 |
| LAN-OT240-UT/NC | pcs | 400 × 120 × 160 | 0.6 | 0.00768 |
| LAN-OT360-UT/NC | pcs | 600 × 120 × 160 | 0.85 | 0.01152 |
