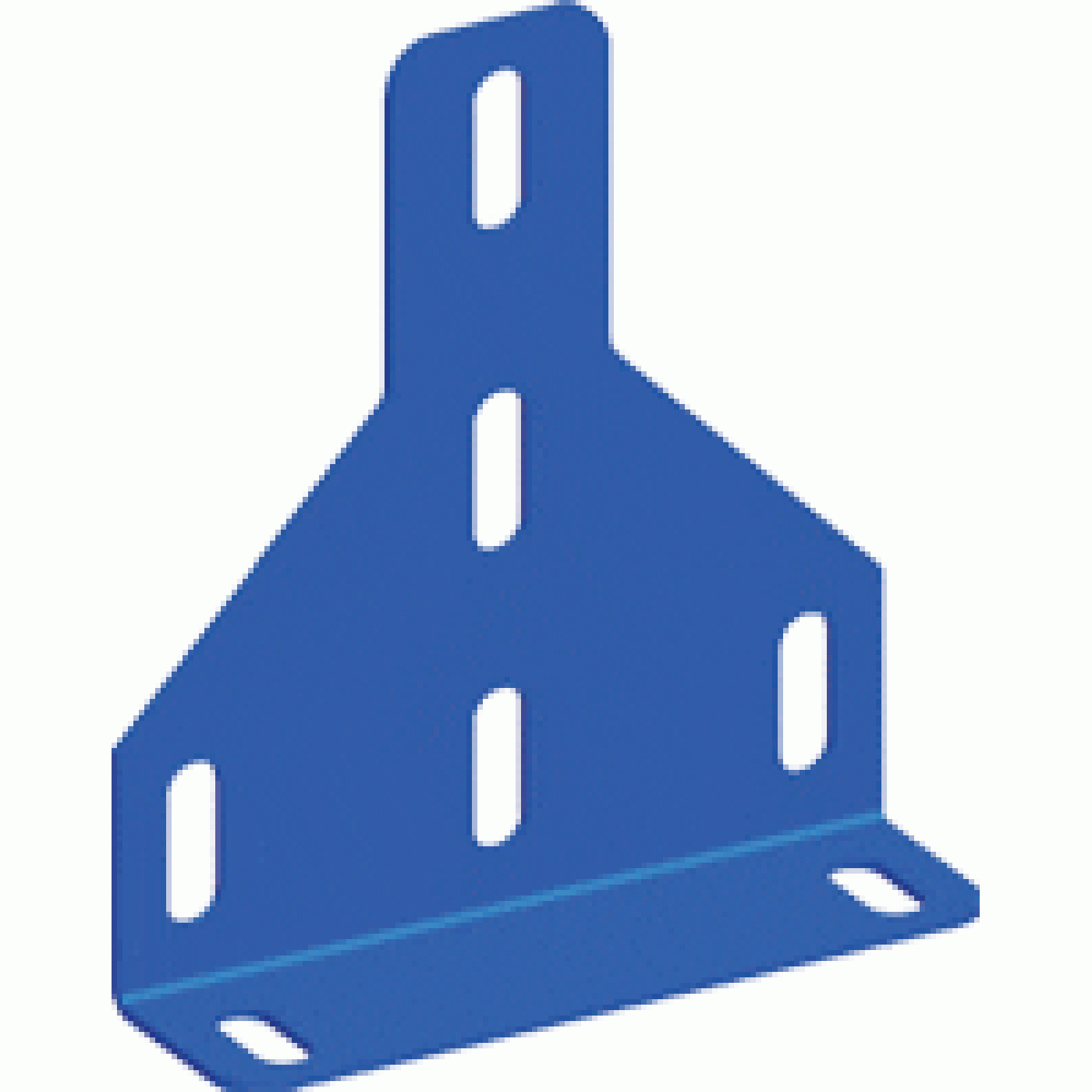

Fixing bracket for steel ladder tray, gray

Fixing bracket for steel ladder tray, gray LAN-LTS-BTF-GY: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-LTS-BTF-GY

Purpose:

  • T-joint of two LAN-LTS-ZL profiles.


Features:

  • ease of installation,
  • high load capacity.

Frequently Asked Questions

What is the LAN-LTS-BTF-GY fixing bracket used for?

The bracket forms a T-joint of two LAN-LTS-ZL longitudinal profiles of the steel ladder tray, for example at a side branch of the route. It is easy to install and is built for a high load.

How to choose between the LAN-LTS-BTF-GY bracket and the LAN-LTS-CNT-GY and LAN-LTS-L100-GY connectors?

Choose the LAN-LTS-BTF-GY bracket for a T-joint of profiles. To extend a profile in a straight line use the LAN-LTS-CNT-GY straight connector, and to join two profiles to each other use the LAN-LTS-L100-GY angle connector.

Which fasteners are needed to install the LAN-LTS-BTF-GY bracket?

Use the LAN-LTS-FIXSET screw and nut set for the steel ladder tray.

Is the LAN-LTS-BTF-GY bracket suitable for an aluminium ladder tray?

No. For a T-joint of the profiles of the LAN-LTAxxx aluminium tray use the LAN-LTA-UTF U-shaped fixator. Accessories of the LAN-LTS and LAN-LTA series are not interchangeable.

Is additional bonding required at the joints of a steel ladder tray?

A steel tray is part of a metal cable route, so check the project and the site regulations: they define whether the mechanical connection of the sections is sufficient or a separate bonding jumper is required at every joint. If a jumper is specified, install it at every joint so that the grounding path stays continuous along the whole route.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-LTS-BTF-GY pcs 140 × 40 × 120 0.34 0.000672

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-LTS-BTF-GY box 250 × 100 × 210 17 0.00525

Product Codes (1)

  • Fixing bracket for steel ladder tray, gray
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
