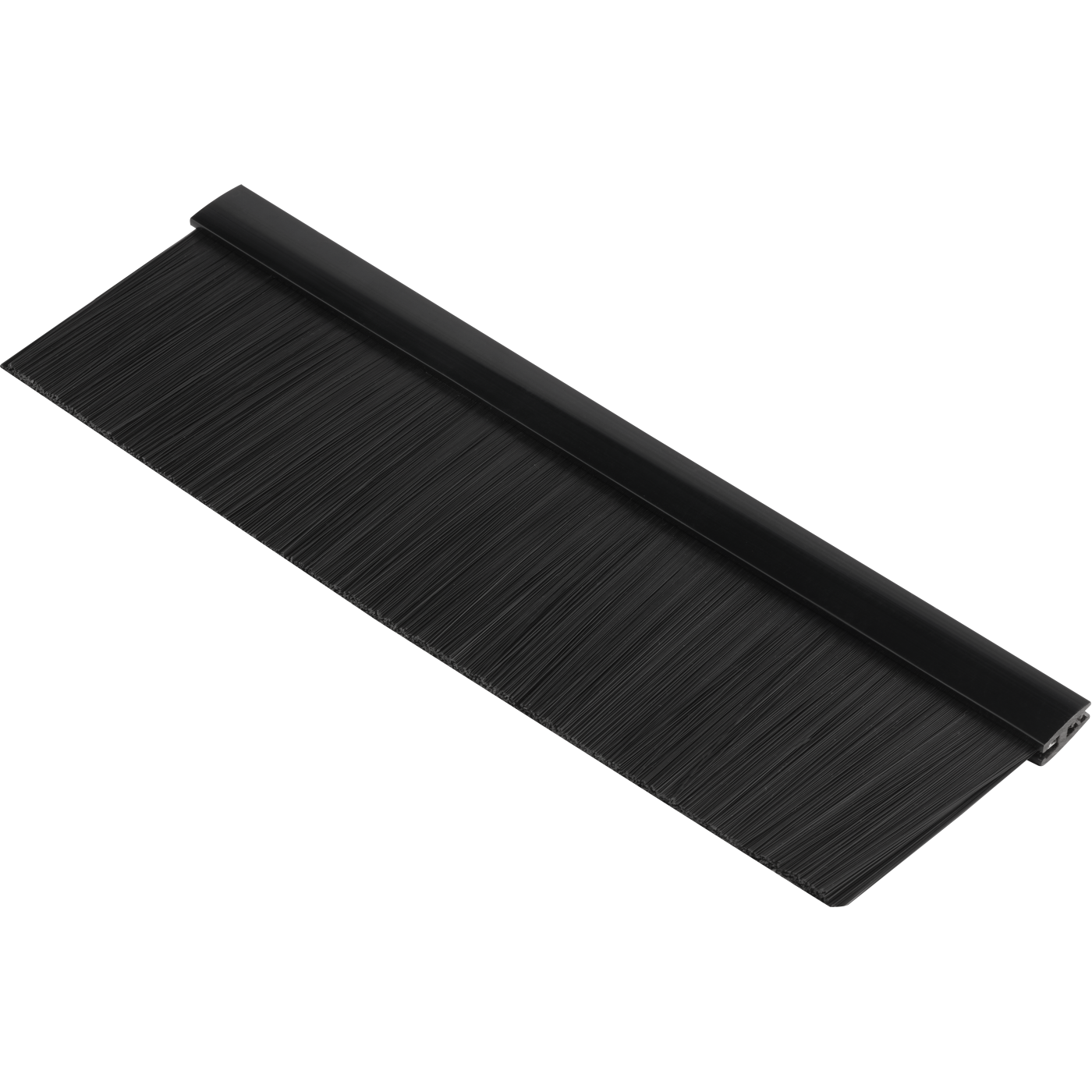

Brush strip for cable entry opening in the roof and the bottom panel of LANMASTER DCS cabinet

Brush strip for cable entry opening in the roof and the bottom panel of LANMASTER DCS cabinet
LAN-DC-CB-BRE

The brush strip is designed to install on cable entries and protect the interior of the cabinet from dust and dirt and prevent air leaks at the places where cables enter to the cabinet.

The use of brush entries also reduces the risk of damage to the cable from the edge of the cable entry hole.

A feature of this brush strip is that it can be installed even after the cable has been brought into the cabinet. The brush strip does not have a closed contour and is attached to the edge of the entry hole.

Fits into the appropriate holes in a roof and a bottom panel of LANMASTER DC series cabinets.

Frequently asked questions and answers

What is the LAN-DC-CB-BRE brush entry designed for?

This split brush cable entry protects the cabinet interior from dust and dirt, reduces air leakage where cables pass through, and lowers the risk of cable damage on the edges of the opening.

What is the advantage of its split design compared to an ordinary brush entry?

The split design allows the entry to be installed after cables are already routed into the cabinet, since the brush attaches along the edge of the opening rather than forming a closed loop.

Which openings is the brush entry installed in?

It installs in the matching openings in the roof and floor panel of LANMASTER DC series cabinets.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-BRE pcs 300 × 100 × 10 0.03 0.0003

Product Codes (1)

  • Brush strip for cable entry opening in the roof and the bottom panel of LANMASTER DCS cabinet
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
