TWT, shielded

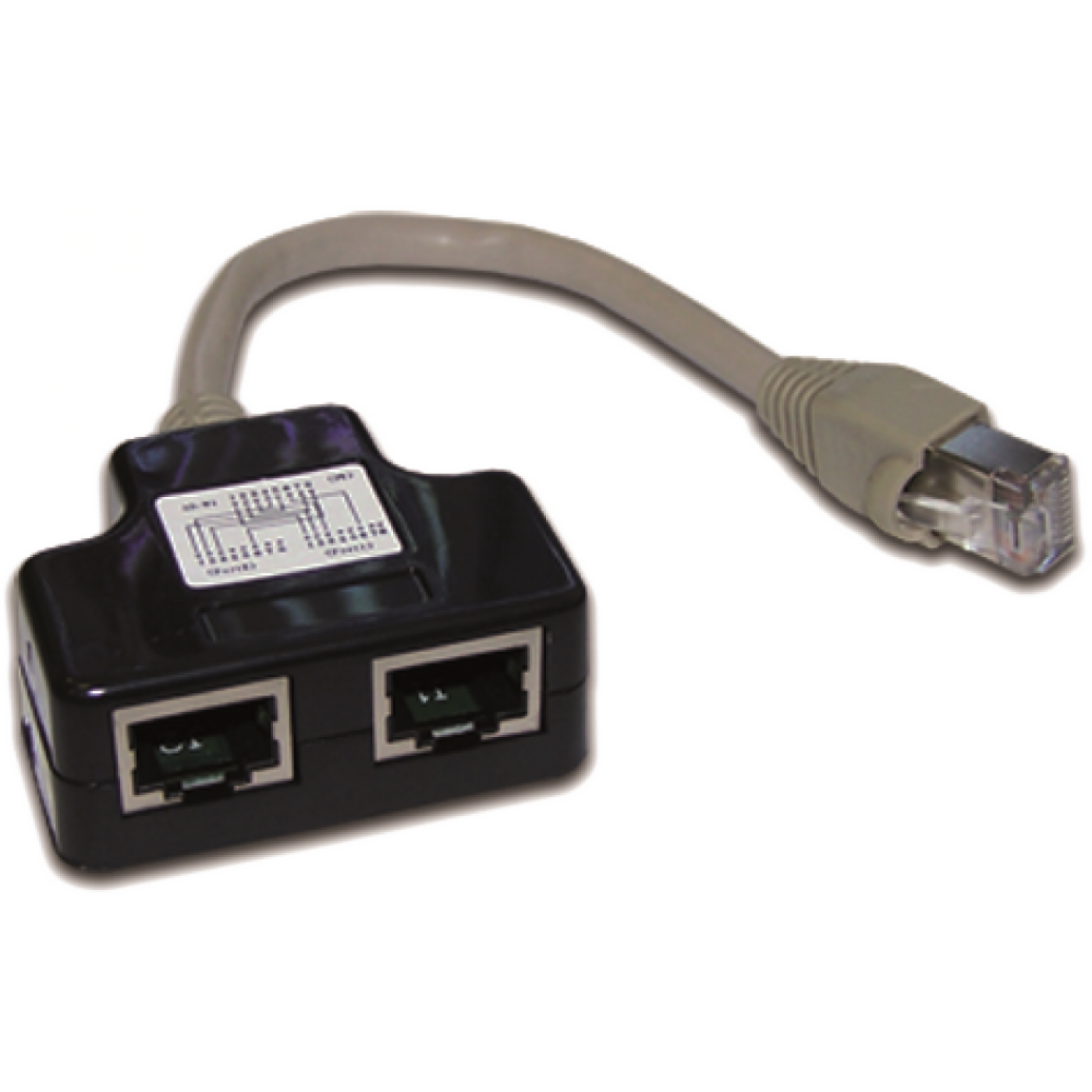

Y-Adapters are designed to split RJ-45 ports. The use of Y-Adapters allows you to double the number of ports per one cable. The presence of a shield allows these adapters to be used in shielded cable systems, while maintaining a continuous ground loop. The wiring diagram is located on the upper surface of the case.
Most frequently asked questions and answers
What is the Y-adapter TWT-Y-U2-U2-S used for?
The Y-adapter converts one 4-pair RJ-45 port at the input into two 2-pair ports for voice applications. Y-adapters are convenient for splitting ports in work-area outlets, T-adapters for splitting ports on patch panels. The common screen allows the adapter to be used in shielded cabling systems while keeping the grounding loop continuous.
Why should the Y-adapter TWT-Y-U2-U2-S be used in pairs?
The adapters divide the cable pairs between ports, so a second splitter or a special outlet that combines the lines again must be at the other end of the cable, otherwise the devices cannot exchange data. It is recommended to use Y- and T-adapters together: TWT-T-U2-U2 suits this adapter.
What should I do if the product TWT-Y-U2-U2-S does not work or works unstably?
Check that the connectors are fully latched, the conductors are connected by the same scheme at both ends of the link and there is no open or short circuit. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.
