T-Adapter, 1 Phone and 1 Ethernet jacks

Converts one input 4-pair RJ-45 (T568A/T568B) port to two 2-pair ports for 10/100BASE-T applications.

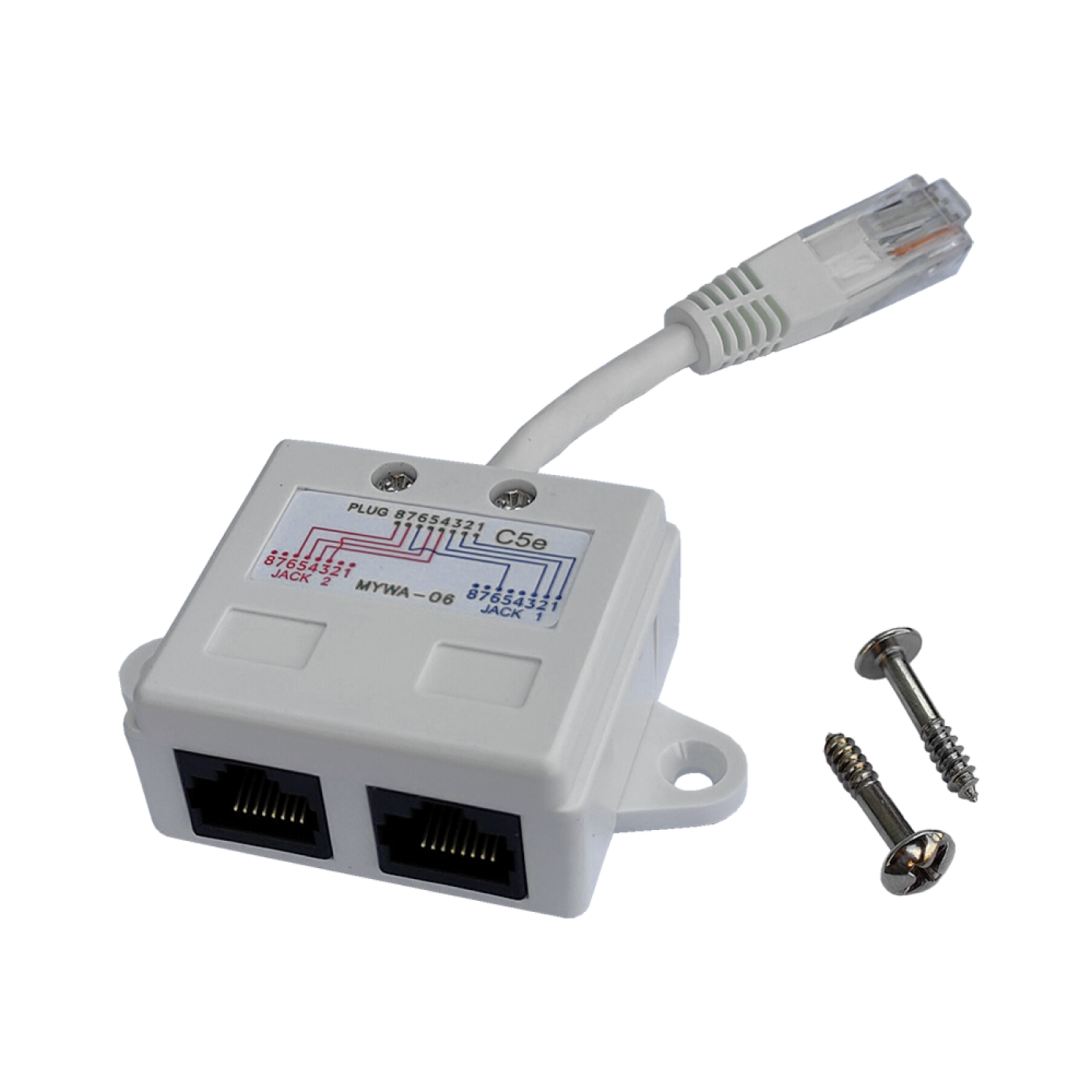

The wiring diagram and labeling pads are located on the upper surface of the case. Y-Adapter body has lugs for fixing on the wall with screws.

Y-Adapters are convenient for separating ports in sockets in workplaces.

It is recommended to use the TWT-T-E2-U2 T-Adapter together with the Y-Adapter to separate the ports on the patch panels.

Category 5E compliant.

Important: The adapters must be used in pairs!

For a proper connection, the other end of the cable must have either a second splitter or a dedicated wall outlet that recombines the lines. Otherwise, the devices will not be able to communicate.

In other words, the signal at the other end must also be routed through the corresponding two ports, for example, using an identical adapter with a mirrored connection.

Wiring Diagram
