TWT-Y-BRIDGE-S

Y-Adapters are designed to split RJ-45 ports. The use of Y-Adapters allows you to double the number of ports per one cable. The presence of a shield allows these adapters to be used in shielded cable systems, while maintaining a continuous ground loop. The wiring diagram is located on the upper surface of the case.

Most frequently asked questions and answers

What is the Y-adapter TWT-Y-BRIDGE-S used for?

The passive Y-adapter combines or splits signals by connecting the contacts in parallel: all 8 contacts of the common port are connected directly to the corresponding contacts of both parallel ports. It is intended for specialized systems where such a topology is permitted (for example, RS-485 buses, some video-surveillance and audio-broadcast systems) and for test benches. The common screen allows the adapter to be used in shielded systems.

TWT, shielded TWT-Y-BRIDGE-S

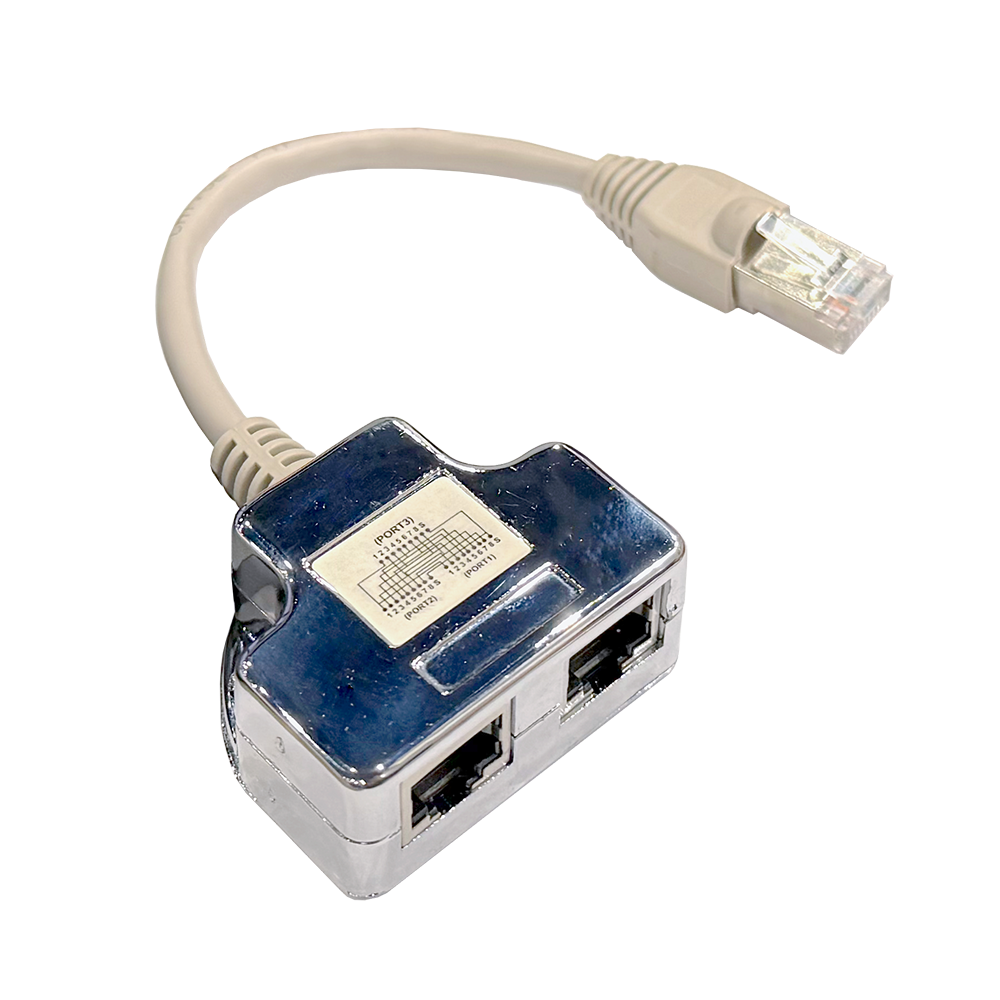

Appearance TWT-Y-BRIDGE-S
For which tasks is the Y-adapter TWT-Y-BRIDGE-S not suitable?

Parallel connection of ports is not suitable for Ethernet and other interfaces where each port must have its own pairs: connecting two active devices to one line causes signal conflicts. Use the adapter only where it is permitted by the equipment manufacturer.

What should I do if the product TWT-Y-BRIDGE-S does not work or works unstably?

Check that the connectors are fully latched, the conductors are connected by the same scheme at both ends of the link and there is no open or short circuit. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-Y-BRIDGE-S pcs 210 × 50 × 20 0.043 0.00021

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-Y-BRIDGE-S box 240 × 200 × 120 1.135 0.00576
