TWT, U/UTP, wall outlet, 2-port, unshielded, white

TWT, U/UTP, wall outlet, 2-port, unshielded, white for copper structured cabling systems. LANMASTER product information, specifications and part number details.
TWT-SM2-4545/6-WH

TWT, U/UTP, wall outlet, 2-port, unshielded, white. Product for LANMASTER copper structured cabling systems. Use according to the project design and product specifications.

Most frequently asked questions and answers

What is the wall outlet TWT-SM2-4545/6-WH used for?

The wall outlet is intended for wall mounting. The RJ-45 ports (category 5e or 6, UTP (unshielded twisted pair) or STP (shielded twisted pair) depending on the version) are mounted on one printed circuit board together with 110-type IDC (insulation displacement contact) connectors; for the telephone outlet the port is an RJ-12 socket with screw contacts.

TWT, U/UTP, wall outlet, 2-port, unshielded, white TWT-SM2-4545/6-WH

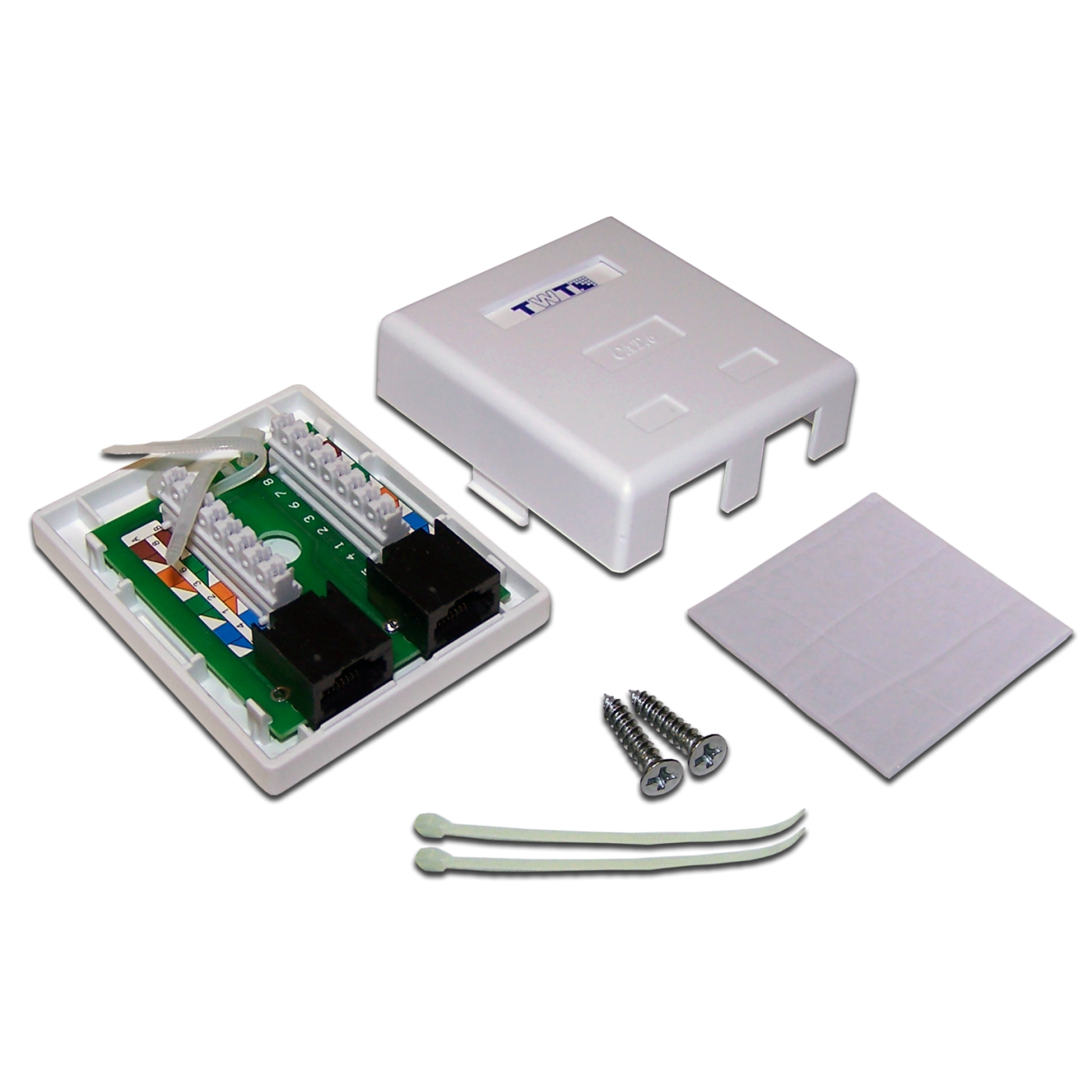

Appearance TWT-SM2-4545/6-WH
How do I install the wall outlet TWT-SM2-4545/6-WH?

Fix the outlet to the wall with the double-sided pad or a screw, terminate the cable by the T568A or T568B scheme (for the telephone outlet, on the screw contacts) and close the cover. For shielded versions connect the cable screen to the outlet screen.

What should I do if the product TWT-SM2-4545/6-WH does not lock in place or works incorrectly?

Check that the product is installed all the way, the latches have engaged and the size and version match the mounting position. Make sure the cables are terminated by the same scheme at both ends of the link and have no open or short circuit; reinstall the product or redo the termination if necessary.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-SM2-4545/6-WH pcs 70 × 30 × 60 0.05 0.000126

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-SM2-4545/6-WH box 330 × 330 × 250 10 0.027225

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
