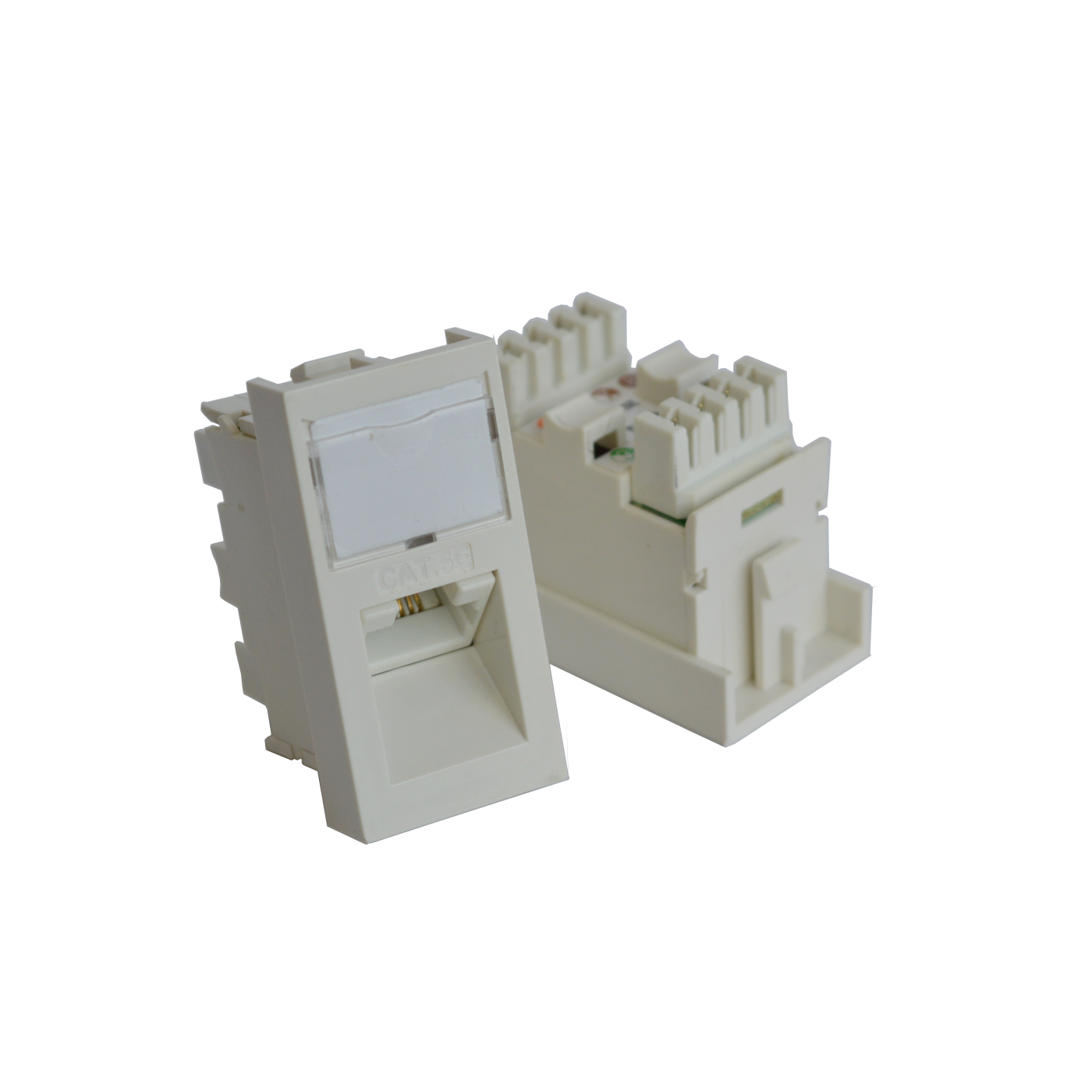

RJ-45 UTP Cat. 5E 22.5x45 mm angled insert, with label field, white
Product Code: TWT-SIP-RJ45/A-WH
RJ-45 UTP Cat. 5E 22.5x45 mm angled insert, with label field, white
Unshielded data modules of category 5e combined with a 22.5x45 front insert for the French Mosaic mounting frames. There are IDC wiring block on the rear side of the module, at an angle of 180° relative to the front surface of the module. For ease of installation, there is a wiring diagram in accordance with the T568B between the IDC blocks. The angled recess of the insert provides additional functionality when using the socket. Connecting patch cords at an angle to the wall surface reduces stress on the patch cord at the connection point. The insert has an enlarged label field for a paper insert, protected with a transparent cover. The insert design provides a fastening element for fixing the incoming cable from the back side with a tie. |
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
