TWT-RM10-15P-H

The mounting frame is designed to install 10-pair TWT-LSA10-xxx connection modules in 19" cabinets and racks.

The frame allows you to install up to 15 connection modules, the maximum capacity of the frame is 150 pairs.

The frame is equipped with brackets for organizing cable flows.

The installed connection modules do not protrude beyond the front surface of the rack due to the recessed design of the frame.

Height is 3U.

Connection modules orientation is horizontal.

Most frequently asked questions and answers

What is the mounting frame for LSA blocks TWT-RM10-15P-H used for?

The mounting frame is intended for installing 10-pair TWT-LSA10-xxx blocks in 19-inch or 10-inch cabinets and racks; the 19" frame holds up to 20 blocks (maximum capacity 200 pairs) and, depending on the version, is mounted vertically or horizontally. Material: stainless steel.

TWT, LSA-PLUS disconnect block TWT-RM10-15P-H

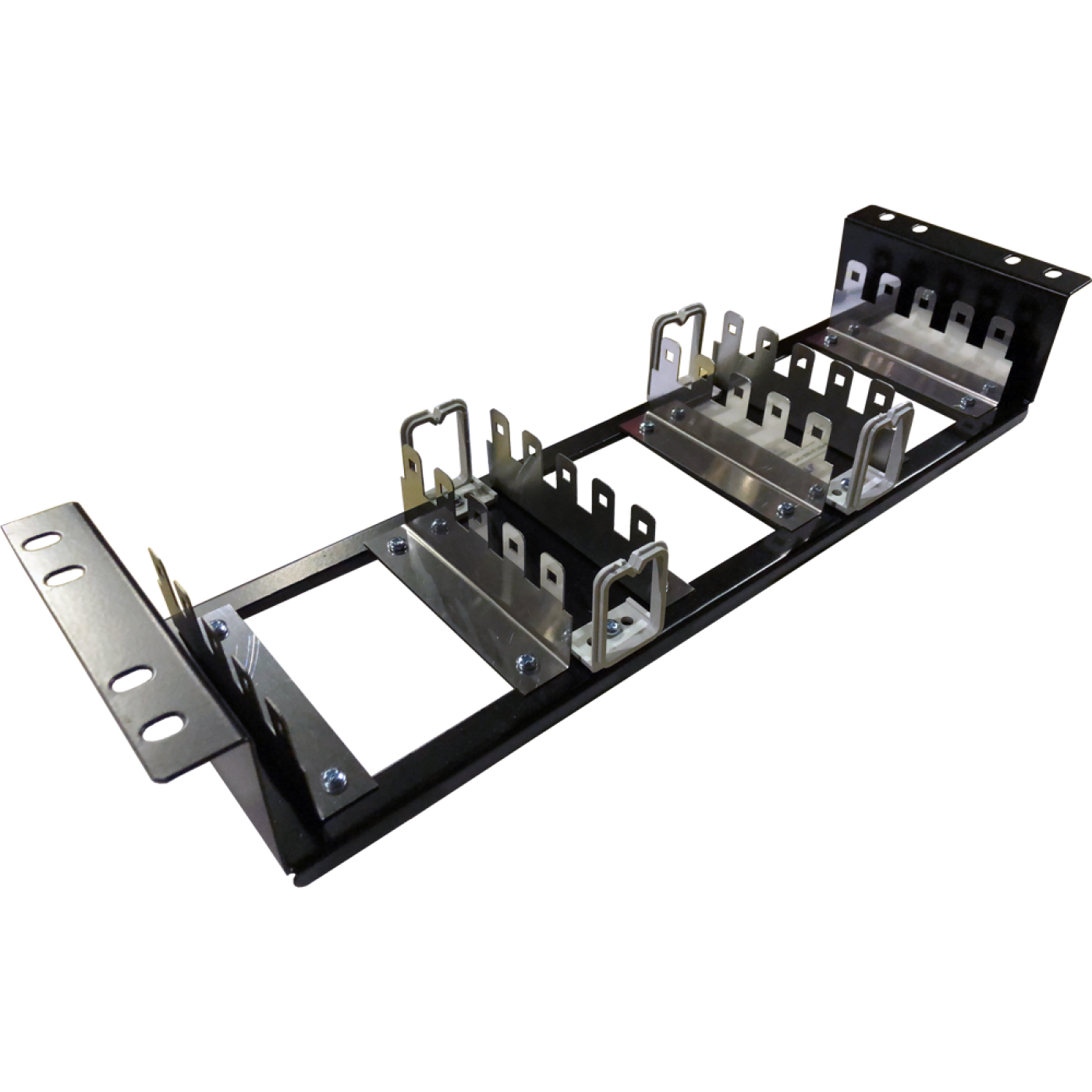

Appearance TWT-RM10-15P-H
How do I install the mounting frame for LSA blocks TWT-RM10-15P-H?

Fix the frame on the cabinet rails, install the blocks and route the cables according to the frame capacity; leave space for cable routing.

Which tool is used to terminate pairs on LSA blocks, to which TWT-RM10-15P-H belongs?

Cable pairs are terminated on LSA contacts (insulation displacement contacts) with a punch-down tool with a blade for LSA contacts: the conductors are laid into the contacts according to the colour code, and the tool presses them in and trims the excess at the same time. Do not terminate conductors with a screwdriver.

How do I label lines on LSA blocks when using TWT-RM10-15P-H?

To label lines use the hinged label frame installed over a 10-pair block or protection magazine and the numbered inserts. Write the line numbers in accordance with the design documentation and update them when re-patching.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-RM10-15P-H pcs 520 × 85 × 140 1.13 0.006188
