Water leak sensor for metered PDUs

Water leak sensor for metered PDUs. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDVMT-SNS-WATER

The sensor is designed to detect water leaks in a room. The sensor can be installed in a telecommunications closet, data center, server room, or office space.

The principle of operation is based on the electrical conductivity of water. In the event of water ingress, the sensor contacts close and the information about the actuation is sent to the monitoring device.

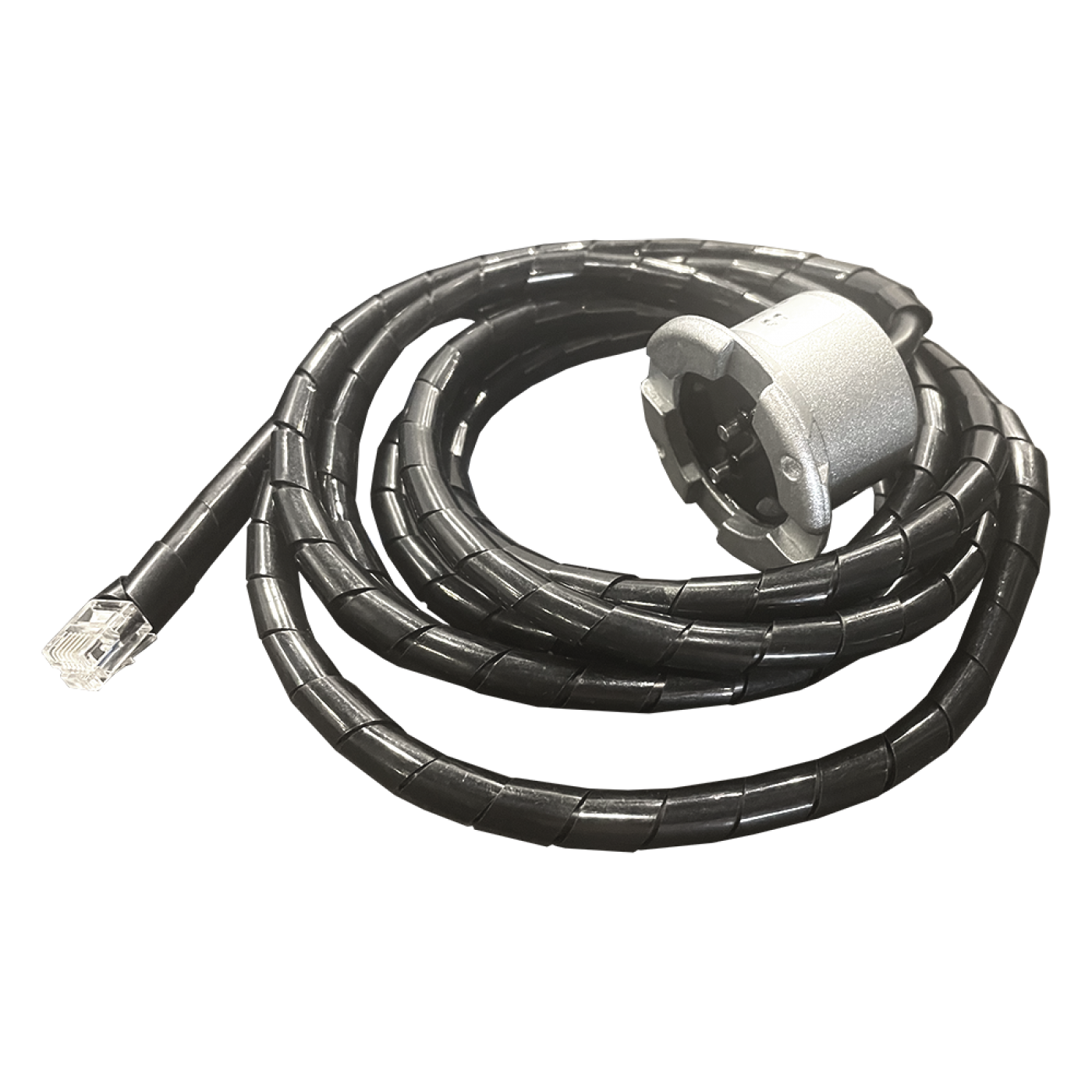

The leak sensor is an unassembled, hermetically sealed construction. Inside the metal housing there is an electrical circuit, two electrodes and an electrical cable inlet. For hermetic sealing, the whole construction is filled with epoxy resin compound. There are two electrodes built into the base with a diameter of 48 mm, which trigger the sensor when flooded. There are two mounting holes for fixing the sensor to the surface. For power supply of the sensor and transmission of control signals to the actuator, a cable is used which is hermetically inserted into the structure through the upper side.

For use with TWT-PDVMT1/TWT-PDVMT3 power distribution units.

Cord length: 2700 mm

Interface connector: RJ11


Frequently Asked Questions

What is the TWT-PDVMT-SNS-WATER sensor for?

The water-leak sensor detects water on the floor of a telecom cabinet, server room or office together with a TWT-PDVMT1 or TWT-PDVMT3 vertical outlet strip that has monitoring functions.

How does the sensor work?

It relies on water's electrical conductivity: when water bridges the two electrodes, the contacts close and an alarm signal is passed to the outlet strip.

What connector does the sensor use and how long is the cable?

Connection is made via an RJ11 connector, with a 2700 mm cable; the power/signal cable exits through the top of the housing.

What is the sensor's housing made of?

The housing is metal and non-disassemblable, with an electronic circuit and two electrodes inside, potted in an epoxy-based compound.

How is the sensor mounted?

The sensor is secured to a surface through two mounting holes.

Which outlet strips is the sensor compatible with?

The sensor is intended for use with TWT-PDVMT1 and TWT-PDVMT3 outlet strips that have monitoring functions.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDVMT-SNS-WATER pcs 125 × 125 × 80 0.3 0.00125

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
