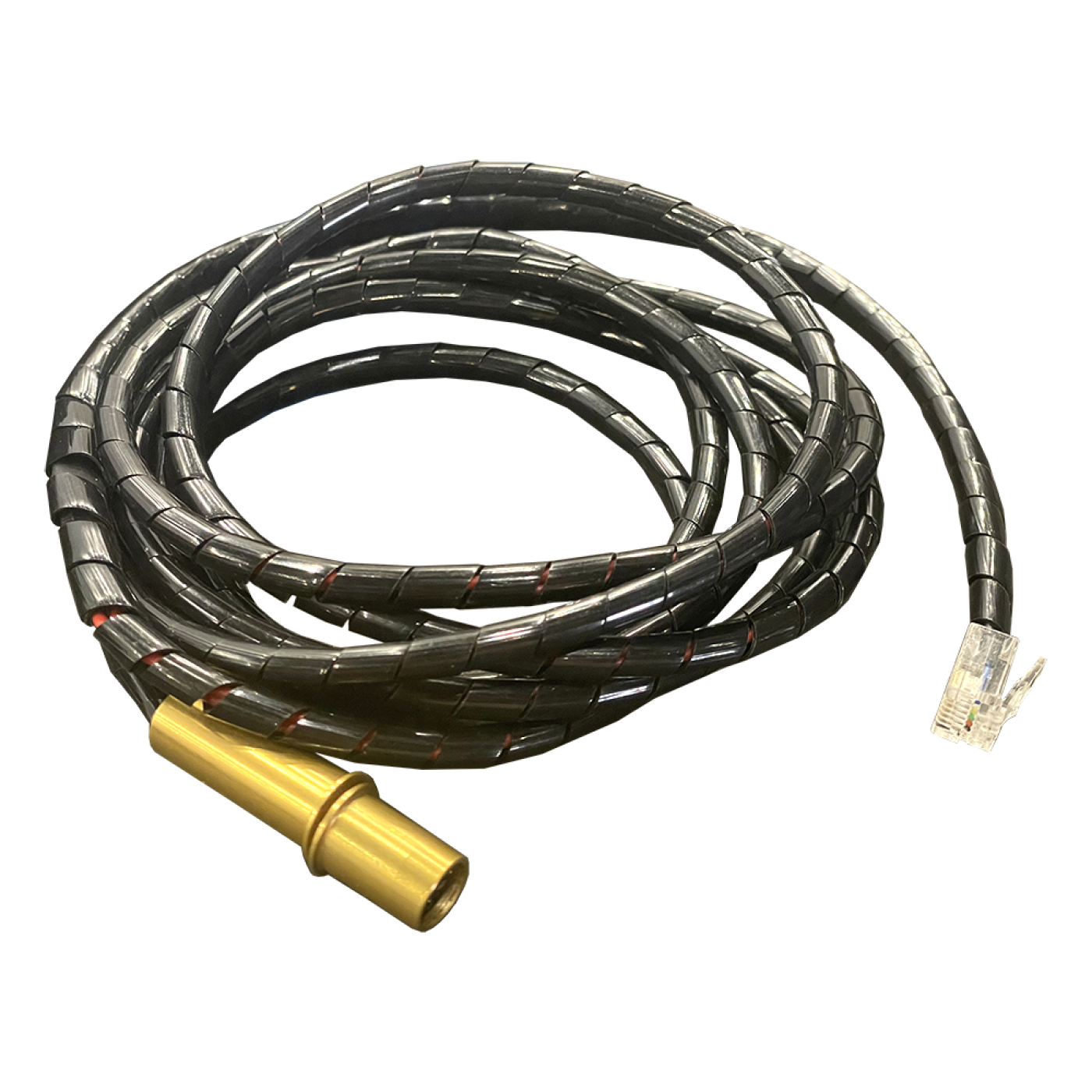

Round door contact sensor for metered PDUs
The sensor is designed for installation on a metal door or side panel of a telecommunications cabinet. It contains reed contacts ("dry contact") that close when a magnet approaches. The compact size of the sensor allows convenient placement in any enclosure.
For use with TWT-PDVMT1/TWT-PDVMT3 power distribution units.
Cord length: 2700 mm
Interface connector: RJ11
Frequently Asked Questions
What is the TWT-PDVMT-SNS-DR-RND sensor for?
The round door-open sensor monitors the state of a cabinet door or side panel together with a TWT-PDVMT1 or TWT-PDVMT3 vertical outlet strip that has monitoring functions.
How does the sensor work?
The sensor uses a reed (dry) contact: it closes when a magnet comes near and opens when the magnet moves away, which the outlet strip registers as the door opening.
What connector does the sensor use and how long is the cable?
Connection is made via an RJ11 connector, with a 2700 mm cable.
Which outlet strips is the sensor compatible with?
The sensor is intended for use with TWT-PDVMT1 and TWT-PDVMT3 outlet strips that have monitoring functions.
What is the difference between the TWT-PDVMT-SNS-DR-RND and TWT-PDVMT-SNS-DR-RCT?
The difference is the housing shape: the TWT-PDVMT-SNS-DR-RND has a round housing, while the TWT-PDVMT-SNS-DR-RCT has a rectangular one. The operating principle, RJ11 connector and cable length (2700 mm) are the same for both variants.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| TWT-PDVMT-SNS-DR-RND | pcs | 125 × 125 × 80 | 0.086 | 0.00125 |
