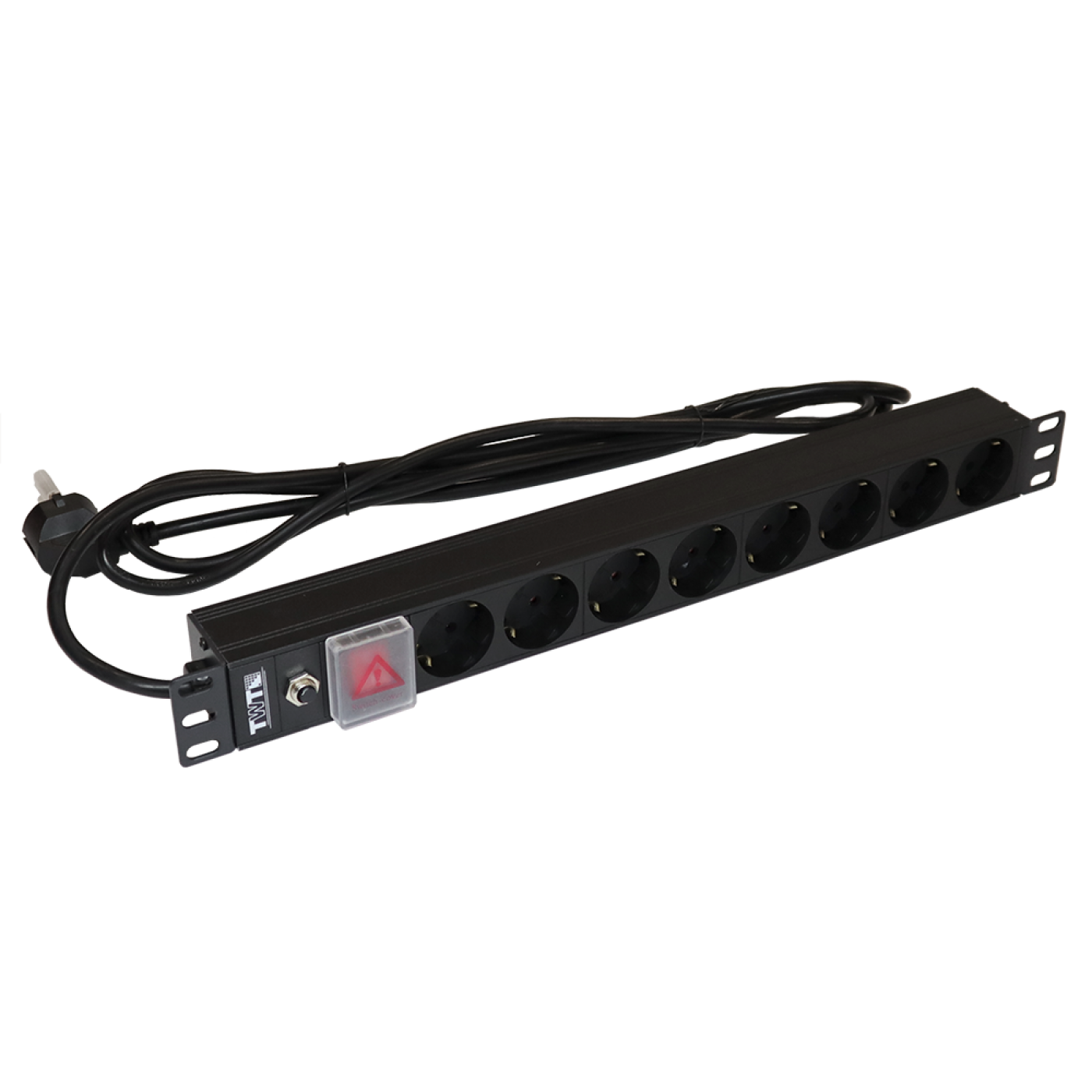

19" rack PDU, 8 outlets, 16A 250V

19" rack PDU, 8 outlets, 16A 250V. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDU19-16A8P-xx

The distribution unit is intended for power distribution and protection of computers, electronic and network equipment with Schuko plugs in telecommunication cabinets and racks.

The PDU solves the problems of insufficient length of equipment power cords, ease of access and maintenance.

The unit is equipped with a cord with a Schuko plug (DIN49441) for connecting to power mains and 8 sockets for German style plugs (DIN49440) for connecting external equipment.

The unit includes a protective circuit breaker. Sockets have protective shutters and an earth contact.

The distribution has a 1U height and can be mounted in regular 19" cabinets and racks. The power switch has a backlit.

Specifications:

  • Supply voltage is 220V
  • Total load current is not more than 16A
  • Dimensions (WxHxD) - 485x44x46 mm

Frequently Asked Questions

What is the TWT-PDU19-16A8P outlet strip used for?

It is a single-phase 19" outlet strip for installation in server cabinets and racks, distributing power to equipment with household Schuko plugs.

How many outlets does the unit have and of what type?

8 outlets of type Schuko with protective shutters and a grounding contact.

What input connector does the unit have?

The input connector is Schuko.

Does the unit have a power switch?

Yes, it has an illuminated power switch.

What protection does the outlet strip have?

The unit has a residual-current device (RCD).

What is the difference between the TWT-PDU19-16A8P-1.8 and TWT-PDU19-16A8P-3.0 variants?

The variants differ from each other only in the length of the built-in power cord — 1.8 m and 3.0 m respectively; the outlets, switch, RCD and electrical rating are the same for both variants.

What current and voltage is the unit rated for?

Single-phase, 16 A, 250 V, 50 Hz.

How is the unit mounted in the cabinet or rack?

The unit mounts horizontally in 19-inch cabinets and racks, 1U high.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDU19-16A8P-1.8 pcs 510 × 60 × 100 0.9 0.00306

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDU19-16A8P-1.8 box 520 × 400 × 310 18.9 0.06448

Product Codes (2)

  • 19" rack PDU, 1 phase with switch, 16A / 250V, 8xSchuko, 1.8 m power cord, Schuko plug
  • 19" rack PDU, 1 phase with switch, 16A / 250V, 8xSchuko, 3.0 m power cord, Schuko plug
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
