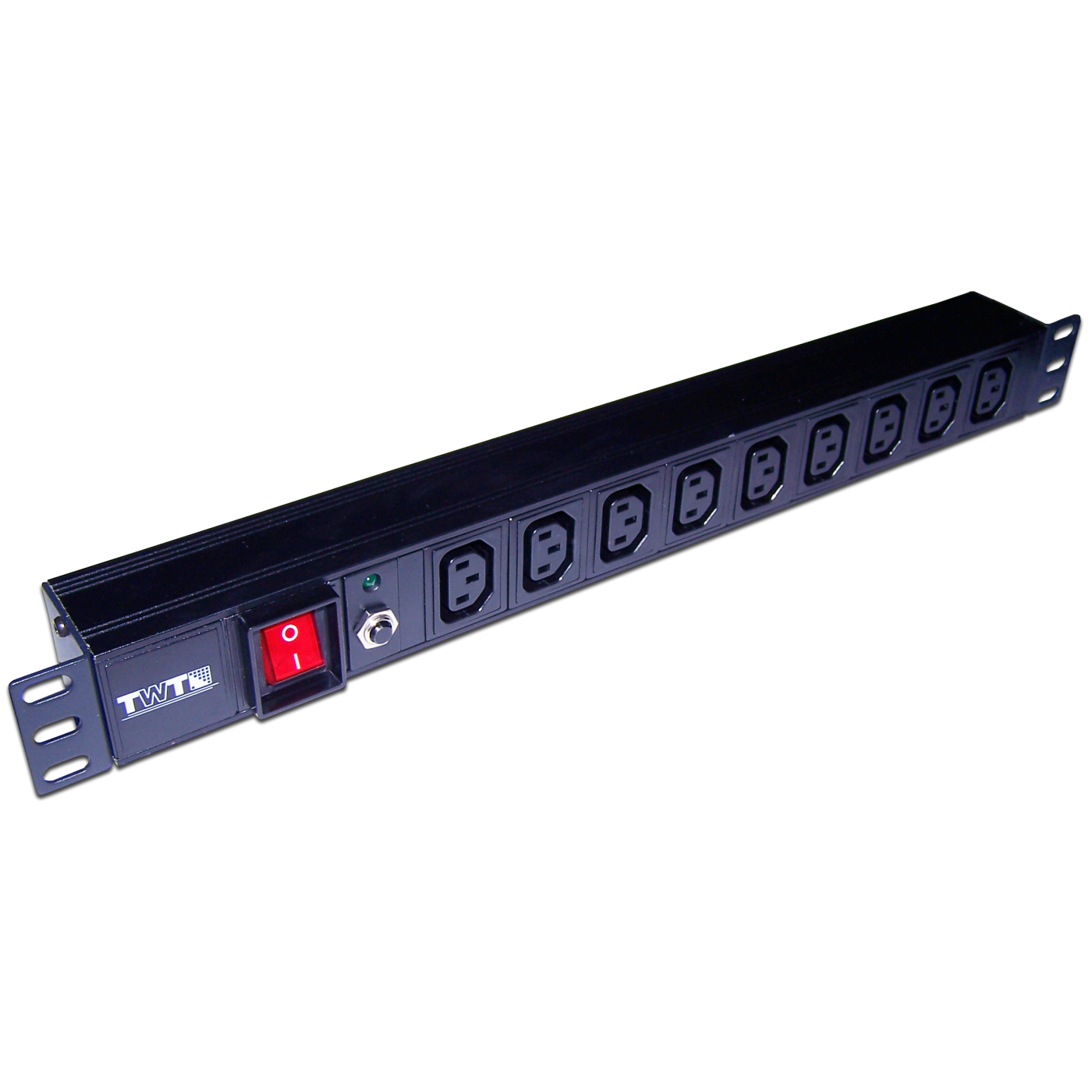

19" rack PDU, 1 phase with switch, 10A / 250V, 9xC13, without power cord, C14 inlet

19" rack PDU, 1 phase with switch, 10A / 250V, 9xC13, without power cord, C14 inlet. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDU19-10A9C3

The distribution unit is intended for power distribution and protection of computers, electronic and network equipment with C14 inlets in telecommunication cabinets and racks.

The unit has C13 sockets for connecting external equipment. The distribution unit height is 1U.

The unit includes a protective circuit breaker and a power switch with a backlit.

Total load current is not more than 10A.

Dimensions (WxHxD) - 485x44x46 mm.

Frequently Asked Questions

What is the TWT-PDU19-10A9C3 outlet strip used for?

It is a single-phase 19" outlet strip for installation in server cabinets and racks, distributing power to equipment with C14 inlets.

How many outlets does the unit have and of what type?

9 outlets of type C13.

What input connector does the unit have?

The input connector is C14.

Does the unit have a power switch?

Yes, it has an illuminated power switch.

What protection does the outlet strip have?

The unit has a residual-current device (RCD).

Does a power cord come with the unit?

No, the unit ships without a power cord — the cable for connecting to the mains must be purchased separately.

What current and voltage is the unit rated for?

Single-phase, 10 A, 250 V, 50 Hz.

How is the unit mounted in the cabinet or rack?

The unit mounts horizontally in 19-inch cabinets and racks, 1U high.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDU19-10A9C3 pcs 510 × 60 × 100 0.72 0.00306

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDU19-10A9C3 box 520 × 400 × 310 15 0.06448

Product Codes (1)

  • 19" rack PDU, 1 phase with switch, 10A / 250V, 9xC13, without power cord, C14 inlet
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
