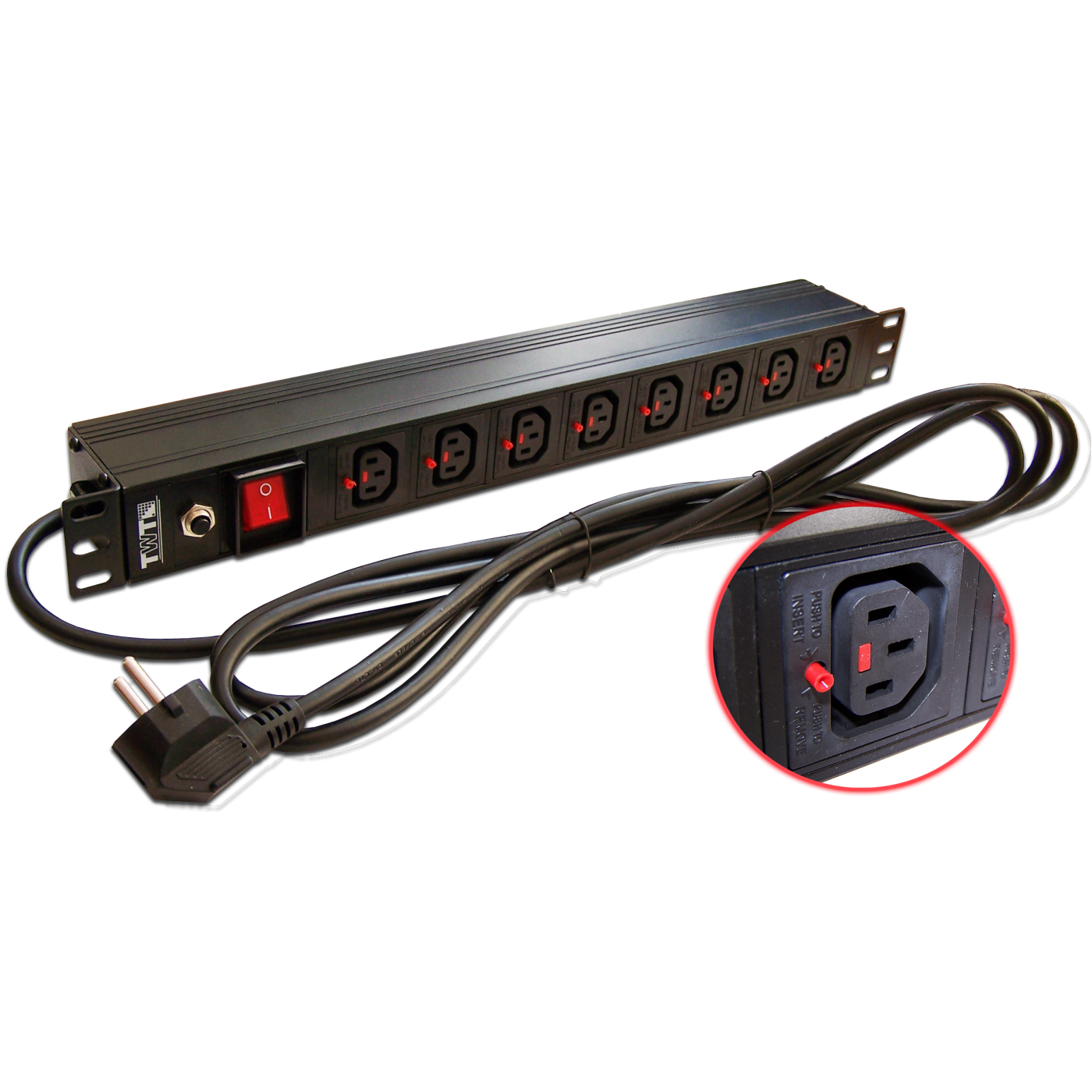

19" power distribution unit, 8 C13 connectors with lock, 10A, 250V, 3.0 m power cord

19" power distribution unit, 8 C13 connectors with lock, 10A, 250V, 3.0 m power cord. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDU-10A8C3L-3.0

The distribution unit with locks for the connected device inlets is designed for the secure connection of equipment with C14 inlets.

The connectors of the unit have mechanical locks that prevent accidental pulling out of the connected power cord. The locking mechanism is unlocked using a button located next to each connector. The unit includes a protective circuit breaker. C13 distribution unit has power switch with a backlit.

Total load current – 10A.


Frequently Asked Questions

What is the TWT-PDU-10A8C3L-3.0 outlet strip used for?

It is a 19" outlet strip for installation in server cabinets and racks, distributing power to connected equipment with C14 inlets (computers, switches and similar devices).

How many outlets does the unit have and of what type?

8 outlets of type C13 with a retention latch for the connected device's plug.

How does the outlet locking mechanism work?

Each outlet has a mechanical latch that holds the inserted plug in place to prevent accidental disconnection; a button next to the outlet releases it when unplugging.

Does the unit have a power switch?

Yes, it has an illuminated power switch.

What protection does the outlet strip have?

The unit has a residual-current device (RCD). This is not the same as surge protection: an RCD cuts power on a ground leakage fault, not on a voltage spike in the mains.

What power cord does the unit have and how long is it?

The power cord is built in and is 3.0 m long.

What current and voltage is the unit rated for?

Total load current is 10 A, voltage is 250 V.

How is the unit mounted in a rack?

The unit mounts horizontally in 19-inch cabinets and racks.
