TWT, coupler, 25-pair

TWT, coupler, 25-pair for copper structured cabling systems. LANMASTER product information, specifications and part number details.
TWT-CNS-25P/x

The cable coupler is designed to connect 25 pairs of copper conductors with a wire gauge from 23 AWG to 26 AWG. It can be used both for splicing multi-pair cables and for their branching.

Ideally suited for use with serviceable or maintenance-free couplings, including outdoor sealed couplings.

Most frequently asked questions and answers

What is the TWT-CNS-25P/x connector used for?

The 25-pair cable connector is intended for joining 25 pairs of copper conductors of 23–26 AWG (American Wire Gauge). It is used both for splicing multi-pair cables and for branching them; it is ideal for serviced or unserviced closures, including outdoor sealed closures.

TWT, coupler, 25-pair TWT-CNS-25P/x

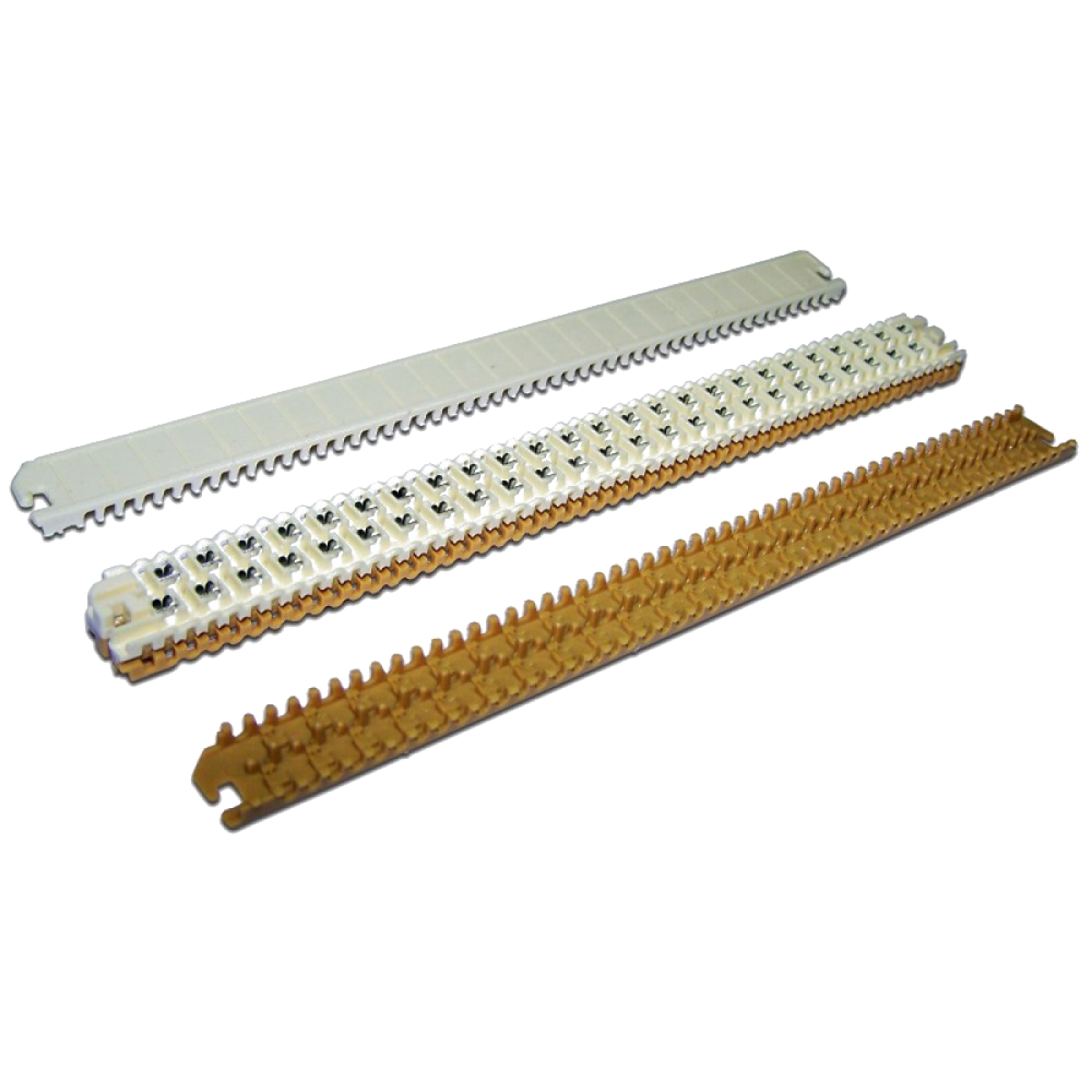

Appearance TWT-CNS-25P/x
What should I do if the product TWT-CNS-25P/x does not work or works unstably?

Check that the connectors are fully latched, the conductors are connected by the same scheme at both ends of the link and there is no open or short circuit. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-CNS-25P/B pcs 170 × 30 × 10 0.07 0.000051

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
