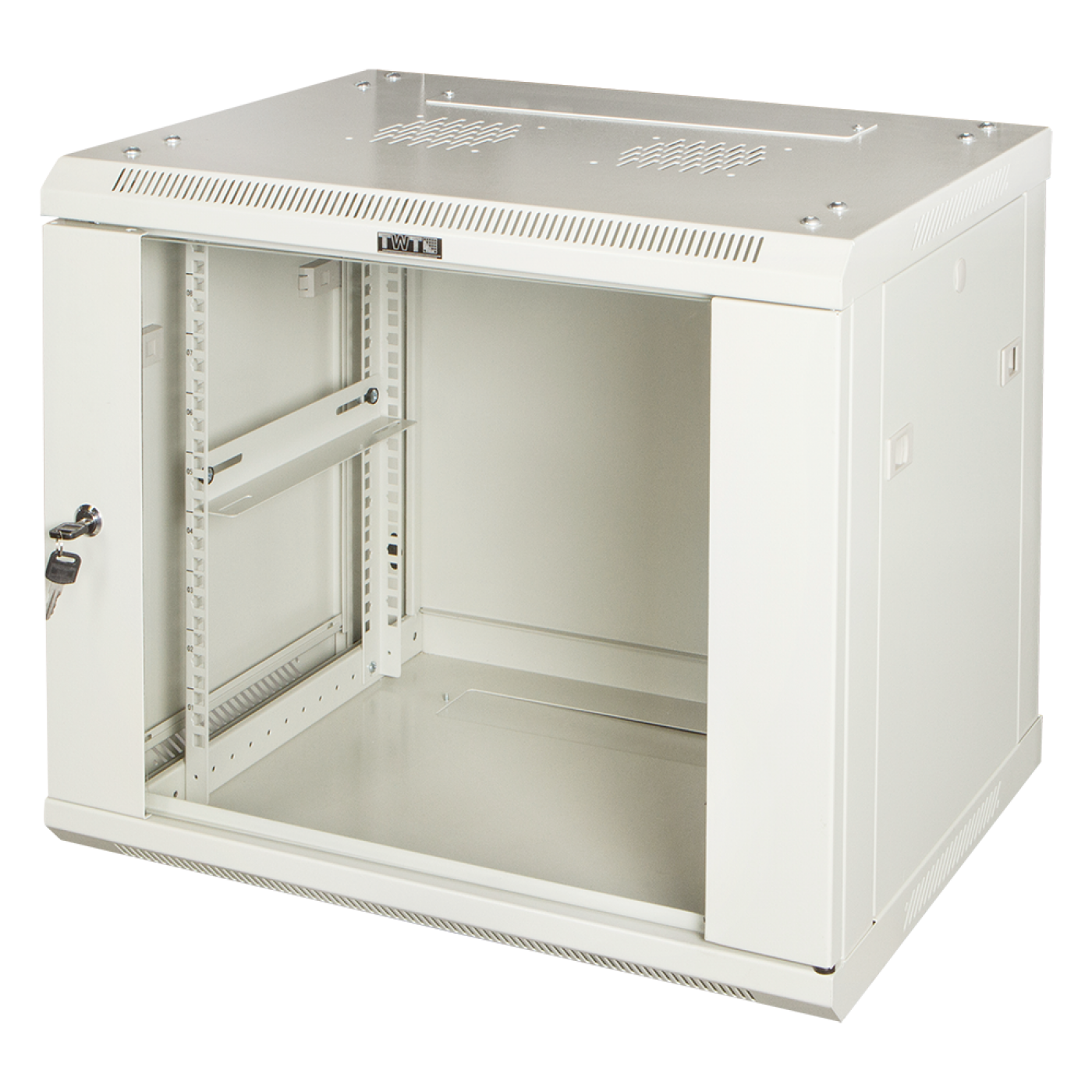

"PRO" series 19” wall enclosure with glass door (2017 model)

Product Code: TWT-CBWPG-xxU-yyy-GY

"PRO" series 19” wall enclosure with glass door (2017 model)

The “PRO” series wall enclosure is used to accommodate 19" network and telecommunication equipment. Enclosures of the 2017 model range are available in three depths: 450, 600 and 800 mm.

Installation of equipment is possible on two or four posts, cantilever shelves and 4-post shelves. Mounting rails can be installed at different depths.

The front door has tinted glass and a lock, if necessary, the door can be hanged to the other side.

The side panels are removable, fixed with plastic latches. It is possible to install TWT-CB-LOCK locks (supplied separately) on the side panels of the enclosure.

Two TWT-CBW-FAN1-BB fans (supplied separately) can be installed on the roof of the enclose, the cabinet has a cable entry hole closed with a cover in the top and bottom panels. If necessary, TWT-CBW-BP brush entries (supplied separately) can be mounted in the cable entry holes.

The enclosure is supplied unassembled. Delivery set consists of 2 packs.

Color is gray (RAL 7044, 7039).

Ingress protection is IP20.

Powder coating painting.

Cabinets comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494-1, DIN41494-7 international standards.


 Product code  Description Capacity, RMU
Dimensions, mm (DхWхH)

Usable depth, mm

Weight, kg
Max. load, kg
TWT-CBWPG-4U-6x4-GY “Pro” series 3-section wall enclosure, 4U, 600x450, glass door 4 600*450*279 350 18,9 60
TWT-CBWPG-6U-6x4-GY “Pro” series 3-section wall enclosure, 6U, 600x450, glass door6 600*450*368 350 17,5 60
TWT-CBWPG-6U-6x6-GY “Pro” series 3-section wall enclosure, 6U, 600x600, glass door6 600*600*368 500 21 60
TWT-CBWPG-6U-6x8-GY “Pro” series 3-section wall enclosure, 6U, 600x800, glass door6 600*800*368 700 23 60
TWT-CBWPG-9U-6x4-GY “Pro” series 3-section wall enclosure, 9U, 600x450, glass door9 600*450*502 350 25 60
TWT-CBWPG-9U-6x6-GY “Pro” series 3-section wall enclosure, 9U, 600x600, glass door9 600*600*502 500 25,4 60
TWT-CBWPG-9U-6x8-GY “Pro” series 3-section wall enclosure, 9U, 600x800, glass door9 600*800*502 700 25,8 60
TWT-CBWPG-12U-6x6-GY “Pro” series 3-section wall enclosure, 12U, 600x600, glass door12 600*600*635 500 29 60
TWT-CBWPG-12U-6x8-GY “Pro” series 3-section wall enclosure, 12U, 600x800, glass door12 600*800*635 700 33,4 60
TWT-CBWPG-15U-6x6-GY “Pro” series 3-section wall enclosure, 15U, 600x600, glass door15 600*600*768 500 33 60
TWT-CBWPG-15U-6x8-GY “Pro” series 3-section wall enclosure, 15U, 600x800, glass door15 600*800*768 700 40 60
TWT-CBWPG-18U-6x6-GY “Pro” series 3-section wall enclosure, 18U, 600x600, glass door18 600*600*902 500 35 60
TWT-CBWPG-18U-6x8-GY “Pro” series 3-section wall enclosure, 18U, 600x800, glass door18 600*800*902 700 45 60
TWT-CBWPG-22U-6x6-GY “Pro” series 3-section wall enclosure, 22U, 600x600, glass door 22 600*600*1079 500 44,7 60
TWT-CBWPG-22U-6x8-GY “Pro” series 3-section wall enclosure, 22U, 600x800, glass door 22 600*800*1079 700 50 60
TWT-CBWPG-27U-6x4-GY “Pro” series 3-section wall enclosure, 27U, 600x450, glass door 27 600*450*1302 350 49 60
TWT-CBWPG-27U-6x6-GY “Pro” series 3-section wall enclosure, 27U, 600x600, glass door 27 600*600*1302 500 47 60
TWT-CBWPG-27U-6x8-GY “Pro” series 3-section wall enclosure, 27U, 600x800, glass door 27 600*800*1302 700 56 60
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
