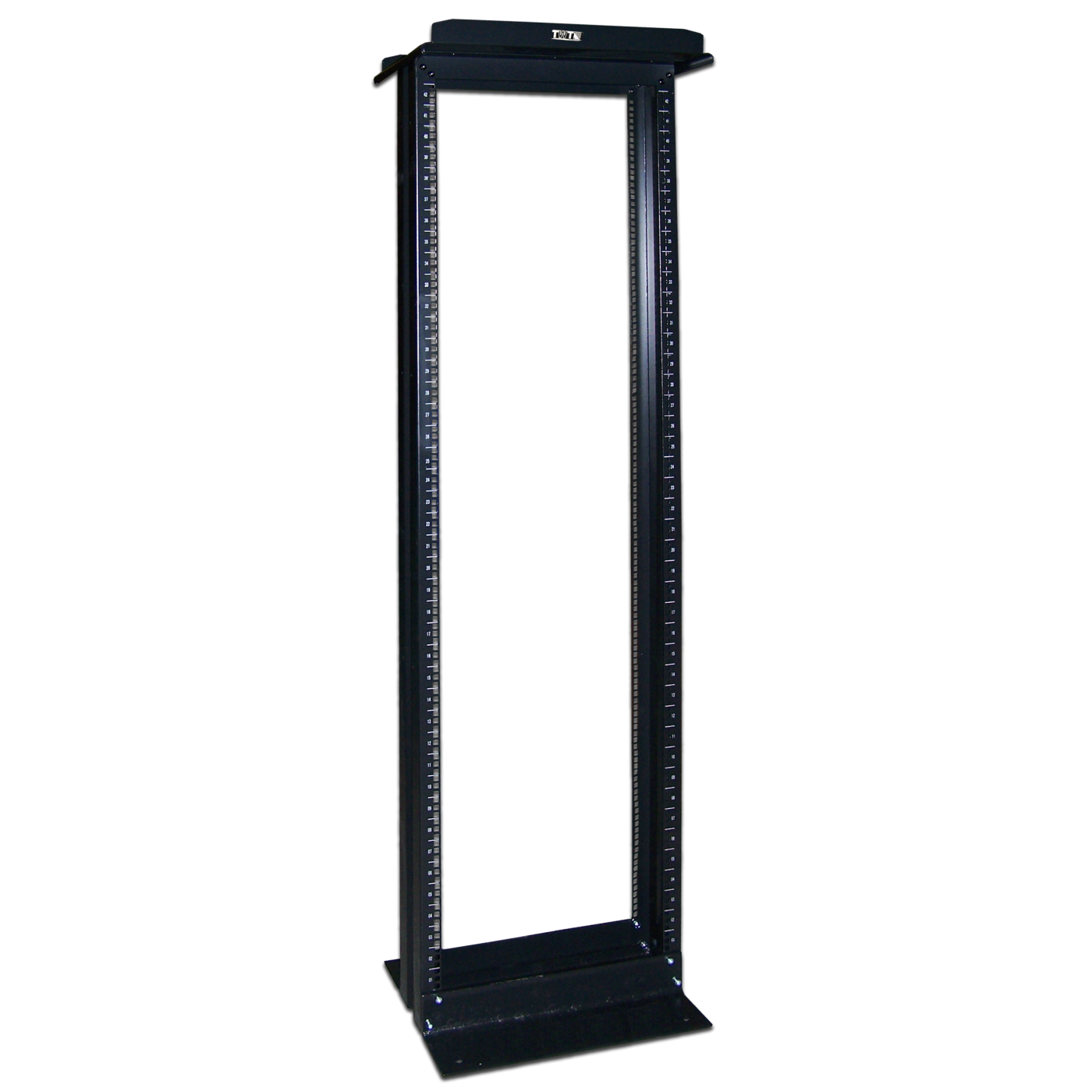

19" 2-post rack, black

19" 2-post rack, black TWT-CBF-DFR-xxU: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
Discontinued
TWT-CBF-DFR-xxU

Floor telecommunications rack is used for mounting network and telecommunications 19" equipment and two post mount (cantilevered) shelves.

The base of the rack has holes for fasten to the floor with anchors. Vertical posts have RMU markings starting from the bottom.

Single racks can be combined into a unitary construct using intermediate cable managers. The last in row racks can be equipped with side cable managers with additional side cover.

The ability to combine several racks in one row, convenient access to installed equipment from both sides, increased capacity of intermediate and side cable managers allows the use of mounting racks for compact and efficient placement of network passive equipment in server rooms and Data Centers (DCs).

The two post rack is supplied unassembled. Packaged in 2 packs.

Height options - 42U and 47U.

The maximum load per section is 300 kg.

Powder coating painting.

Color is black (RAL 9004).


The rack complies with international standards ANSI/EIA RS-310-D, IEC 297-2, DIN 41494-1, DIN 41494-7.

Rack fragment with RMU marks and cable manager
Tworacks are bayed with intermediate and two side cable managers

Two-frame section with intermediate and side cable managers

Out ofproduction, stock available

Frequently Asked Questions

What is the TWT-CBF-DFR-xxU frame used for?

This 19-inch floor-standing telecom frame mounts network and telecom equipment and front (console) shelves — used for passive network equipment in server rooms and data centers.

Is this frame still manufactured?

This product has been discontinued; it can only be purchased from remaining stock at official partners and distributors.

What heights is the frame available in?

The frame is available in 42U and 47U versions.

What load does a single frame section support?

Maximum load per frame section is 300 kg.

How does the frame attach to the floor?

The frame base has holes for securing it to the floor with anchor bolts.

Can several frames be joined in a row?

Yes, sections can be joined into a single structure using intermediate organizers, installing several frames in one row with equipment access from both sides.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-CBF-DFR-47U pcs 2300 × 160 × 540 19.2 0.19872

Product Codes (2)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
