Grounding strap kit for TWT-CBB cabinets
The earthing kit consists of a set of connecting wires with fasteners for electrical earthing of the “Business” series cabinet structural elements.
Each structural element of the cabinet (frame, side panels, door) has a special grounding terminal.

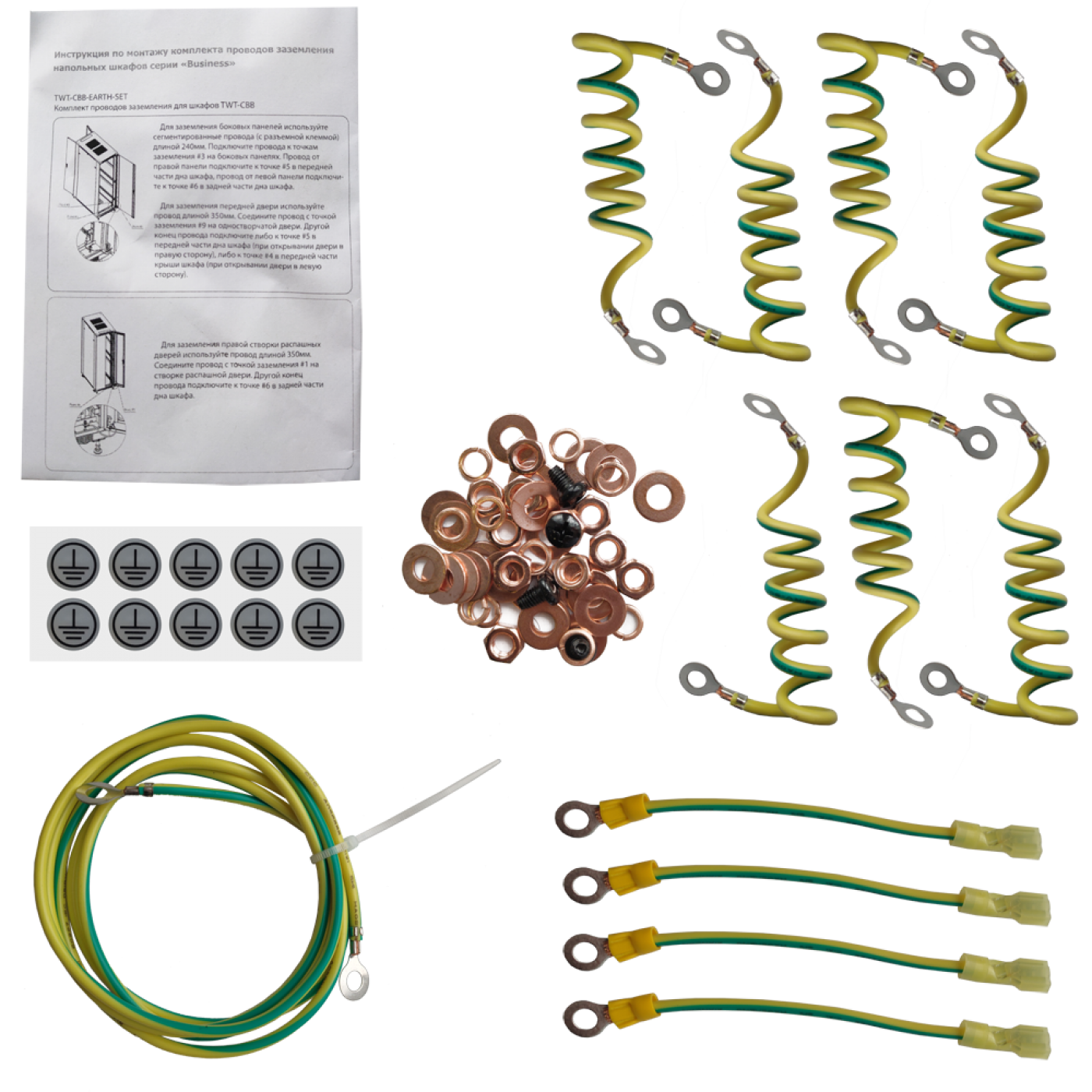

Kit includes:
Wires:
- 1.5 meter – 1 pc,
- 0.35 meter – 7 pcs,
- 0.24 meter with spade quick splice terminals (for connecting side panels) – 2 pcs
Fasteners:
- Copper-plated hex nut M6 – 11 pcs,
- Copper-plated washer M6 – 22 pcs,
- Copper-plated spring washer M6 – 11 pcs,
- Self-tapping screw – 4 pcs.
The fasteners included in the kit (nuts and washers) are made of steel and have a copper-plated protective coating.
All wires from the kit are terminated with a ring terminal. The exception is two wires intended to ground the removable side panels of the cabinet. These wires have ring terminal from the one side and spade quick splice terminal on the other side.
Frequently asked questions and answers
What is the TWT-CBB-EARTH-SET kit designed for?
The grounding wire kit electrically bonds the structural parts of a Business series cabinet — the frame, side panels, and door — each with its own dedicated grounding contact.
What is included in the kit?
The kit includes one 1.5 m wire, seven 0.35 m wires, two segmented 0.24 m wires for connecting the removable side panels, and M6 hardware: 11 nuts, 22 washers and 11 lock washers with a copper-plated protective coating, plus 4 self-tapping screws.
How do the segmented wires for the side panels connect?
Each segmented wire has terminal #1 on one end and terminal #2 on the other, allowing the connection to be separated when the side panel is removed.
Which cabinets is the kit compatible with?
The manufacturer states compatibility with Business series floor cabinets — TWT-CBB-xxU-6yy (600 mm wide) and TWT-CBB-xxU-8yy (800 mm wide).
What is the wire gauge in the kit?
All wires in the kit are fitted with screw-type lugs (M6 hardware is included).
Does the cabinet itself still need to be grounded to the site loop?
Yes, the kit bonds the cabinet's parts together, but connecting the cabinet as a whole to the site's grounding loop is done separately, as required by the project.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| TWT-CBB-EARTH-SET | pcs | 160 × 160 × 40 | 0.106 | 0.001024 |
