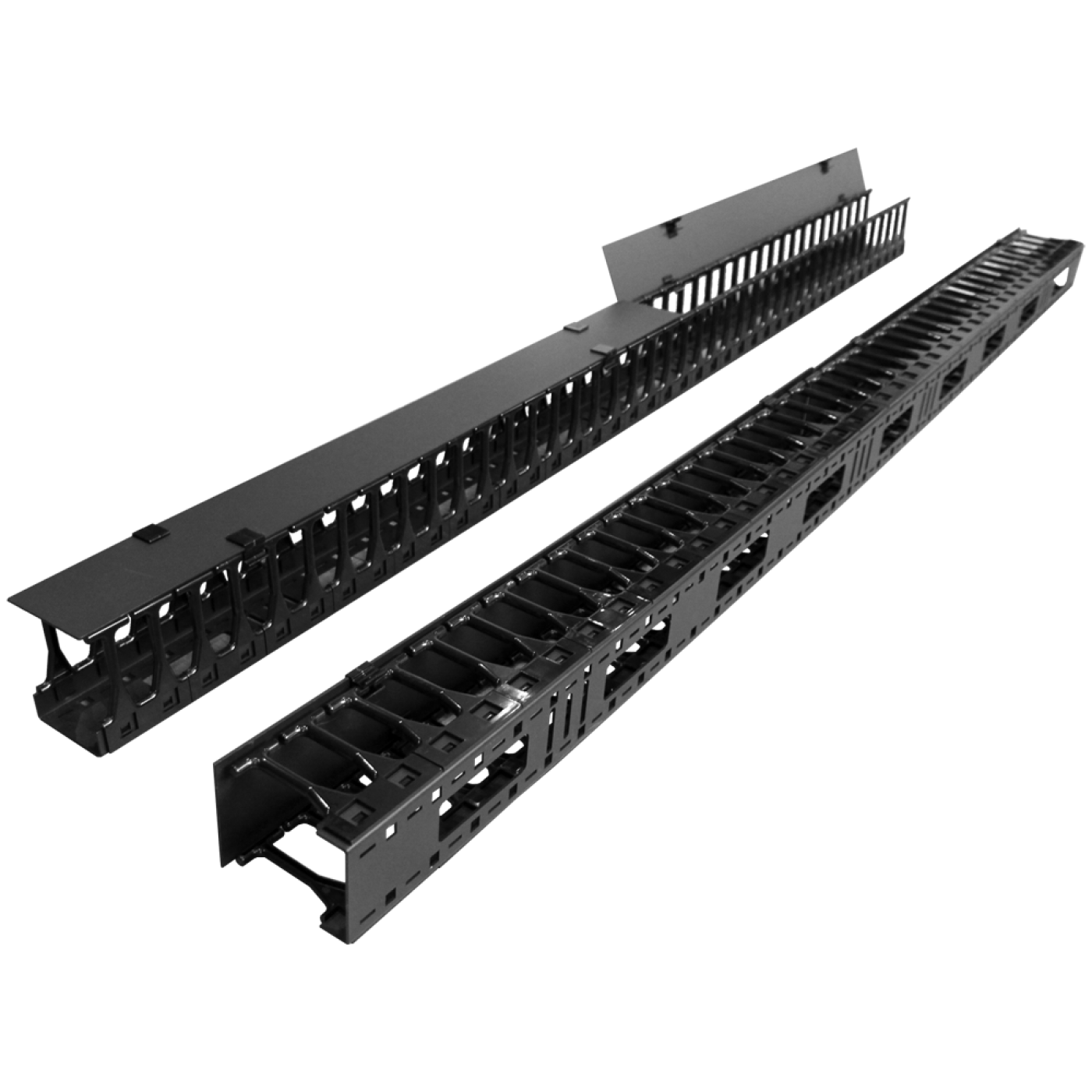

High-capacity vertical cable managers for Business cabinets, 2 pcs., black

Product Code: TWT-CBB-DVO-xxU/x

High-capacity vertical cable managers for Business cabinets, 2 pcs., black

The vertical cable manager is designed to organize vertical cable runs in 800 mm wide TWT cabinets of the “Business” series.

Compared to the standard vertical managers included in the 800mm wide cabinets, this type of organizer has a higher capacity and provides cable management at the level of each RMU.

The cable manager has openings for cable entry at the back, top and bottom. The cable flow is carried out on the sides through a system of supporting "fingers" located by 1U increments. The supporting elements are made of reinforced plastic and have end stops that prevent the laid cables from falling out. The rounded surface of the "fingers" protects the cables’ jacket from damage and provides the required bending radius. The front part of the manager is equipped with a hinged plastic cover which is fixed with latches. The cover is divided into two parts in height.


The manager can be installed on the side surfaces of mounting spacers (usual installation) or on the cabinet load-bearing frame between the door and 19” rails.

It is recommended to use standard M6 screws with self-locking nuts for fasten the cable managers.

The kit includes two cable managers.

Made of a metal and reinforced ABS plastic.

Powder coating painting.

Color is black (RAL 9004).

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (6)

Code Name
TWT-CBB-DVO-42U/L 175 mm wide and 42U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
TWT-CBB-DVO-47U/L 175 mm wide and 47U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
TWT-CBB-DVO-42U/M 155 mm wide and 42U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
TWT-CBB-DVO-42U/S 112 mm wide and 42U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
TWT-CBB-DVO-47U/M 155 mm wide and 47U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
TWT-CBB-DVO-47U/S 112 mm wide and 42U high vertical cable managers with plastic fingers for 800 mm wide Business cabinets, 2 pcs., black Add to list
