Cable TWT FTP, 4 pairs, Cat.6, ng(A)-LS, IEC 60332-3, 305 meters, purple

Cable TWT FTP, 4 pairs, Cat.6, ng(A)-LS, IEC 60332-3, 305 meters, purple

Product Code: TWT-6FTP-NGLS

Cable TWT FTP, 4 pairs, Cat.6, ng(A)-LS, IEC 60332-3, 305 meters, purple
Model range

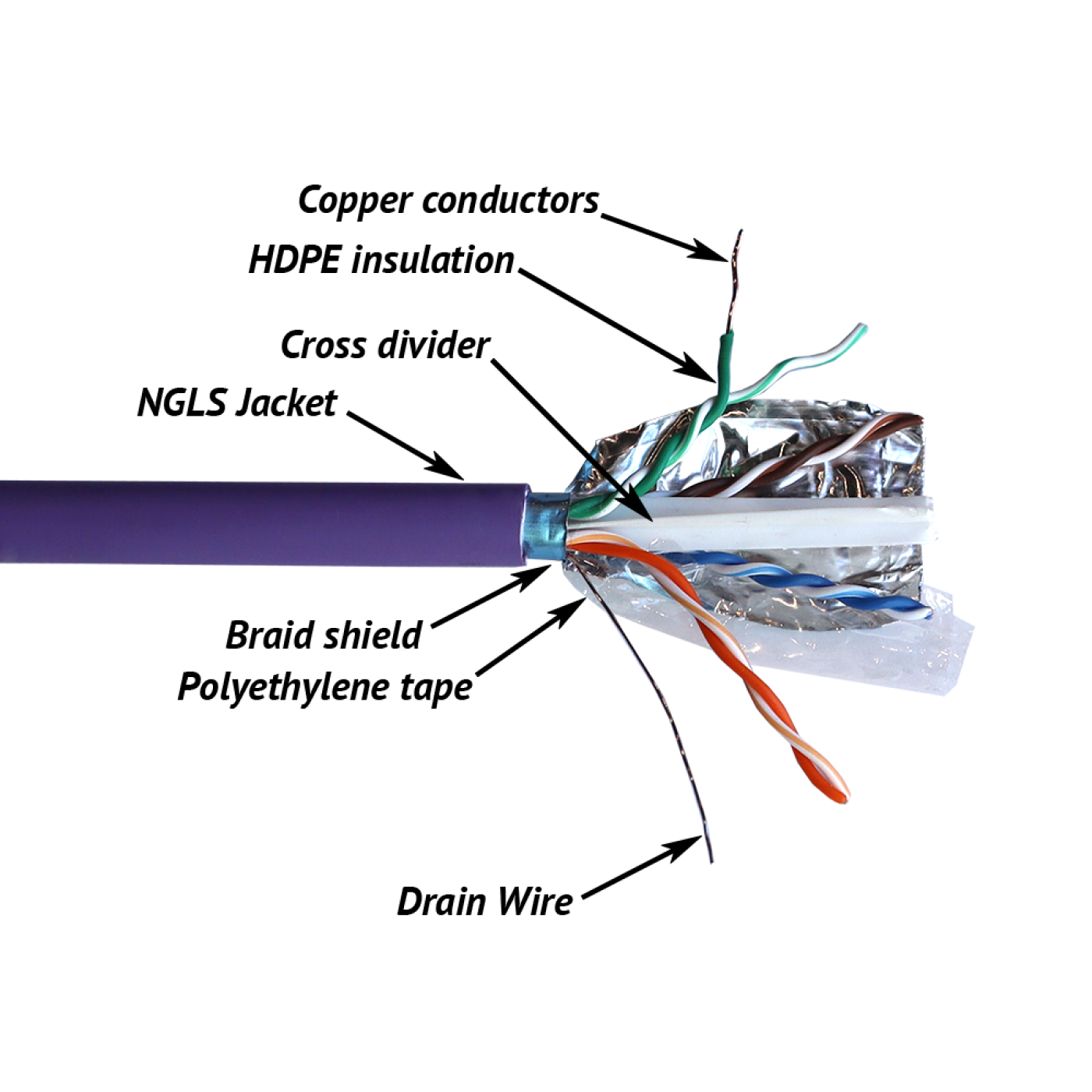

The cable consists of 4 pairs of single copper conductors.

The diameter of the conductor is 23AWG.

Each conductor protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.

4 twisted pairs wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common foil screen and NGLS jacket.

SpecificationValue
Jacket ColorPurple
Jacket Materialng(A)-LS
Insulation MaterialHDPE (high density polyethylene)
Conductor TypeSolid
Conductor Gauge23 AWG
Cable Diameter7.8 ±0.3 mm
Nominal velocity propagation (NVP)67 % at 100 MHz
Cable Length per Box305 m
Operating Temperature-20 ºC to +75 ºC
Regulatory Certifications

ETL VERIFIED

Regulatory Compliance

TIA/EIA 568-D.2 cat. 5E,

ISO/IEC 11801-1:2017,

EN 50173

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-6FTP-NGLS Cable TWT FTP, 4 pairs, Cat.6, ng(A)-LS, IEC 60332-3, 305 meters, purple Add to list
