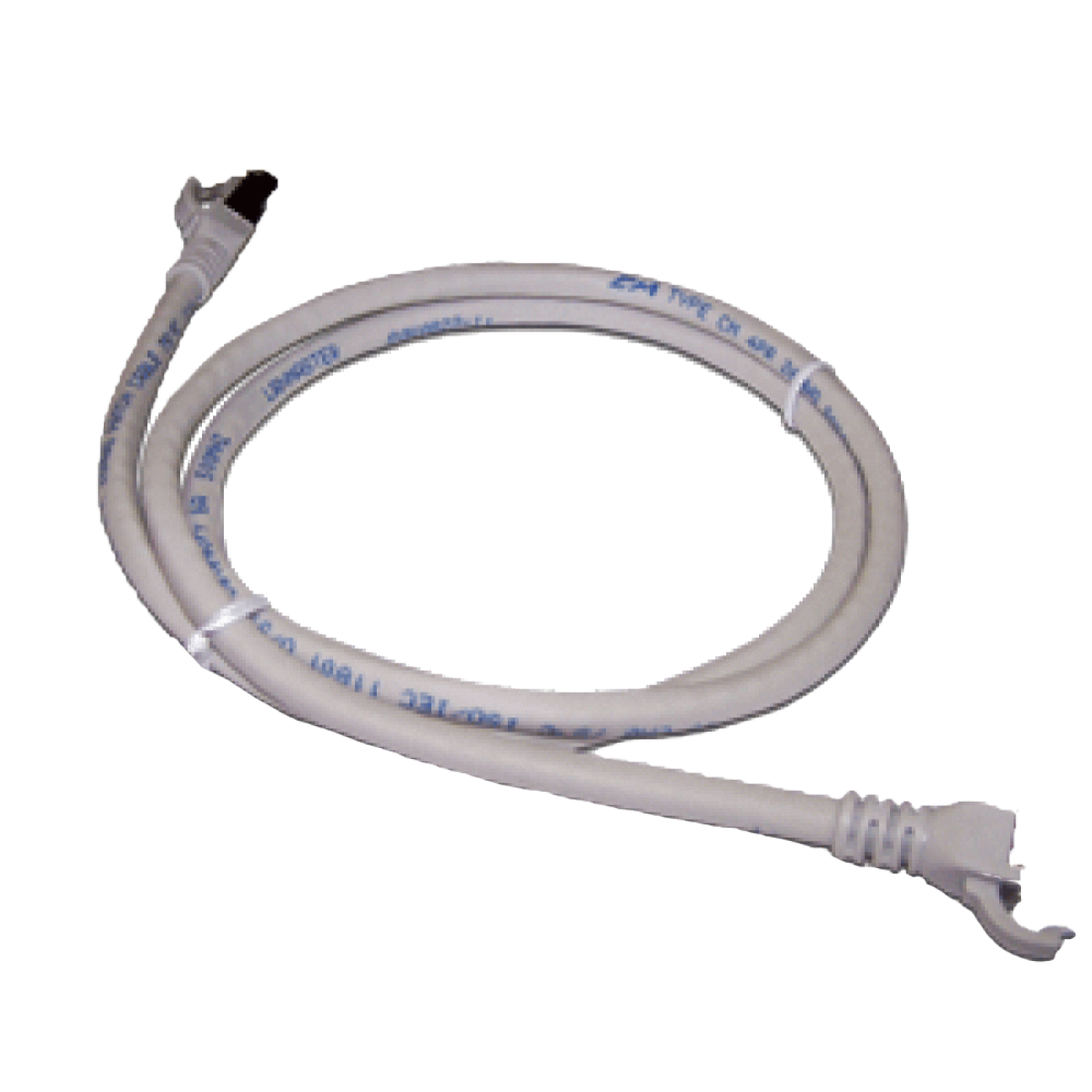

LANMASTER FTP cat. 6A patch-cord

LANMASTER FTP cat. 6A patch-cord

Product Code: LAN6A-S45-45-XX-XX

LANMASTER FTP cat. 6A patch-cord
Model range

Patch cords is category 6A and fully comply with ISO/IEC 11801 standards.
The junction between the RJ-45 plug and the cable is filled with a plastic to ensure a strong connection between them, such a connection is called molded.
Special side ribs are provided at the molded part of the plug to protect the locking latch of the RJ-45 connector from damage and breakage. This solution does not interfere with pressing the latch.
The plug has flexible strain relief boot, which provides a given cable bending radius during operation.

Color options:

White - WH

Grey - GY

Yellow - YL

Orange - OR

Green - GN

Red - RD

Blue - BL

Brown - BR

Black - BK

Patch cords are available in various lengths:

  • 0.5 m
  • 1.0 m
  • 1.5 m
  • 2.0 m
  • 3.0 m
  • 5.0 m
  • 7.0 m



Jacket material

PVC (polyvinylchloride)

Conductor diameter

26 AWG

Conductor type

Stranded

Nominal velocity of propagation

67%

Compliant with

TIA/EIA 568-C.2 cat. 6


Out of production, replaced by: LAN-PC45/S6A-XX-XX

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (3)

Code Name
LAN6A-S45-45-0.5-GY Патч-корд LANMASTER FTP кат.6A, 0.5 м, серый Add to list
LAN6A-S45-45-2.0-GY Патч-корд LANMASTER FTP кат.6A, 2.0 м, серый Add to list
LAN6A-S45-45-5.0-GY Патч-корд LANMASTER FTP кат.6A, 5.0 м, серый Add to list
