LANMASTER, Category 6, 110 wiring block
32-pair 110 wiring block is designed for terminating cables of various SCS subsystems on it and connecting network equipment to each other with jumpers or patch cords.
Meets all category 6 requirements.It is mounted on a wall with brackets. The brackets can be removed if necessary. To do this use the instructions.
The key difference of this block from wiring blocks of category 5e is the increased inter-pair distance, both on the wiring block itself and in connecting blocks.
Please note that the components of category 5e wiring blocks and category 6 blocks are not compatible with each other!

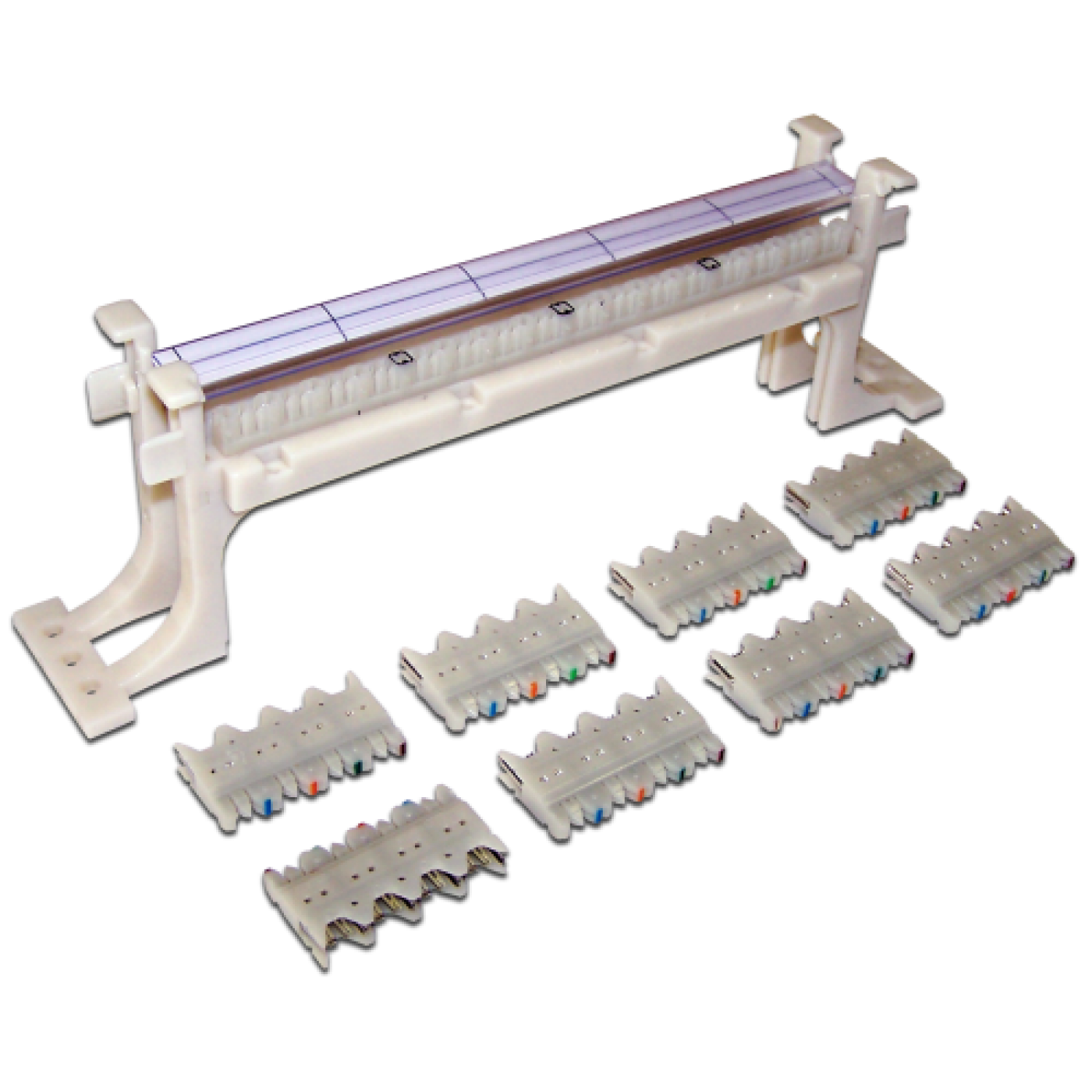

The kit includes:
- Wiring block - 1 pc.
- 4-pair connecting block - 8 pcs.
- Label holder - 1 pc.
- Paper strip for labeling - 1 pc.


The grooves into which the wires are placed have color marks every 5 pairs for ease of installation.
For connecting to 110 category 6 wiring blocks, it is necessary to use special 110-type category 6 patch cords: 110-110 or 110-RJ45.
To streamline cable flows and ease of maintenance it is recommended to install LANMASTER cable managers together with wiring blocks.
Most frequently asked questions and answers
What is the LAN-WS110-32FT/6 cross-connect used for?
The 32-pair 110 cross-connect is intended for terminating cables of various SCS (structured cabling system) subsystems and connecting parts of the network to each other with jumpers or patch cords. Mounted on a wall on plastic mounting legs (the legs can be removed if necessary). It complies with all requirements of category 6.
How does the category 6 LAN-WS110-32FT/6 cross-connect differ from a category 5e one?
The key difference is the increased distance between pairs, both on the cross-connect itself and in the punch-down modules. Therefore components of category 5e and category 6 cross-connects are not interchangeable: use blocks and cable organizers that match the category of the cross-connect.
How do I terminate a cable on the LAN-WS110-32FT/6 cross-connect?
Lay the cable pairs in the slots of the cross-connect contact strip (the slots have colour marks every 5 pairs), then install the connecting blocks and punch them down with a 110-type impact tool. Connections are made with jumpers or patch cords, and each pair can be switched separately.
What is included in the LAN-WS110-32FT/6 cross-connect package?
The package includes the cross-connect, connecting blocks (4-pair and 5-pair), marking holders, paper marking strips and fasteners; the exact contents are given on the product page.
How do I label lines on the LAN-WS110-32FT/6?
Use the marking holder and paper strips supplied in the package (or marking inserts) and write the line numbers in accordance with the design; update the records when re-patching.
What should I do if the product LAN-WS110-32FT/6 does not work or works unstably?
Check that the connectors are fully latched, the conductors are connected by the same scheme at both ends of the link and there is no open or short circuit. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-WS110-32FT/6 | pcs | 320 × 130 × 65 | 0.257 | 0.002704 |
