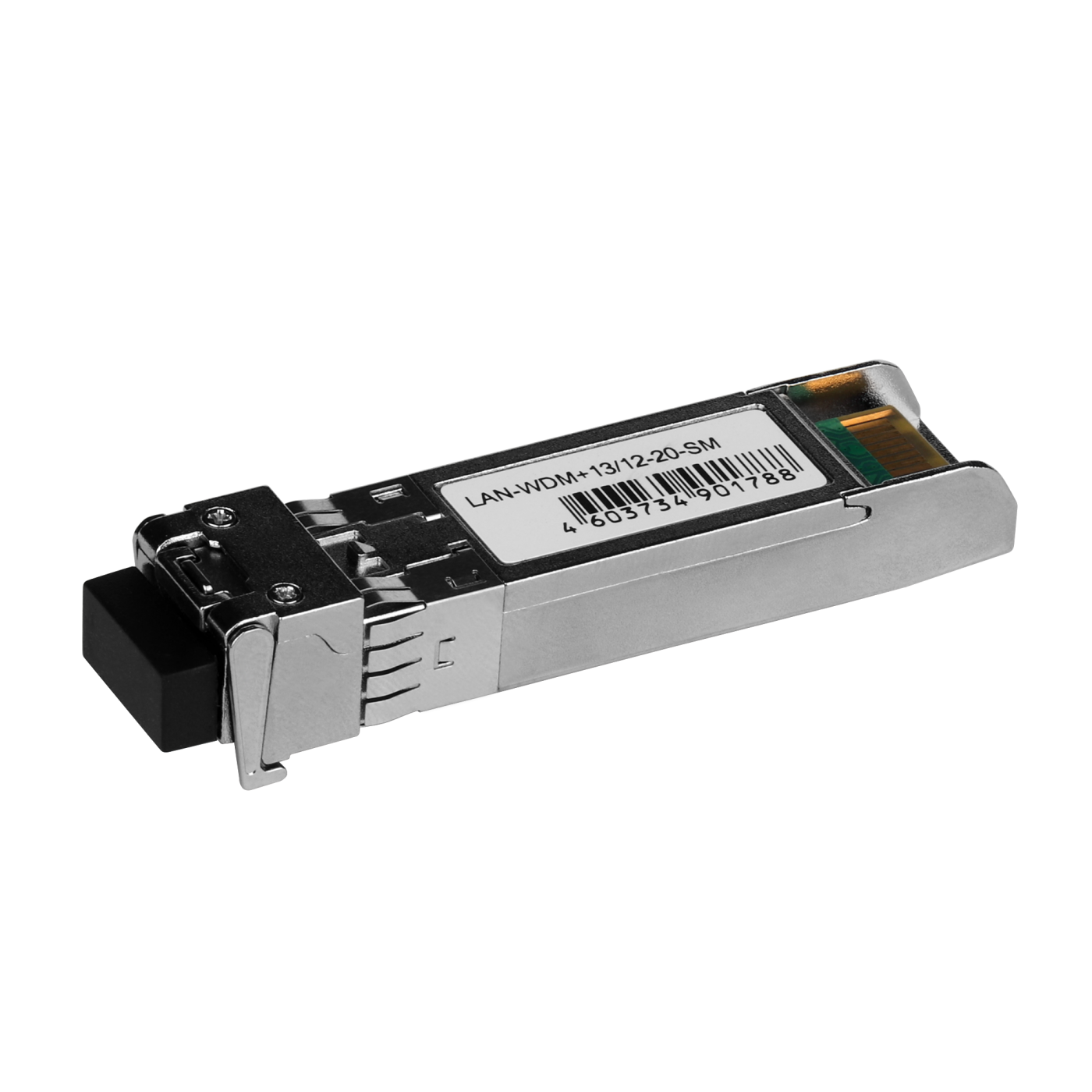

SFP+ WDM 10GBASE-LR/LW module, LC, Tx/Rx: 1330/1270nm, 20km, Cisco

Product Code: LAN-WDM+13/12-20-SM

SFP+ WDM 10GBASE-LR/LW module, LC, Tx/Rx: 1330/1270nm, 20km, Cisco

SFP modules for work over one single-mode fiber using WDM technology. This method of operation provides significant savings in the cost of renting or laying fibers.

The module provides data transfer rates up to 10 Gbps using 10GBASE-LR/LW Ethernet technology when operating in Full Duplex mode over a single fiber.

SFP modules support hot-swap mode and can have DDM (Digital Diagnostic Monitoring) function, with which you can monitor various parameters of the module in real time.

This module is used in tandem with LAN-WDM+12/13-20-SM.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-WDM+13/12-20-SM SFP+ WDM 10GBASE-LR/LW module, LC, Tx/Rx: 1330/1270nm, 20km, Cisco Add to list
