LANMASTER, white

LANMASTER, white for copper structured cabling systems. LANMASTER product information, specifications and part number details.
LAN-WA-P2XX-WH

LANMASTER, white. Product for LANMASTER copper structured cabling systems. Use according to the project design and product specifications.

Most frequently asked questions and answers

What is the adapter frame or blank LAN-WA-P2XX-WH used for?

Adapter frames are intended for mounting modules of the French Mosaic standard in floor towers and wall blocks; the double blank is installed in place of unused adapter frames.

LANMASTER, white LAN-WA-P2XX-WH

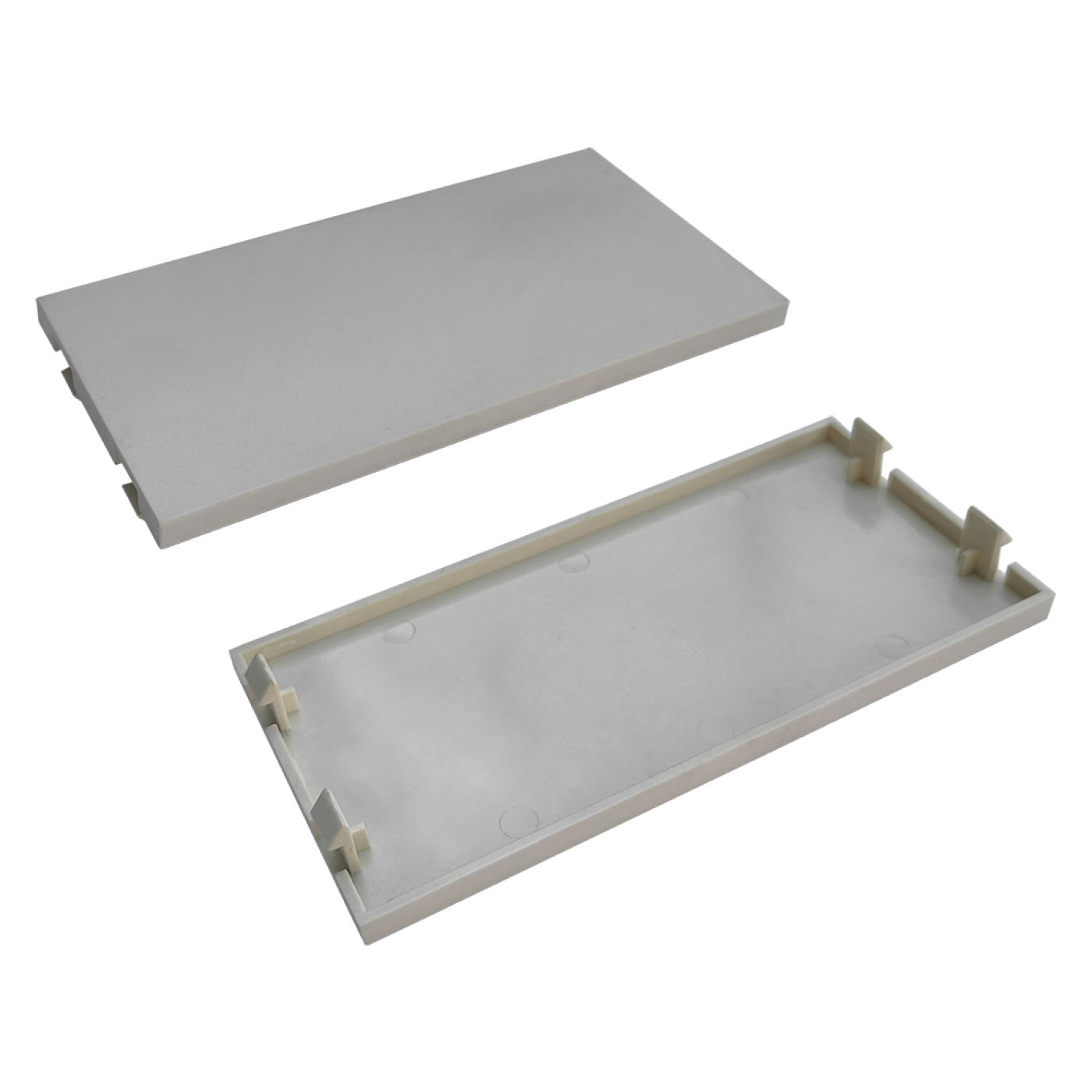

Appearance LAN-WA-P2XX-WH
How do I install the adapter frame or blank LAN-WA-P2XX-WH?

Install the frame in a tower or block position until it locks and fit Mosaic modules in it, or a blank if the position is not used.

Which modules are installed in the LAN-WA-P2XX-WH?

The mounting positions of the product are designed for modules and inserts of the French Mosaic standard (for telecommunication ports, power outlets and multimedia connectors) or Keystone modules if this is stated in the name. Select modules according to the size of the mounting positions.

What should I do if the product LAN-WA-P2XX-WH does not lock in place or works incorrectly?

Check that the product is installed all the way, the latches have engaged and the size and version match the mounting position. Make sure the cables are terminated by the same scheme at both ends of the link and have no open or short circuit; reinstall the product or redo the termination if necessary.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-WA-P2XX-WH pcs 110 × 10 × 50 0.012 0.000055

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
