22.5x45 Mosaic insert with 3xRCA Composite Video & Stereo Audio, white

22.5x45 Mosaic insert with 3xRCA Composite Video & Stereo Audio, white

Product Code: LAN-WA-LP-3RCA-WH

22.5x45 Mosaic insert with 3xRCA Composite Video & Stereo Audio, white
Model range

The front panel is designed to organize a connection point for composite video and stereo audio.

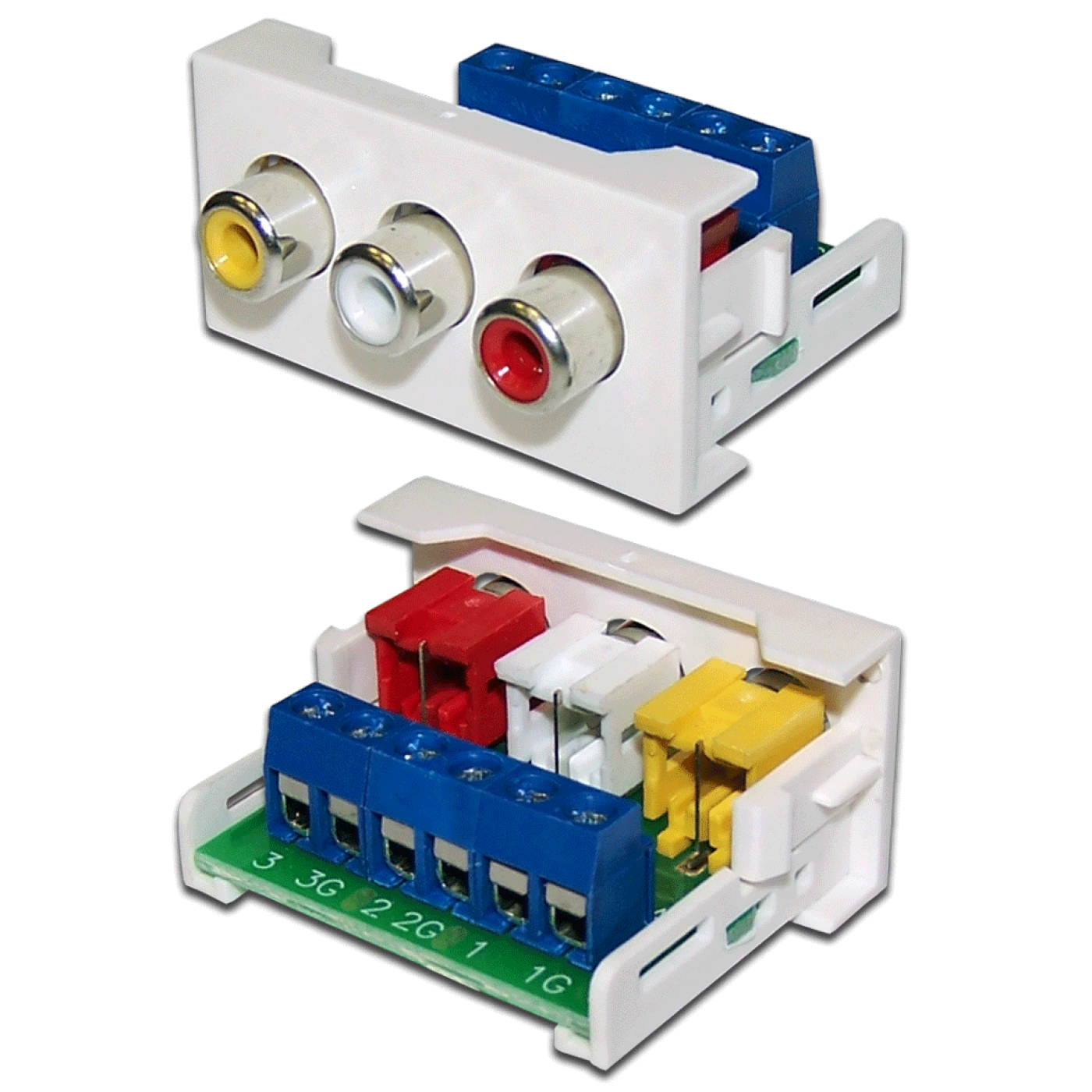

On the front side, the panel is equipped with RCA “tulip” female connectors (with yellow, red and white channel markings). Standard colors for connector are yellow for video, white for mono or left channel for stereo audio, red for right channel for stereo audio. Termination of the cable from the rear side of the panel is made using a screw termination block, according to the attached signal distribution diagram.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

Dimensions


Цоколевка


Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
