LANMASTER, Mosaic insert, 2-pair, white

LANMASTER, Mosaic insert, 2-pair, white for copper structured cabling systems. LANMASTER product information, specifications and part number details.
LAN-WA-LP-2SPK-WH

LANMASTER, Mosaic insert, 2-pair, white. Product for LANMASTER copper structured cabling systems. Use in outlets applications according to the project design and product specifications.

Most frequently asked questions and answers

What is the Mosaic speaker insert LAN-WA-LP-2SPK-WH used for?

The Mosaic-format speaker insert is intended for connecting loudspeaker systems: speaker connectors are brought to the faceplate while the wires are connected from the rear.

LANMASTER, Mosaic insert, 2-pair, white LAN-WA-LP-2SPK-WH

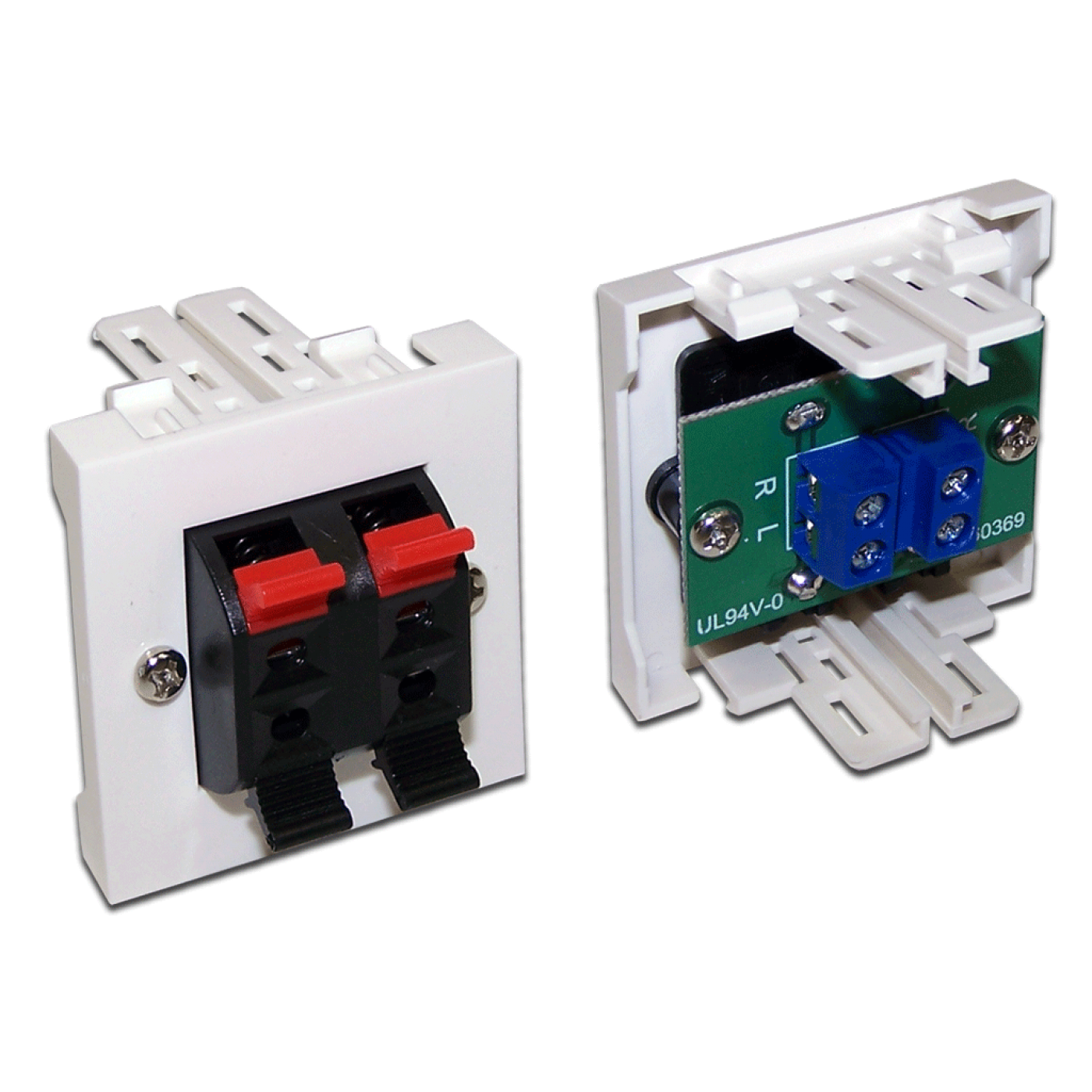

Appearance LAN-WA-LP-2SPK-WH
How do I install the Mosaic speaker insert LAN-WA-LP-2SPK-WH?

Install the insert in the frame or box until it clicks, connect the speaker wires from the rear observing polarity and connect the speakers to the front connectors.

Which frames and boxes is the LAN-WA-LP-2SPK-WH insert installed in?

The Mosaic-format insert (45×45) is installed in the mounting positions of frames, boxes, towers and outlet blocks of the French Mosaic standard of the matching size. Two 22.5×45 inserts occupy one 45×45 mounting position. Select the frame according to the required number of positions.

What should I do if the insert LAN-WA-LP-2SPK-WH does not lock in place or works incorrectly?

Check that the product is installed all the way, the latches have engaged and the size and version match the mounting position. Make sure the cables are terminated by the same scheme at both ends of the link and have no open or short circuit; reinstall the product or redo the termination if necessary.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-WA-LP-2SPK-WH pcs 50 × 30 × 50 0.024 0.000075

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
