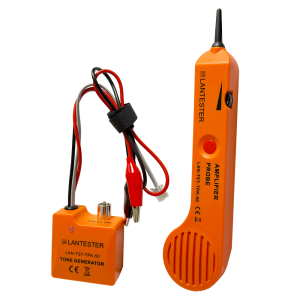

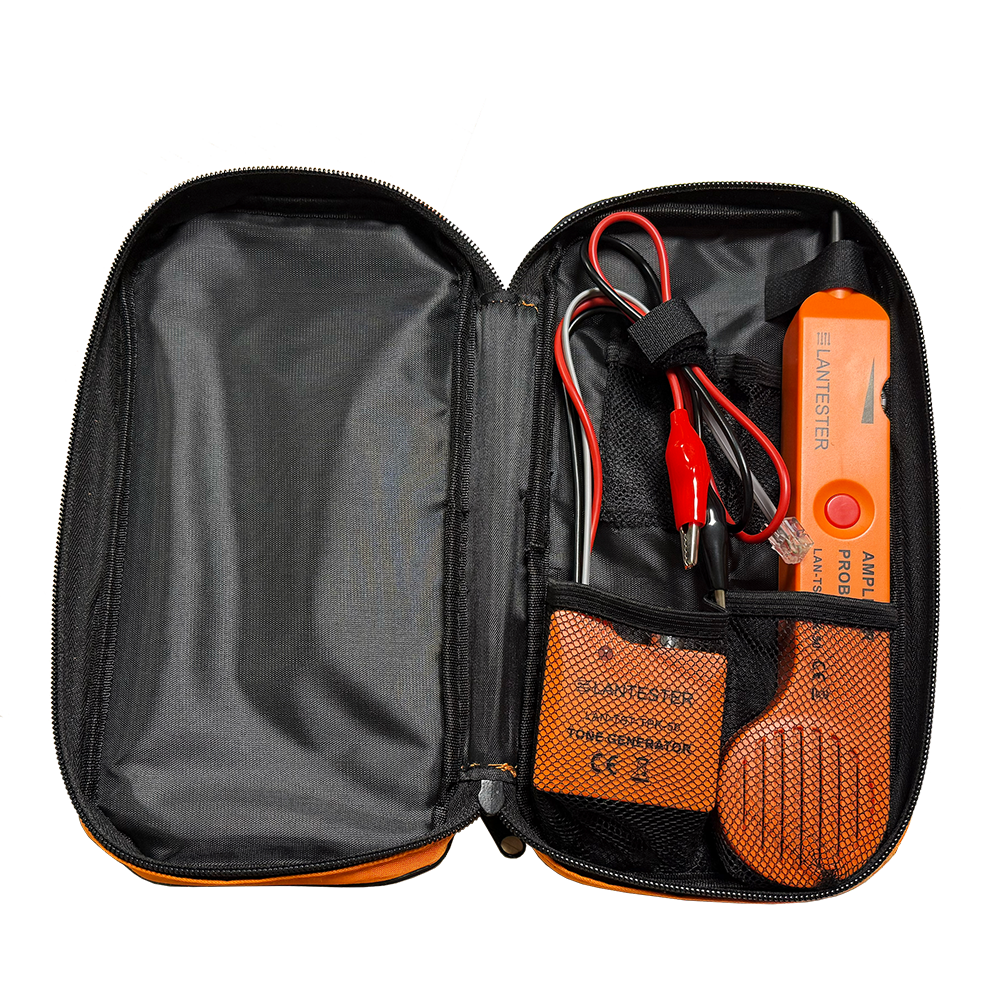

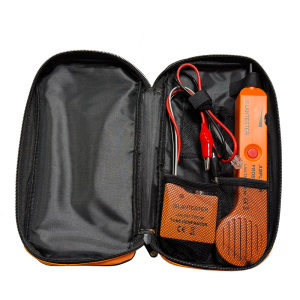

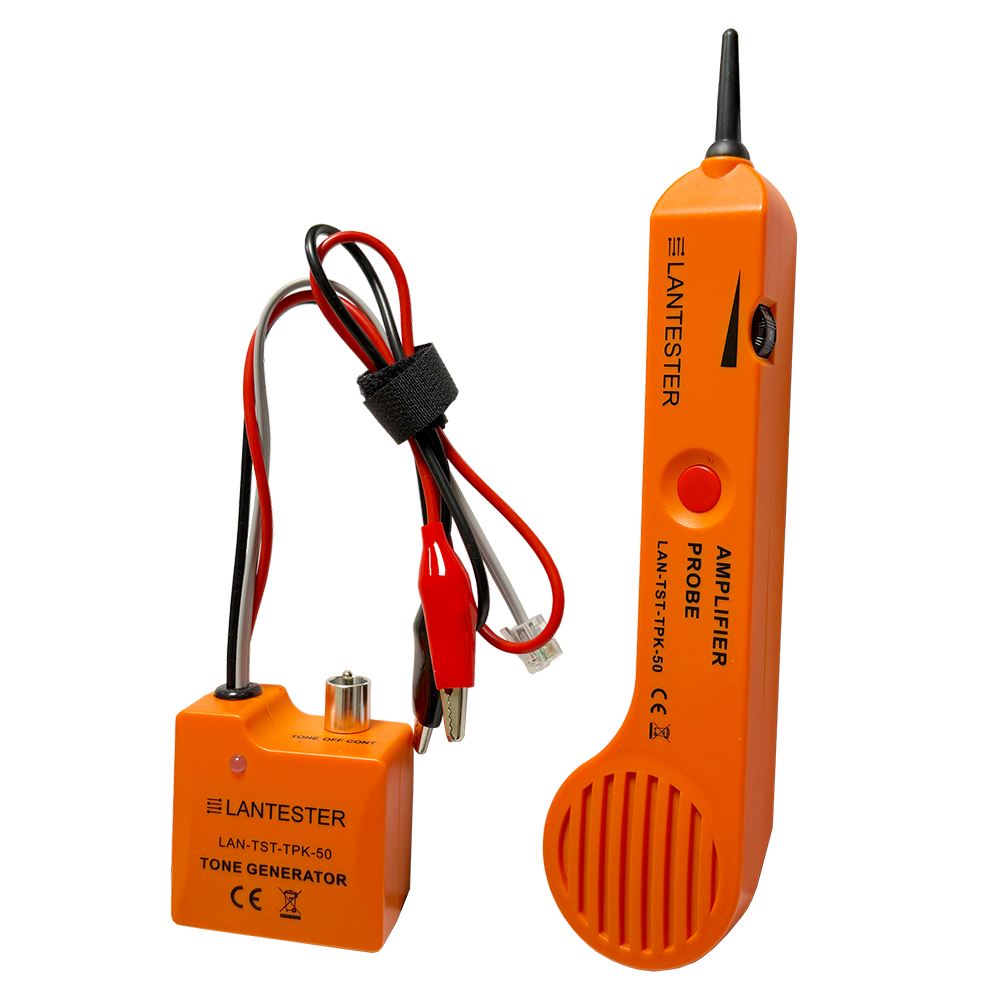

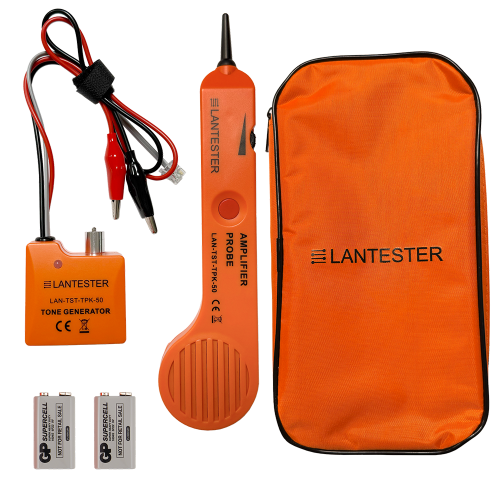

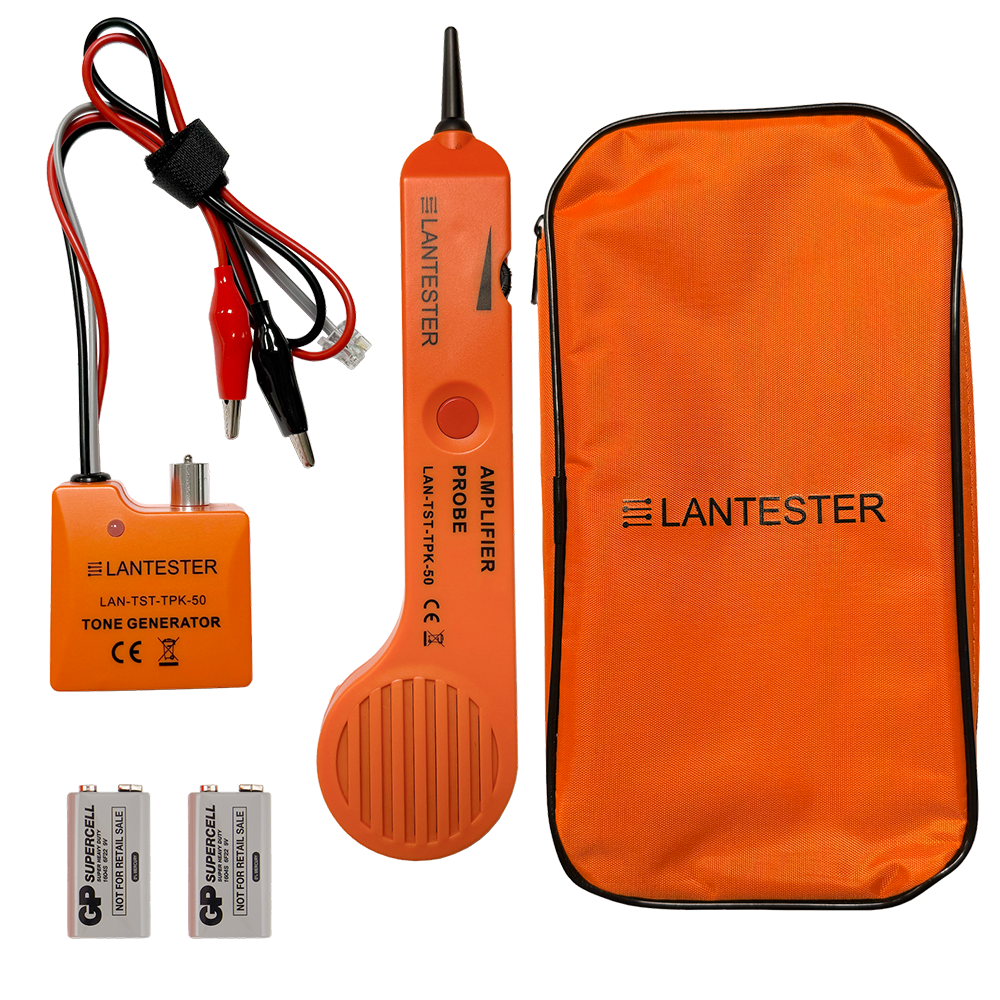

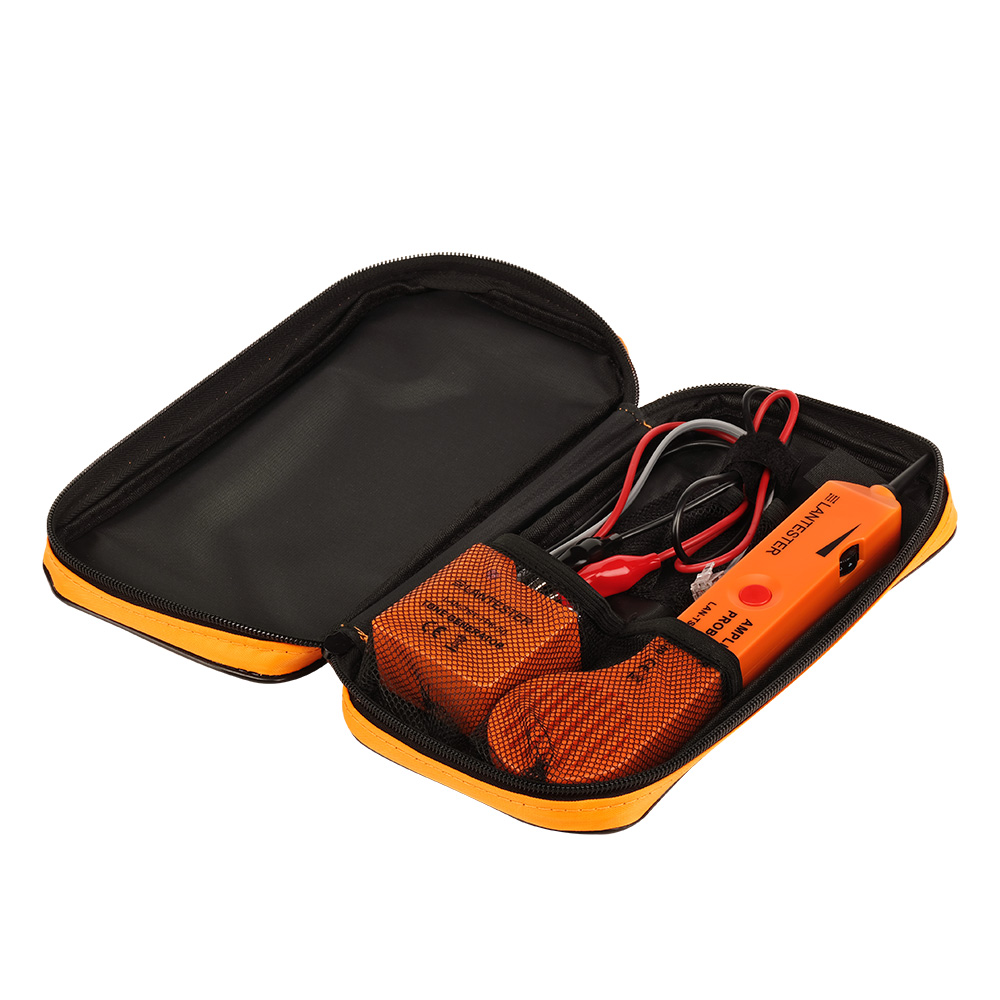

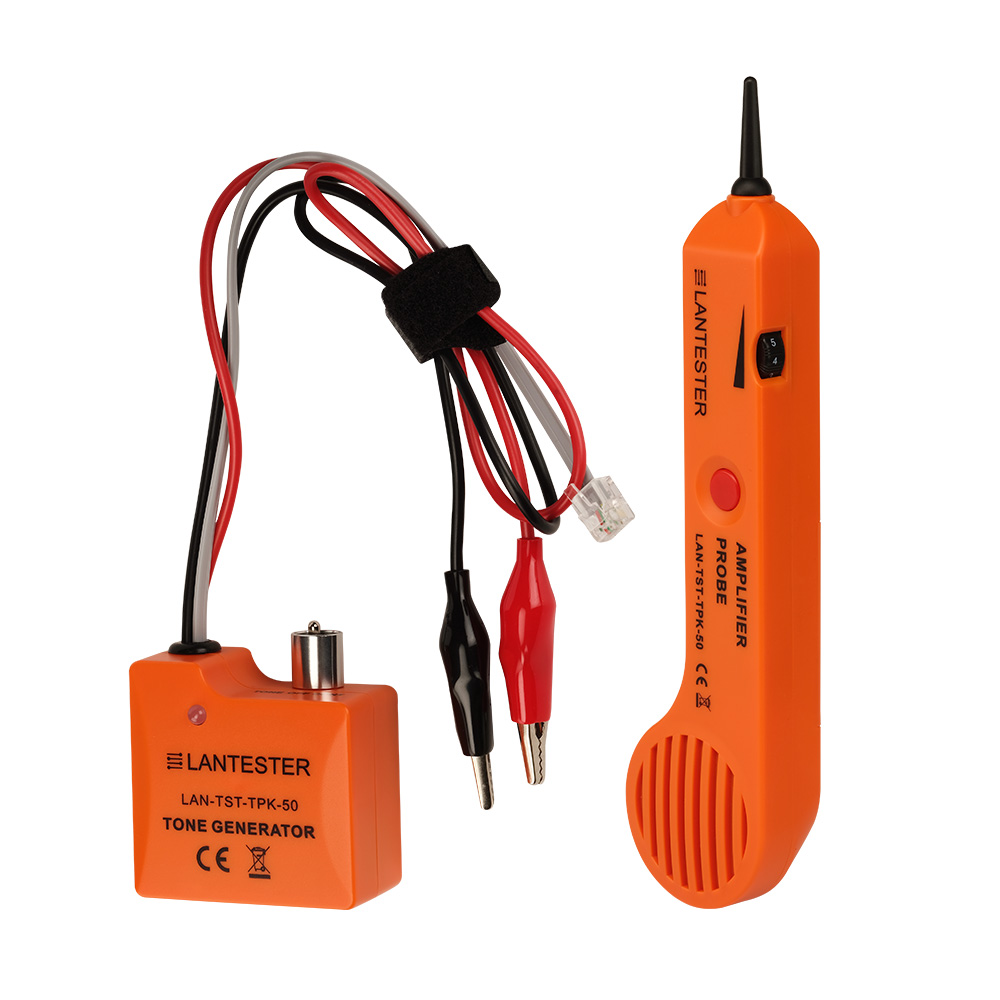

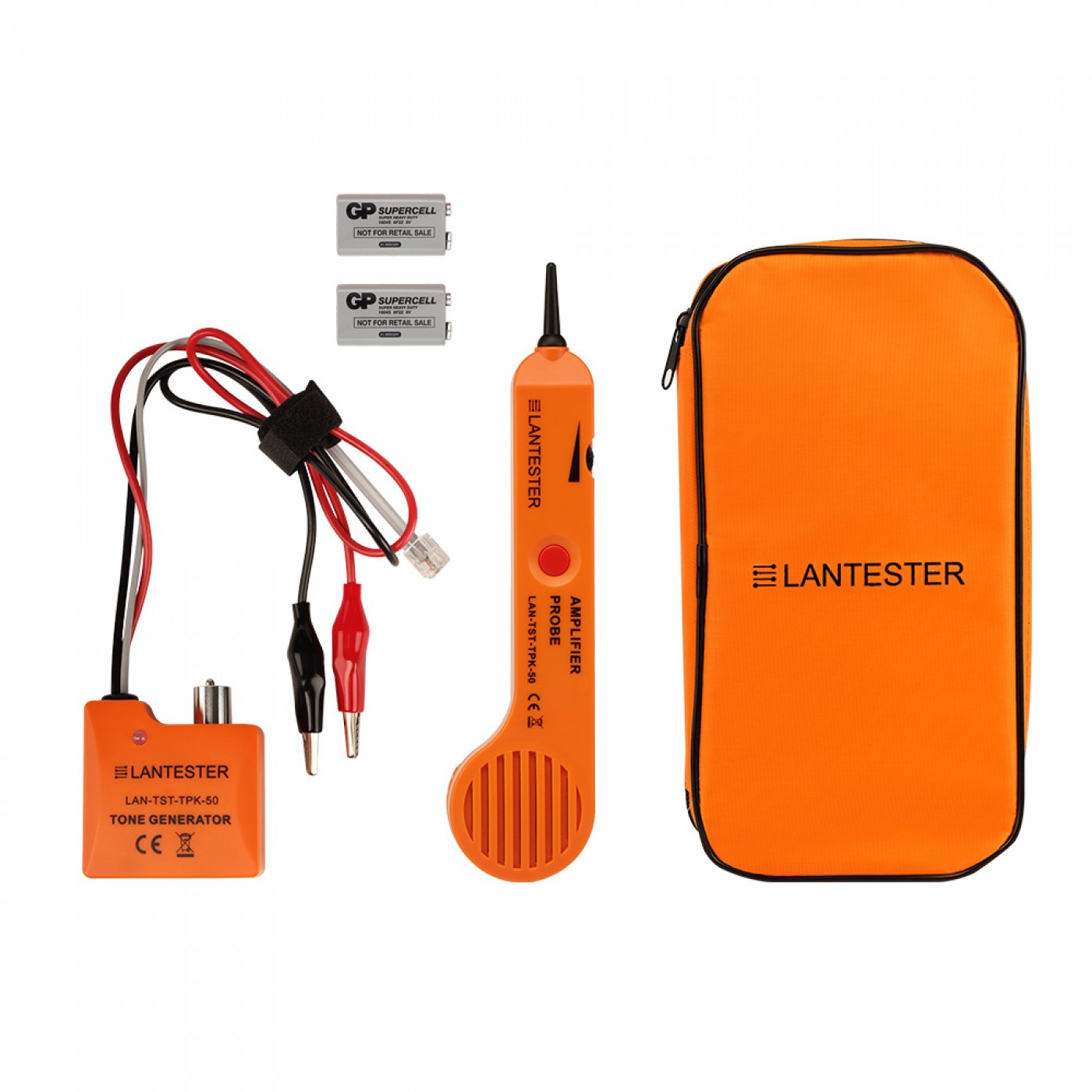

The LAN-TST-TPK-50 test kit consists of a tone generator and an inductive probe (receiver).

The kit is used to:

  • Cable line tracing.
  • Checking the polarity of the phone line.
  • Checking line continuity.
  • Sending a tone into the line.

LAN-TST-TPK-50 can work with various types of cables: twisted pair, single wire, coaxial cable, or any other type of wire.

The generator allows you to produce two types of tone signals. This allows you to search for two lines at the same time with generators set to different tones. Tone selection is done by a microswitch located inside the generator case. The generator is equipped with one RJ-12 and two crocodile clips for line connection.

The probe is equipped with a powerful speaker with adjustable sensitivity and a terminal for connecting a test headset.

Frequently Asked Questions

What is the LAN-TST-TPK-50 kit used for?

This tone generator and contactless probe receiver kit locates and identifies a specific cable in a bundle of wires without needing to disconnect it.

How does cable tracing work with this kit?

The generator connects to one end of the cable and sends a tone signal into it; the probe receiver is held against cables in the bundle at the other end and identifies which one carries the signal by a distinctive sound.

Can the LAN-TST-TPK-50 generator check line continuity?

Yes, the device also checks the continuity of a single pair of wires and can detect a line break.

What powers the LAN-TST-TPK-50 kit?

The generator and receiver each run on their own 9V "Krona" battery.

Why is the tone heard on several wires in a bundle at once, not only the right one?

This is normal when the probe is held near a bundle — crosstalk makes the signal audible on neighboring wires too. To pinpoint the right wire, touch the probe tip directly to the bare conductor: on the correct wire the tone becomes noticeably louder than on the others.
