Tracing kit probe + tone generator, with twisted pair wiring test

Tracing kit probe + tone generator, with twisted pair wiring test
LAN-TST-TPK-300N


Frequently Asked Questions

What is the LAN-TST-TPK-300N kit used for?

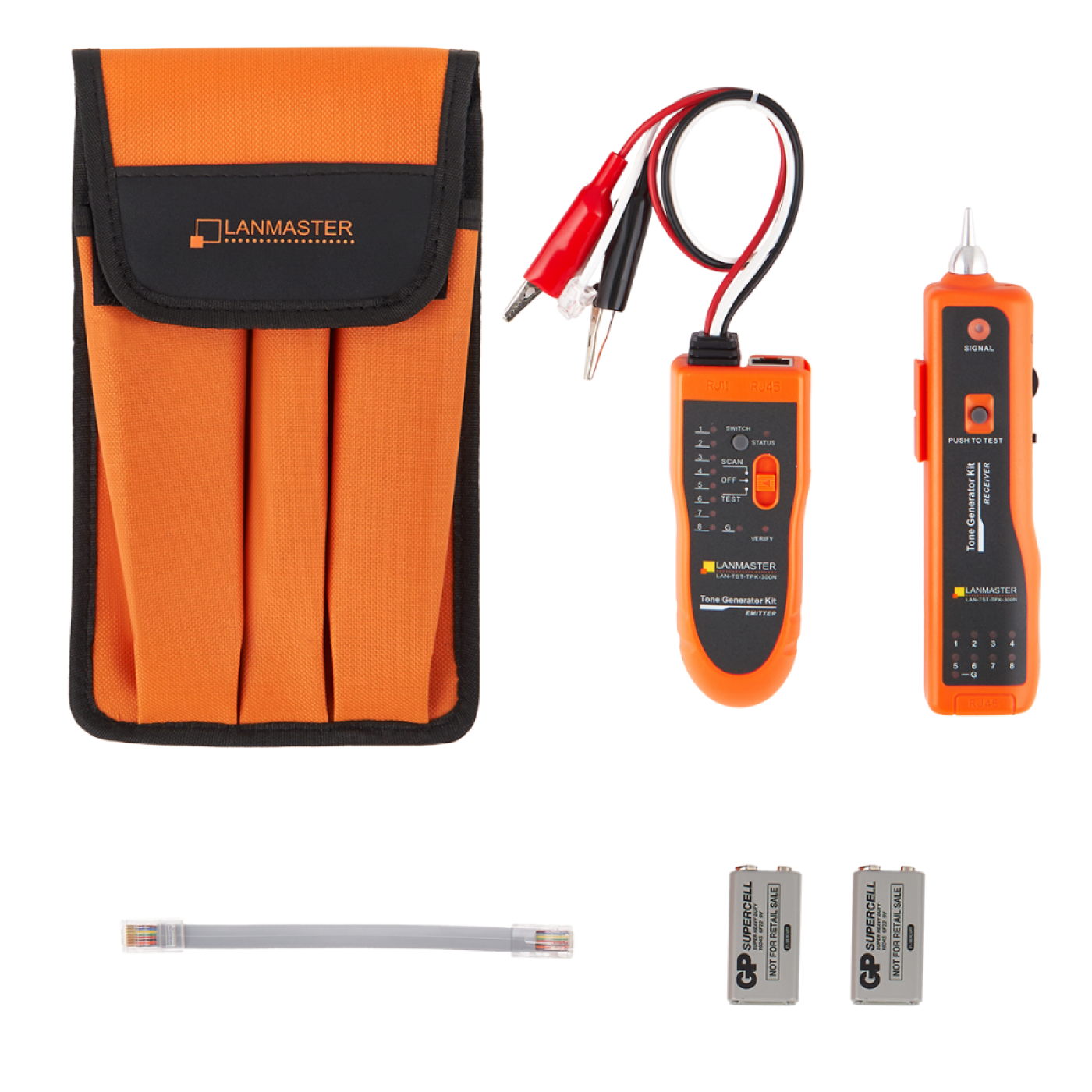

This tone generator and contactless probe receiver kit locates and identifies a cable in a bundle of wires, and checks continuity on twisted-pair, telephone, and coaxial cable lines.

How does the LAN-TST-TPK-300N differ from the simpler LAN-TST-TPK-50 model?

The LAN-TST-TPK-300N additionally checks coaxial cable with a BNC connector and detects basic twisted-pair wiring faults (short circuit, open, crossed and reversed pairs), while the LAN-TST-TPK-50 only works with a single pair of wires.

What distance is the LAN-TST-TPK-300N generator rated for?

The maximum cable tracing range is 300 m.

What powers the LAN-TST-TPK-300N kit?

The generator and receiver each run on their own 9V "Krona" battery.

Why is the tone heard on several wires in a bundle at once, not only the right one?

This is normal when the probe is held near a bundle — crosstalk makes the signal audible on neighboring wires too. To pinpoint the right wire, touch the probe tip directly to the bare conductor: on the correct wire the tone becomes noticeably louder than on the others.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-TST-TPK-300N pcs 290 × 150 × 50 0.44 0.002175

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-TST-TPK-300N box 510 × 345 × 515 19 0.090614

Product Codes (1)

  • Tracing kit probe + tone generator, with twisted pair wiring test
