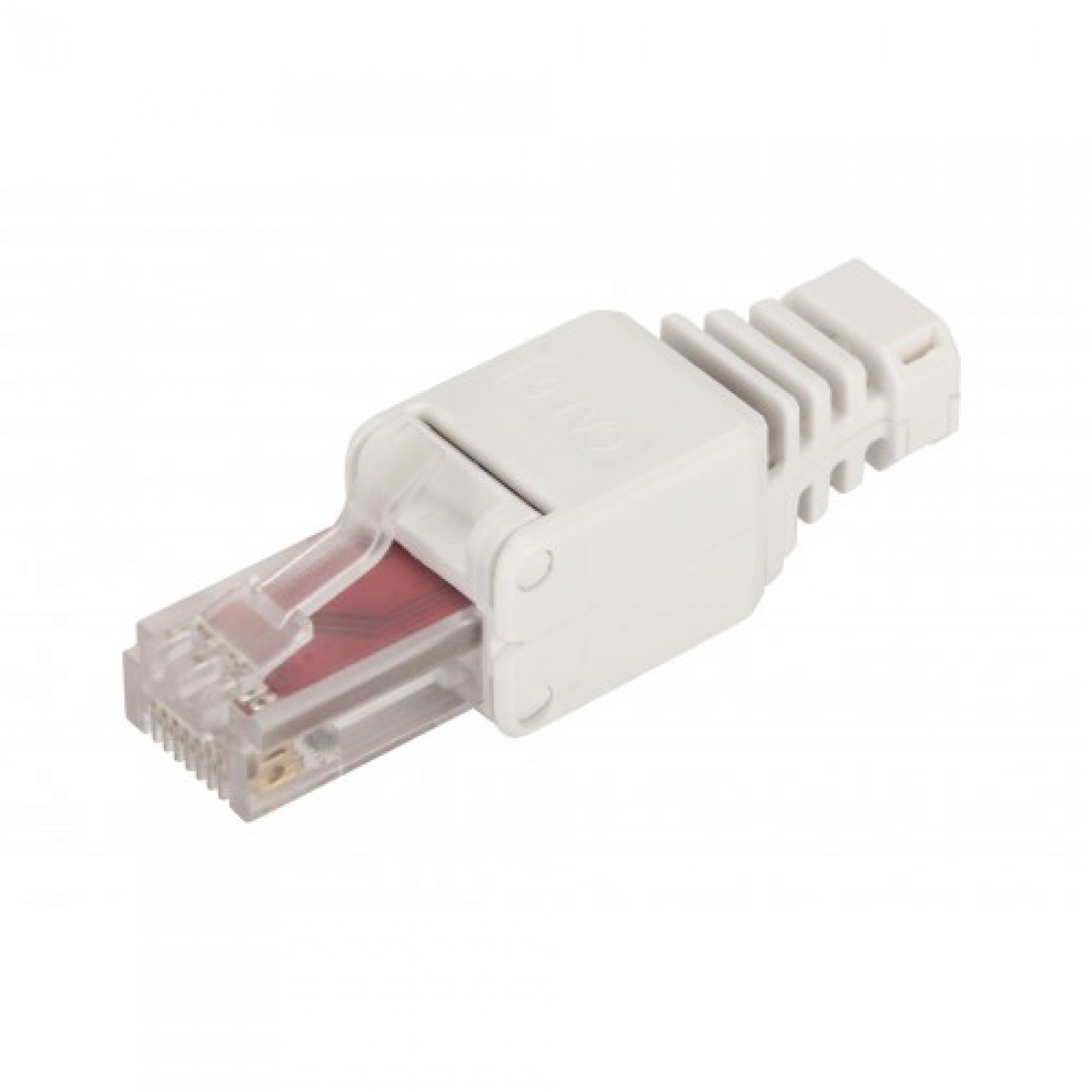

RJ-45 8P8C field terminated plug, unshielded, category 6

Product Code: LAN-TMP-U6-WH

RJ-45 8P8C field terminated plug, unshielded, category 6

The RJ-45 plug is designed to field termination of unshielded twisted pair cable. The plug can be useful if you need to connect equipment directly without installing an RJ-45 socket.

Only a side cutter will suffice to mount the connector. A gentler termination by pressure is used instead of punching technology which improves the frequency domain characteristics. Multiple uses of the connector on different cables are allowed.

For ease of installation, the internals of the plug contain a wire map for connecting cable conductors in accordance with diagrams T568A and T568B.

The cable is securely fixed by the connector cover after termination.

Category 6
Conductor diameter 24–22 AWG
EMI protection Unshielded
Connected conductors Solid copper wires
Outer diameter of the connected cable 5–8 mm
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
