LAN-TMP-U5E-WH

LANMASTER, RJ45 plug, shielded, unshielded. Product for LANMASTER copper structured cabling systems. Use in connectors applications according to the project design and product specifications.

Most frequently asked questions and answers

What is the LAN-TMP-U5E-WH field-installable RJ-45 connector used for?

The field-installable RJ-45 connector (8P8C) is intended for terminating unshielded twisted-pair cable in the field and complies with the requirements of category 5e. It is useful when equipment must be connected directly, without installing an RJ-45 outlet, and for interconnecting server and specialized equipment.

LANMASTER, RJ45 plug, shielded, unshielded LAN-TMP-U5E-WH

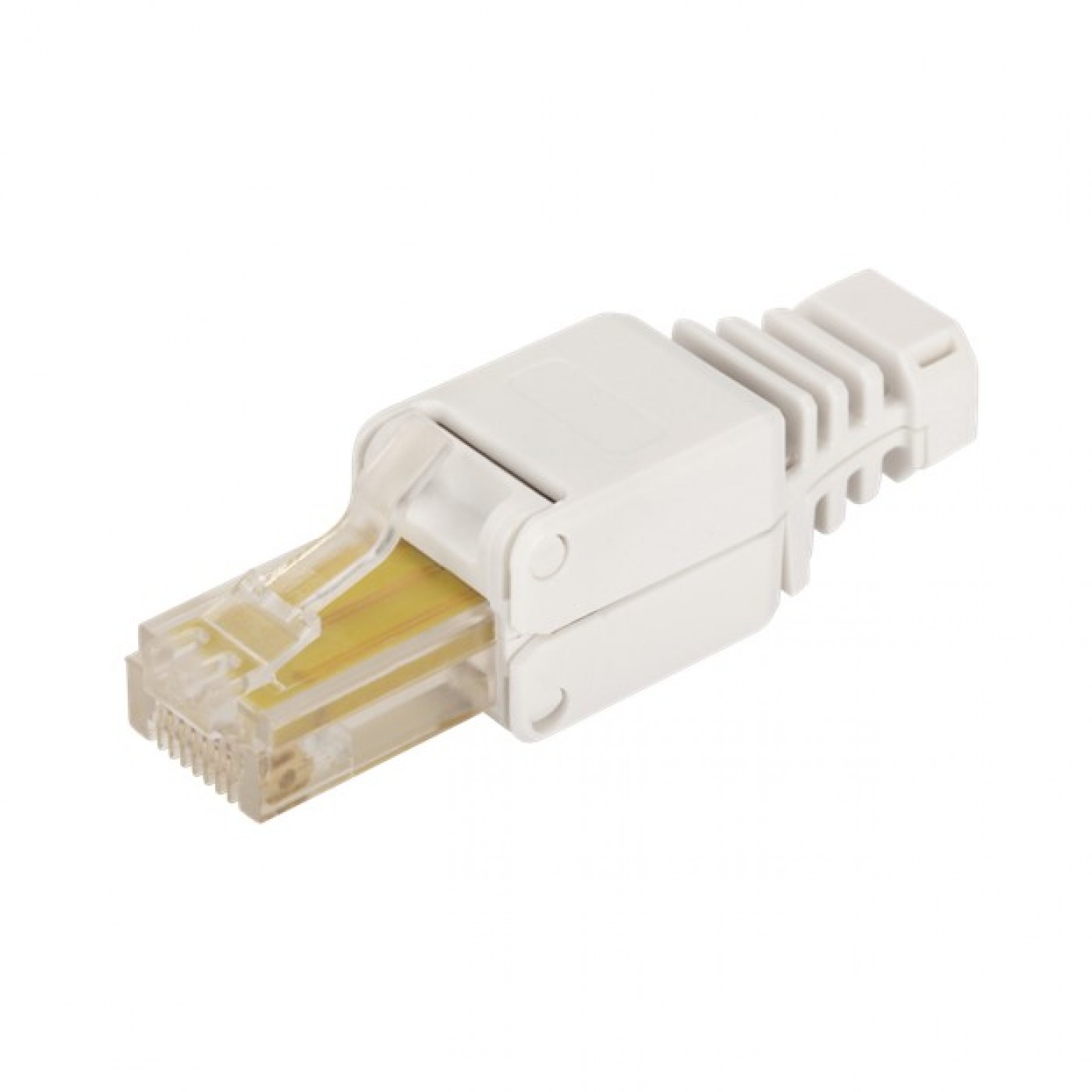

Appearance LAN-TMP-U5E-WH
How do I install the LAN-TMP-U5E-WH field-installable connector?

Ordinary side cutters are enough for installation: a gentler push-on technology is used instead of impact termination, which improves frequency characteristics. Arrange the conductors according to the diagram on the insert (T568A or T568B), trim the excess and close the connector cover — the cable is securely held by the cover. The connector can be reinstalled repeatedly on different cables.

What should I do if the link with the connector LAN-TMP-U5E-WH does not work or works unstably?

Check that the conductors are connected by the same scheme at both ends of the link, that there is no open or short circuit and that all connectors are intact and fully latched. Check the link with a tester and make sure the category of all components is not lower than required.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-TMP-U5E-WH pcs 50 × 50 × 15 0.01 0.000038
