LANMASTER, Category 5e, RJ45 plug, shielded

LANMASTER, Category 5e, RJ45 plug, shielded for copper structured cabling systems. LANMASTER product information, specifications and part number details.
LAN-TMP-S5E

The RJ-45 plug is designed to field termination of shielded twisted pair cable. The plug can be useful if you need to connect equipment directly without installing an RJ-45 socket.

Only a side cutter will suffice to mount the connector. A gentler termination by pressure is used instead of punching technology which improves the frequency domain characteristics. Multiple uses of the connector on different cables are allowed.

For ease of installation, the internals of the plug contain a wire map for connecting cable conductors in accordance with diagrams T568A and T568B.

The cable is securely fixed by the connector cover after termination.

Category 5e
Conductor diameter 24–22 AWG
EMI protection Shielded
Connected conductors Solid copper wires

Most frequently asked questions and answers

What is the LAN-TMP-S5E field-installable RJ-45 connector used for?

The field-installable RJ-45 connector (8P8C) is intended for terminating shielded twisted-pair cable in the field and complies with the requirements of category 5e. It is useful when equipment must be connected directly, without installing an RJ-45 outlet, and for interconnecting server and specialized equipment.

LANMASTER, Category 5e, RJ45 plug, shielded LAN-TMP-S5E

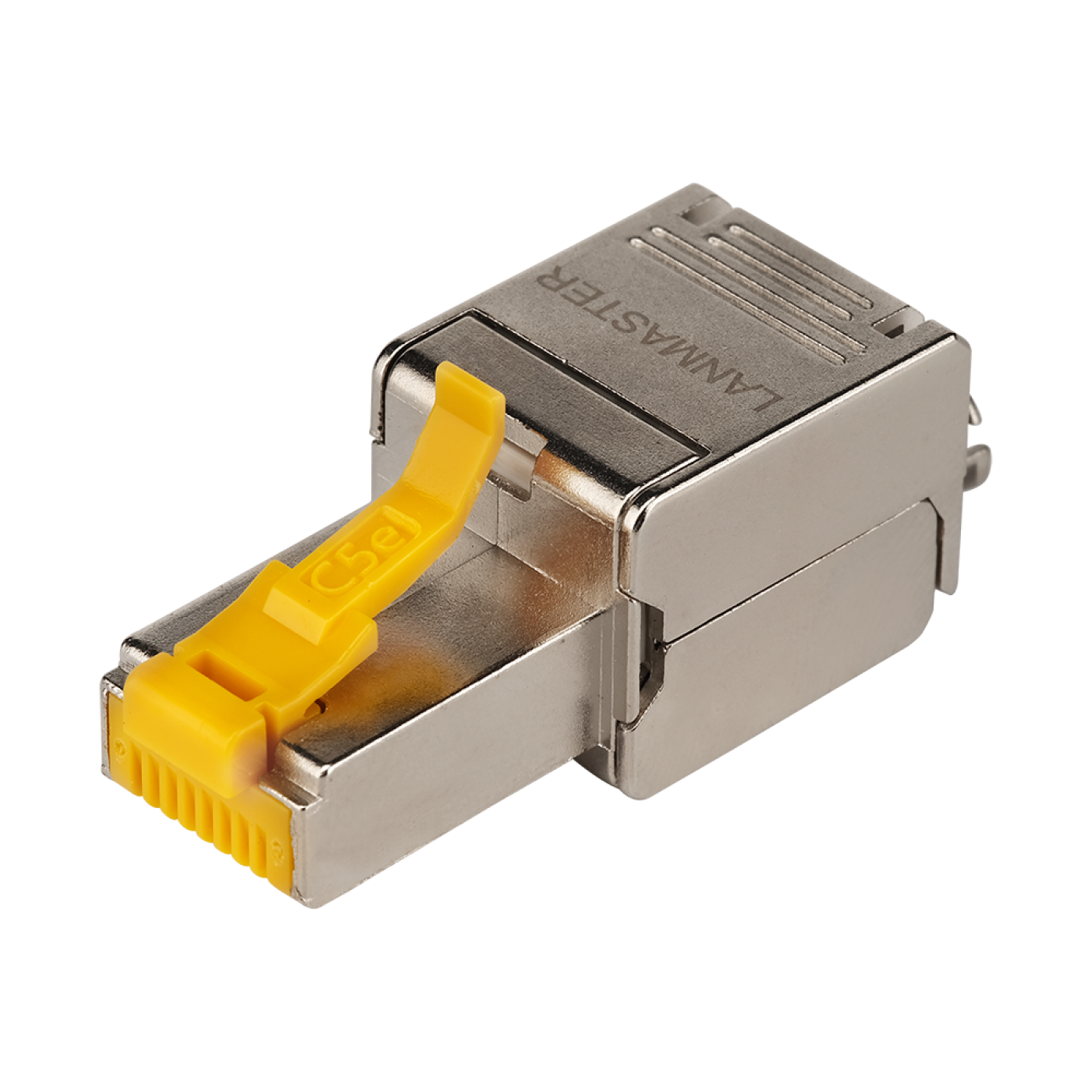

Appearance LAN-TMP-S5E
How do I install the LAN-TMP-S5E field-installable connector?

Ordinary side cutters are enough for installation: a gentler push-on technology is used instead of impact termination, which improves frequency characteristics. Arrange the conductors according to the diagram on the insert (T568A or T568B), trim the excess and close the connector cover — the cable is securely held by the cover. The connector can be reinstalled repeatedly on different cables. Connect the cable screen to the shielding body of the connector.

What should I do if the link with the connector LAN-TMP-S5E does not work or works unstably?

Check that the conductors are connected by the same scheme at both ends of the link, that there is no open or short circuit and that all connectors are intact and fully latched. Check the link with a tester and make sure the category of all components is not lower than required.

Didn’t find an answer to your question?

Product Codes (1)

  • LANMASTER, Category 5e, RJ45 plug, shielded
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
