Cable tester with length measurement, cable tracer, and POE detection, with time domain reflectometer function
The LAN-PRO-L/TPK-TDR is designed for testing cable links. Allows to determine cable lengths, detect various faults, and display fault locations via an intuitive graphical interface (using the Time Domain Reflectometry method).
Instrument easily locates cables, traces them with an AC filter, and identify ports on a network switch using the flashing feature.
Device capabilities:
- Line fault detection by pulse reflectometry method (TDR) for precise fault location in communication lines.
- The device allows you to perform a Ping test in the local network, on the Internet.
- Detects the presence of "Power over Ethernet" (POE) and measures the voltage on the wires of the cables connected to the PoE ports.
- Automatically detects and assigns an IP address (DHCP client).
- Checking twisted pair, phone wiring, coaxial cable for open or short circuits.
Head unit emitter technical specifications
| Display type | LCD |
| Display size | 60 x 45 mm |
| Cable length measurement range | 1 ~ 1500 m |
| Tested cables | Twisted pair: UTP, STP, cat. 5e, 6, 6A, CAT7 Coaxial cables Phone twisted pair cables Metal wires connected with crocodile clips |
| Minimum calibration distance | 20 m |
| Battery type | 3.7V 1800 mAh Li-ion |
| Measurement accuracy | 2% (±0.5 m or ±1.5 ft) with calibration cable length > 50 m |
| Body material | Plastic |
| Operating temperature/humidity range | -10ºC ~ +60ºC / 20% ~ 70% |
| Dimensions | 173 x 92 x 35 mm |
Remote identifier technical specifications
| Compatible connectors | 3.7V Li-Ion 1800mAh |
| Dimensions (W*H*D) | 183 x 58 x 35 mm |

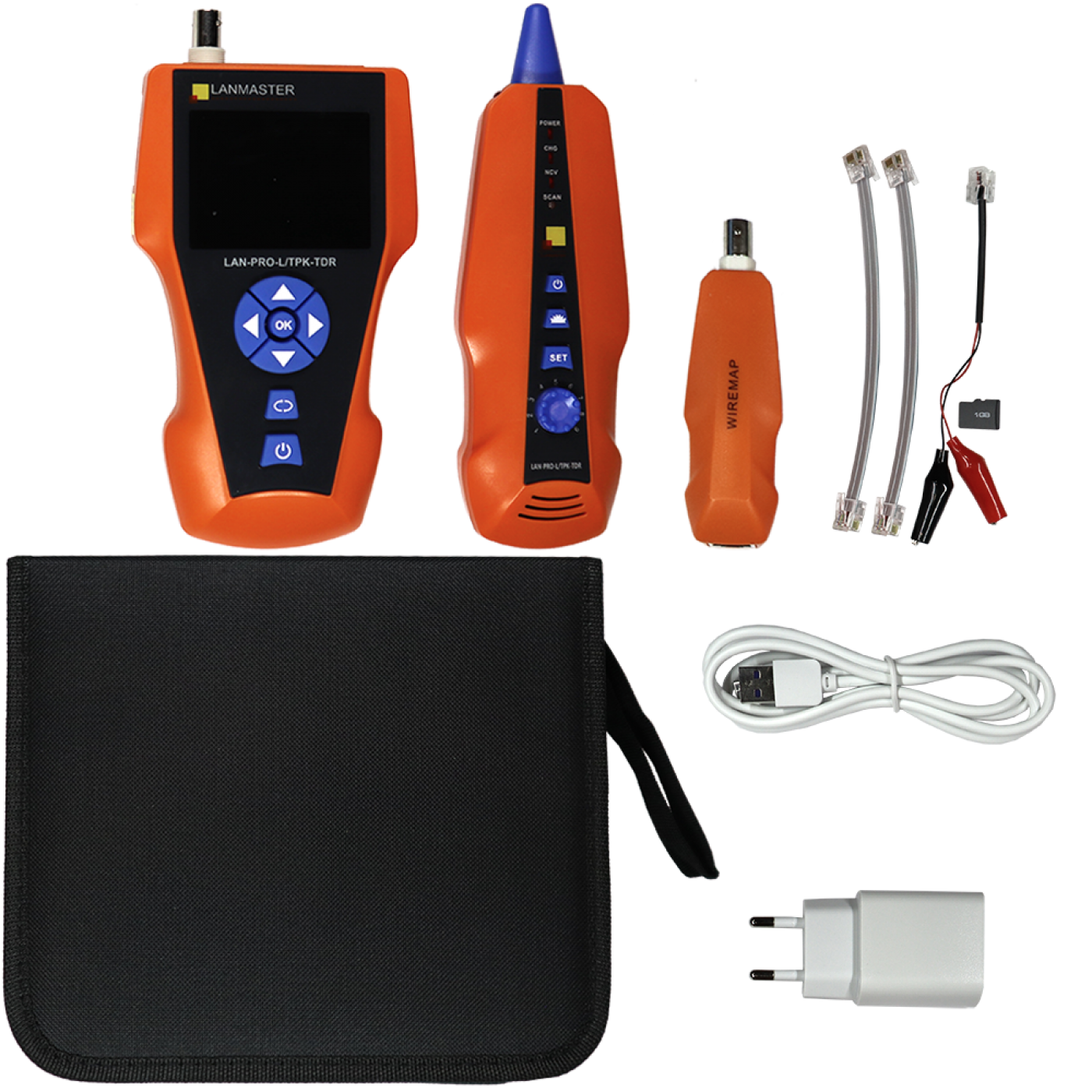

Package includes:
| Compatible connectors | RJ11, RJ45, BNC |
| Dimensions (W*H*D) | 106 x 32 x 30 mm |
Package includes:
- Main unit (emitter) — 1 pc.,
- Inductive probe — 1 pc.,
- Remote identifier — 1 pc.,
- Micro-USB cord — 1 pc.,
- Battery charger — 1 pc.,
- RJ45 - RJ45 jumper — 1 pc.,
- RJ11 - RJ11 jumper — 1 pc.,
- RJ-11 - "crocodile" clip adapter — 1 pc.,
- Flash card — 1 pc.,
- Belt pouch — 1 pc.,
- User manual — 1 pc.
Frequently Asked Questions
What is the LAN-PRO-L/TPK-TDR cable tester used for?
The с функцией TDR (рефлектометрии) tester checks copper twisted-pair, telephone, and coaxial cable lines: it detects crossed pairs, opens, and shorts, and measures the length of each pair.
How many remote identifiers come with the LAN-PRO-L/TPK-TDR?
The package includes 1 ответная часть; each identifier beeps when at least one conductor makes physical contact, and a change in the sound signals that the test on that identifier is complete.
What cables can the LAN-PRO-L/TPK-TDR test?
The device tests Category 5e and 6 UTP/STP twisted pair, coaxial cable, and telephone twisted pair.
What distance does the LAN-PRO-L/TPK-TDR tester work over?
The maximum detection distance is 1000 m.
Does the LAN-PRO-L/TPK-TDR tester save battery when idle?
Yes, the device enters sleep mode after 30 minutes of inactivity to save battery.
Does the LAN-PRO-L/TPK-TDR support PoE checking?
Yes, the device detects whether Power over Ethernet (PoE) is present on the line and measures voltage on the PoE port's conductors, and also runs ping tests on local networks and the internet and obtains an IP address automatically (DHCP client).
The tester shows no PoE detected on the line, even though the switch supports PoE — why?
This often comes down to the difference between passive PoE (the line carries a constant voltage with no negotiation) and standard IEEE 802.3af/at PoE, where power only switches on after the switch detects the end device's signature resistor on the line. A tester built around the 802.3af/at protocol may not register passive PoE power even though voltage is physically present on the line. Check the PoE type on both ends of the line before treating the tester's result as an error.
What does the TDR function do in the LAN-PRO-L/TPK-TDR?
Time-domain reflectometry (TDR) determines the distance to a cable fault and displays it on the device's graphical interface, speeding up fault location on a long line without physically inspecting its entire length.
What if one of the tester's remote identifiers is lost or damaged?
Cable-tester identifiers are usually numbered and can be sold separately from the instrument itself — many cable techs buy extra sets for large sites so they do not lose time hunting for a single set. Check with the seller for the availability and terms of buying individual identifiers.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-PRO-L/TPK-TDR | pcs | 280 × 200 × 60 | 0.78 | 0.00336 |
Product Codes (1)
-
Cable tester with length measurement, cable tracer, and POE detection, with time domain reflectometer function
