LAN-PRO-L/TPK-POE-8R

The LAN-PRO-L/TPK-POE-8R is a multifunctional device used for wire length measurement, line tracing and wire break detection, PING tests, performing POE detection and voltage measurement.

The tool set includes the following components: head unit, remote identifiers, and inductive probe. The LAN-PRO-L/TPK-POE-8R model includes eight remote identifiers for easy operation and reduced network setup time.

Device capabilities:

  • •The device allows you to perform a Ping test in the local network, on the Internet.
  • Detects the presence of "Power over Ethernet" (POE).
  • Automatically detects and assigns an IP address (DHCP client).
  • Finding and identifying the line, checking its condition, tracing, identifying the conductor to a break (short circuit).
  • Line check: open-circuit, short-circuit, interference from adjacent wires, reverse connection and location of open circuit using "M-S" and "M-R" methods.

Head unit emitter technical specifications

Display type LCD
Display size 3.5 inch
Maximum distance for the wiremap identification 2000 m
Maximum cable tracing distance 1000 m
Tested cables

Twisted pair: UTP, STP, cat. 5e, 6

Coaxial cables

Phone twisted pair cables

Minimum calibration distance 10 m
Battery type 3.7V 1800 mAh Li-ion
Measurement accuracy 3% (after calibration)
Body material Plastic
Operating temperature/humidity range -10ºC ~ +60ºC / 20% ~ 70%
Dimensions 173 x 92 x 35 mm

Inductive probe technical specifications

Battery type 3.7V 1800 mAh Li-ion
Dimensions 183 x 58 x 35 mm

Remote identifier technical specifications

Compatible connectors RJ45, RJ11, BNC
Dimensions
58 x 183 x 35 mm

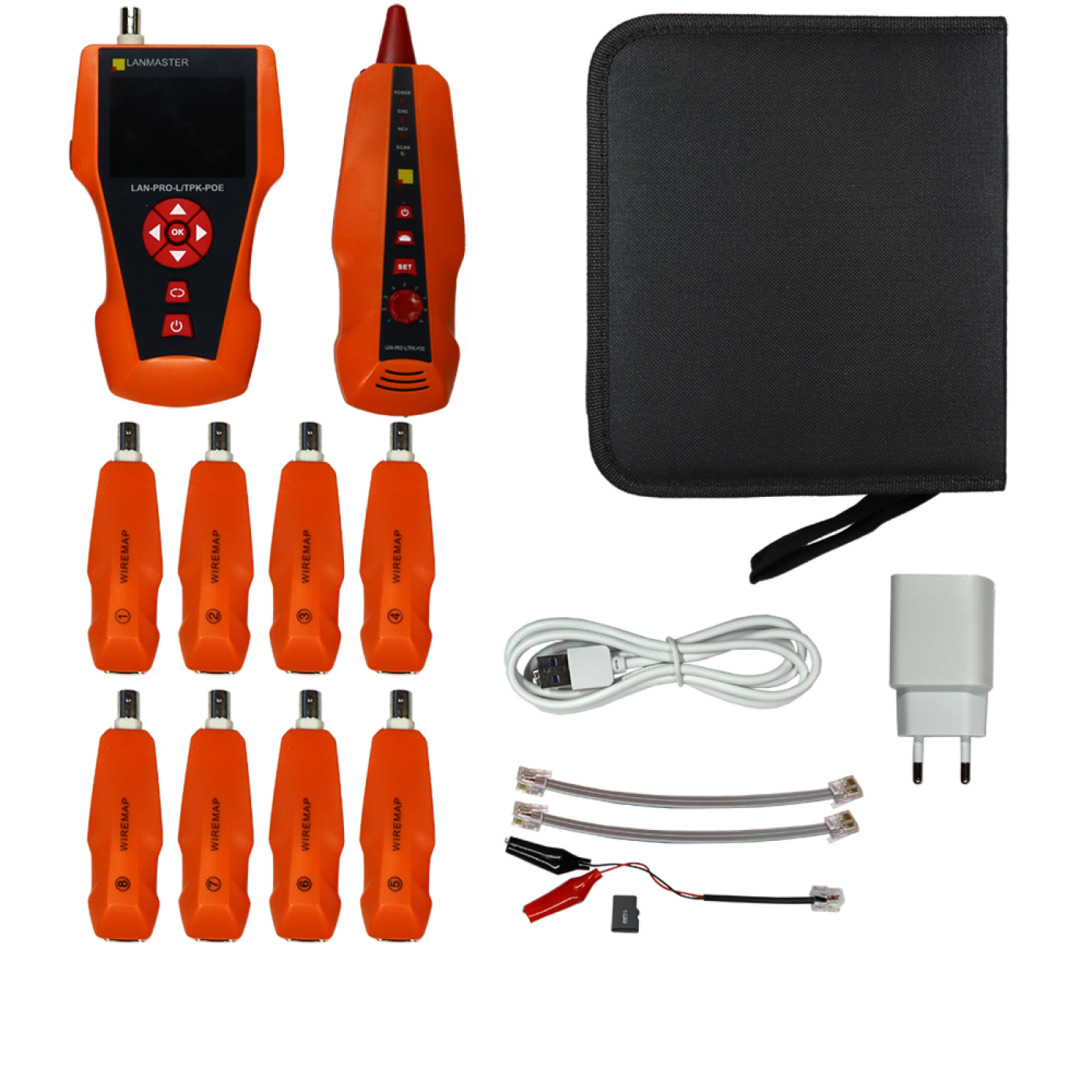

Package includes:

  • Main unit (emitter) — 1 pc.,
  • Inductive probe — 1 pc.,
  • Remote identifier — 8 pcs.,
  • Micro-USB cord — 1 pc.,
  • Battery charger — 1 pc.,
  • RJ45 - RJ45 jumper — 1 pc.,
  • RJ11 - RJ11 jumper — 1 pc.,
  • RJ-11 - "crocodile" clip adapter — 1 pc.,
  • Flash card — 1 pc.,
  • Belt pouch — 1 pc.,
  • User manual — 1 pc.

Warning!
The body of the instrument has changed since the beginning of 2022. Devices in the new and old enclosure are available for shipment.
The old body is only available in the quantities currently in stock by the manufacturer and distributors. Both versions of the device are covered by the official factory warranty from the manufacturer.

Frequently Asked Questions

What is the LAN-PRO-L/TPK-POE-8R cable tester used for?

The с функцией трассировки и проверки PoE tester checks copper twisted-pair, telephone, and coaxial cable lines: it detects crossed pairs, opens, and shorts, and measures the length of each pair.

How many remote identifiers come with the LAN-PRO-L/TPK-POE-8R?

The package includes 8 ответных частей; each identifier beeps when at least one conductor makes physical contact, and a change in the sound signals that the test on that identifier is complete.

What cables can the LAN-PRO-L/TPK-POE-8R test?

The device tests Category 5e and 6 UTP/STP twisted pair, coaxial cable, and telephone twisted pair.

What distance does the LAN-PRO-L/TPK-POE-8R tester work over?

The maximum detection distance is 1000 m.

Does the LAN-PRO-L/TPK-POE-8R tester save battery when idle?

Yes, the device enters sleep mode after 30 minutes of inactivity to save battery.

Does the LAN-PRO-L/TPK-POE-8R support PoE checking?

Yes, the device detects whether Power over Ethernet (PoE) is present on the line and measures voltage on the PoE port's conductors, and also runs ping tests on local networks and the internet and obtains an IP address automatically (DHCP client).

The tester shows no PoE detected on the line, even though the switch supports PoE — why?

This often comes down to the difference between passive PoE (the line carries a constant voltage with no negotiation) and standard IEEE 802.3af/at PoE, where power only switches on after the switch detects the end device's signature resistor on the line. A tester built around the 802.3af/at protocol may not register passive PoE power even though voltage is physically present on the line. Check the PoE type on both ends of the line before treating the tester's result as an error.

What if one of the tester's remote identifiers is lost or damaged?

Cable-tester identifiers are usually numbered and can be sold separately from the instrument itself — many cable techs buy extra sets for large sites so they do not lose time hunting for a single set. Check with the seller for the availability and terms of buying individual identifiers.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-PRO-L/TPK-POE-8R pcs 90 × 200 × 230 1.036 0.00414
