19" PoE panel, 24 port, with two power supplies, 48V, 120W
Product Code: LAN-PP24-POE/A2

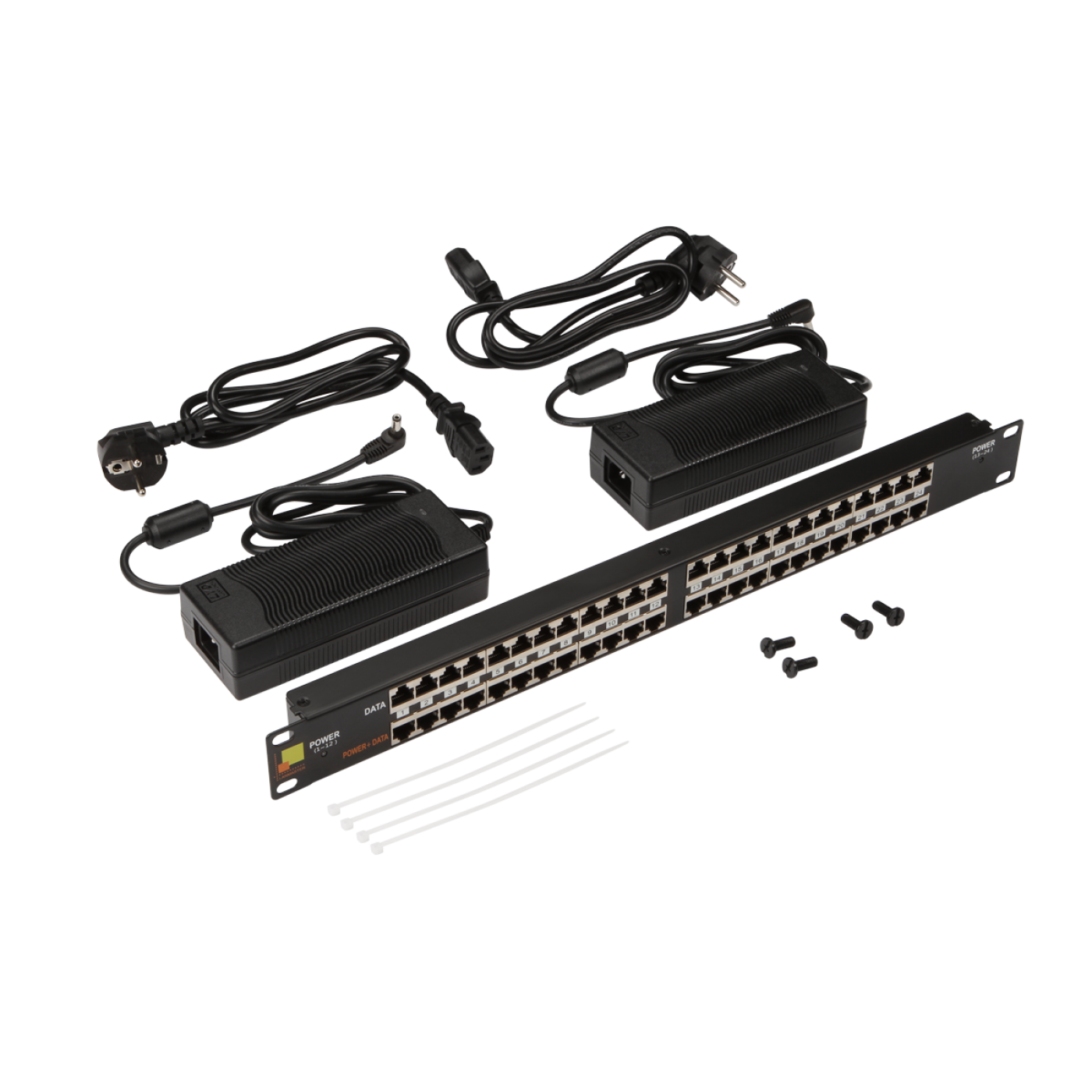

24 port panels are designed to organize the same time combined transmissionover SCS lines both powering peripheral devices and Ethernet connections. Category 5E compliant. Package included:
The panel can be mounted in a 19" rack, cabinet or wall frame, or wallmounted (using optional brackets).
The connection scheme is that the ports of a network device that does not supportthe PoE are connected to the top row (Data) of the RJ-45 sockets (indicated bya white stripe). The combined signal (Power+Data) comes out of the second row of sockets(indicated by the yellow stripe). It can be connected to the panel of thehorizontal or backbone lines of the SCS. The 48V power source of the panel is from the included power supplyconnected to a jack located on the rear side of the panel. Regular RJ-45–RJ-45 patch-cords are used to connect to the patch panel. Thepanel has a terminal for connecting a grounding conductor on the rear side. For the convenience of placingthe panel's power supply, you can use the LAN-PP-POE-CMB bracket (not includedin the kit, purchased separately).
|
