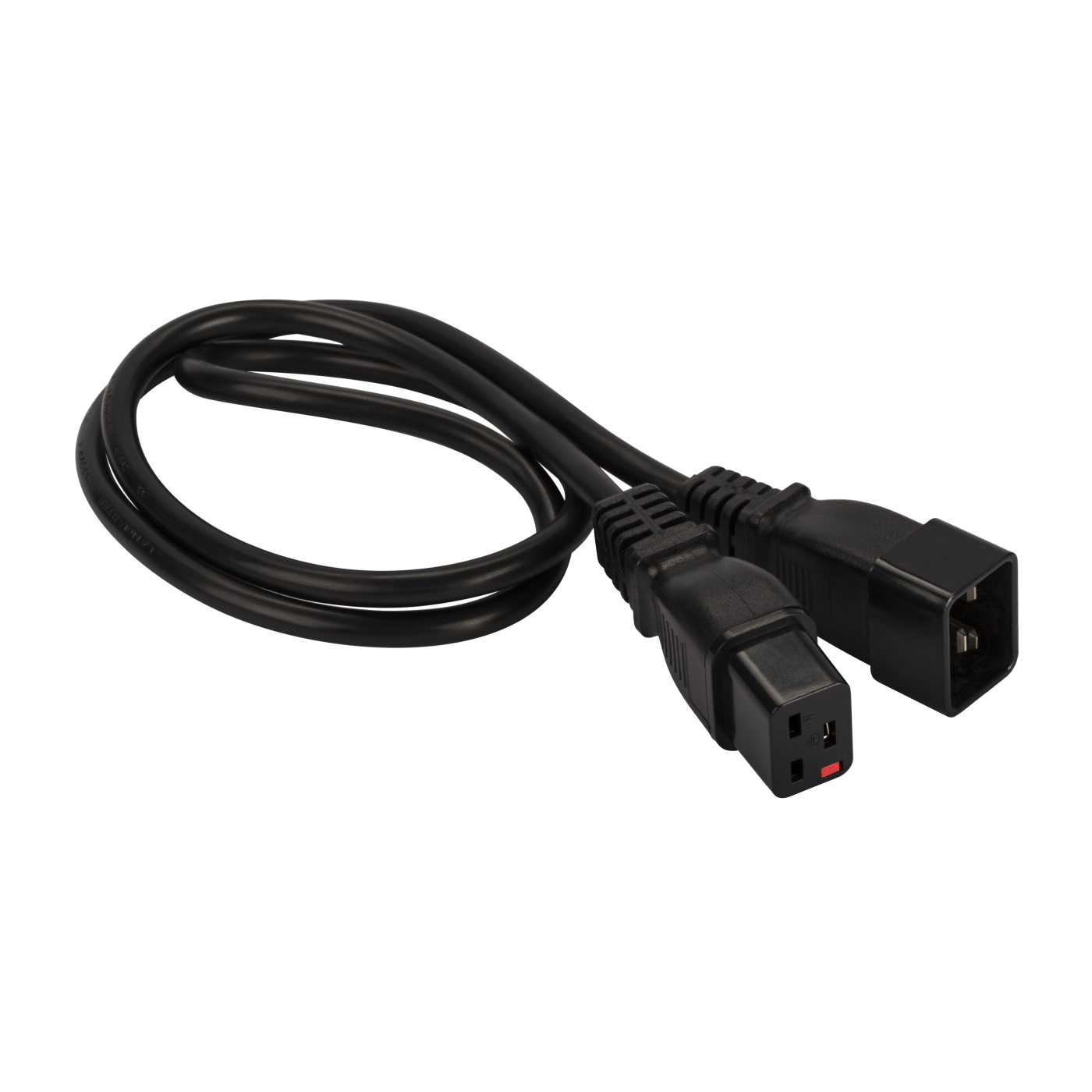

Locking power cord, C19 to C20, 3x1.5, 220V, 16A
Purpose:
- Locking power cord, C19 to C20, 3x1.5, 220V, 16A for connecting IT and telecommunications equipment to compatible power sources.
Features:
- Catalog name contains the key configuration, rating, connector type, color, and length where applicable.
- For project use, request the current datasheet and availability details from LANMASTER or an authorized partner.
Frequently Asked Questions
What is the LAN-PP19L/20-x.x-yy cord used for?
The C19-C20 power cord connects equipment fitted with a C20 inlet to the mains supply through a C19 connector, and the C19 connector has a mechanism that guards against accidental or deliberate disconnection.
How does the connector locking mechanism work?
The C19 connector is inserted into its mating part in the usual way; the mechanism then automatically locks the connector's center contact with a retaining plate. The connector has standard dimensions and fits any standard C20 socket or plug.
Why does the lock matter — when is it actually needed?
A standard C20 connector in a densely packed rack can work loose over time from vibration, the weight of a cable bundle, or an accidental tug while servicing nearby equipment, causing an unplanned power loss. The LAN-PP19L/20-x.x-yy cord reduces this risk through its mechanical contact lock.
What are the electrical ratings of the LAN-PP19L/20-x.x-yy cord?
The cable is ПВС 3х1,5, the maximum current is 16 A, and the maximum permissible voltage is about 250 V.
What cord lengths are available for the LAN-PP19L/20-x.x-yy?
The cord is available in the following lengths: 0.5, 1.0, 2.0, 3.0, 5.0 m, in black.
Does the locking mechanism require a special matching socket?
No, the locking connector has standard dimensions and plugs into any standard C20 socket of the same type; no special mating part is required.
How do I disconnect the LAN-PP19L/20-x.x-yy cord once the connector is locked?
Press the connector's locking tab (at the retaining plate) and pull the plug or socket out with the usual motion; the mechanism is designed for normal single-action disconnection, not only for preventing accidental removal.
What's the difference between the LAN-PP19L/20-x.x-yy and a regular C19-C20 cord without locking?
The electrical ratings and available lengths match the regular version. The only difference is the C19 connector: it has a mechanism that locks the center contact, reducing the risk of accidental disconnection. If that protection isn't needed, use the regular cord without locking.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-PP19L/20-0.5-BK | pcs | 210 × 100 × 100 | 0.17 | 0.0021 |
| LAN-PP19L/20-1.0-BK | pcs | 220 × 100 × 100 | 0.22 | 0.0022 |
| LAN-PP19L/20-2.0-BK | pcs | 220 × 100 × 100 | 0.33 | 0.0022 |
| LAN-PP19L/20-3.0-BK | pcs | 280 × 100 × 100 | 0.45 | 0.0028 |
| LAN-PP19L/20-5.0-BK | pcs | 300 × 130 × 130 | 0.66 | 0.00507 |
