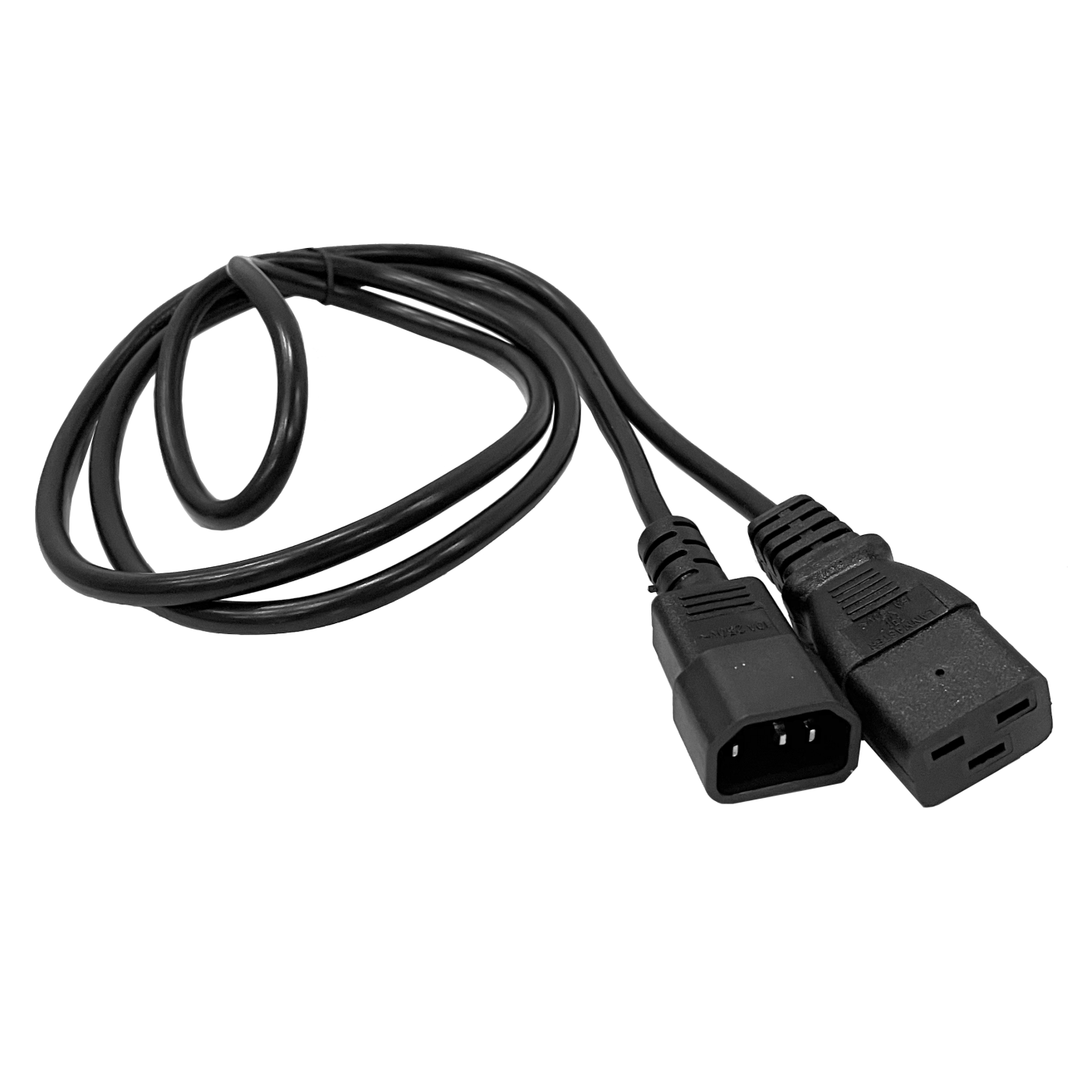

Power cord, C19 to C14, 220V, 10A, black

Power cord, C19 to C14, 220V, 10A, black. Technical characteristics and inquiry information for the LANMASTER catalog.
LAN-PP19/14-x.x-yy

Purpose:

  • Power cord, C19 to C14, 220V, 10A, black for connecting IT and telecommunications equipment to compatible power sources.

Features:

  • Catalog name contains the key configuration, rating, connector type, color, and length where applicable.
  • For project use, request the current datasheet and availability details from LANMASTER or an authorized partner.

Frequently Asked Questions

What is the LAN-PP19/14-x.x-yy cord used for?

The C19-C14 power cord connects equipment fitted with a C14 inlet to the mains supply. One end has a C19 connector, the other a C14 connector.

What are the electrical ratings of the LAN-PP19/14-x.x-yy cord?

The cable is ПВС 3х0,75, the maximum current is 10 A, and the maximum permissible voltage is about 250 V. The cable jacket is PVC that does not support combustion.

What cord lengths are available for the LAN-PP19/14-x.x-yy?

The cord is available in the following lengths: 0.5, 1.0, 1.5, 1.8, 2.0, 3.0, 5.0, 7.0, 10 m.

How are the LAN-PP19/14-x.x-yy cord's connectors made?

Both connectors are overmolded from PVC that does not support combustion, which reduces the risk of fire spreading if the connected equipment develops a fault.

Can equipment be connected with the LAN-PP19/14-x.x-yy cord at a length other than the listed options?

No, LANMASTER does not produce the LAN-PP19/14-x.x-yy cord at lengths other than those listed; use the next longer available length or a separate extension with matching connectors, without exceeding the 10 A maximum current anywhere along the connection.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-PP19/14-0.5-BK pcs 220 × 50 × 50 0.11 0.00055
LAN-PP19/14-1.0-BK pcs 210 × 50 × 50 0.14 0.000525
LAN-PP19/14-1.5-BK pcs 230 × 100 × 100 0.18 0.0023
LAN-PP19/14-1.8-BK pcs 200 × 100 × 100 0.2 0.002
LAN-PP19/14-10-BK pcs 280 × 100 × 100 0.75 0.0028
LAN-PP19/14-2.0-BK pcs 290 × 120 × 30 0.22 0.001044
LAN-PP19/14-3.0-BK pcs 230 × 100 × 100 0.28 0.0023
LAN-PP19/14-5.0-BK pcs 350 × 230 × 30 0.41 0.002415
LAN-PP19/14-7.0-BK pcs 320 × 210 × 40 0.54 0.002688

Product Codes (9)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
