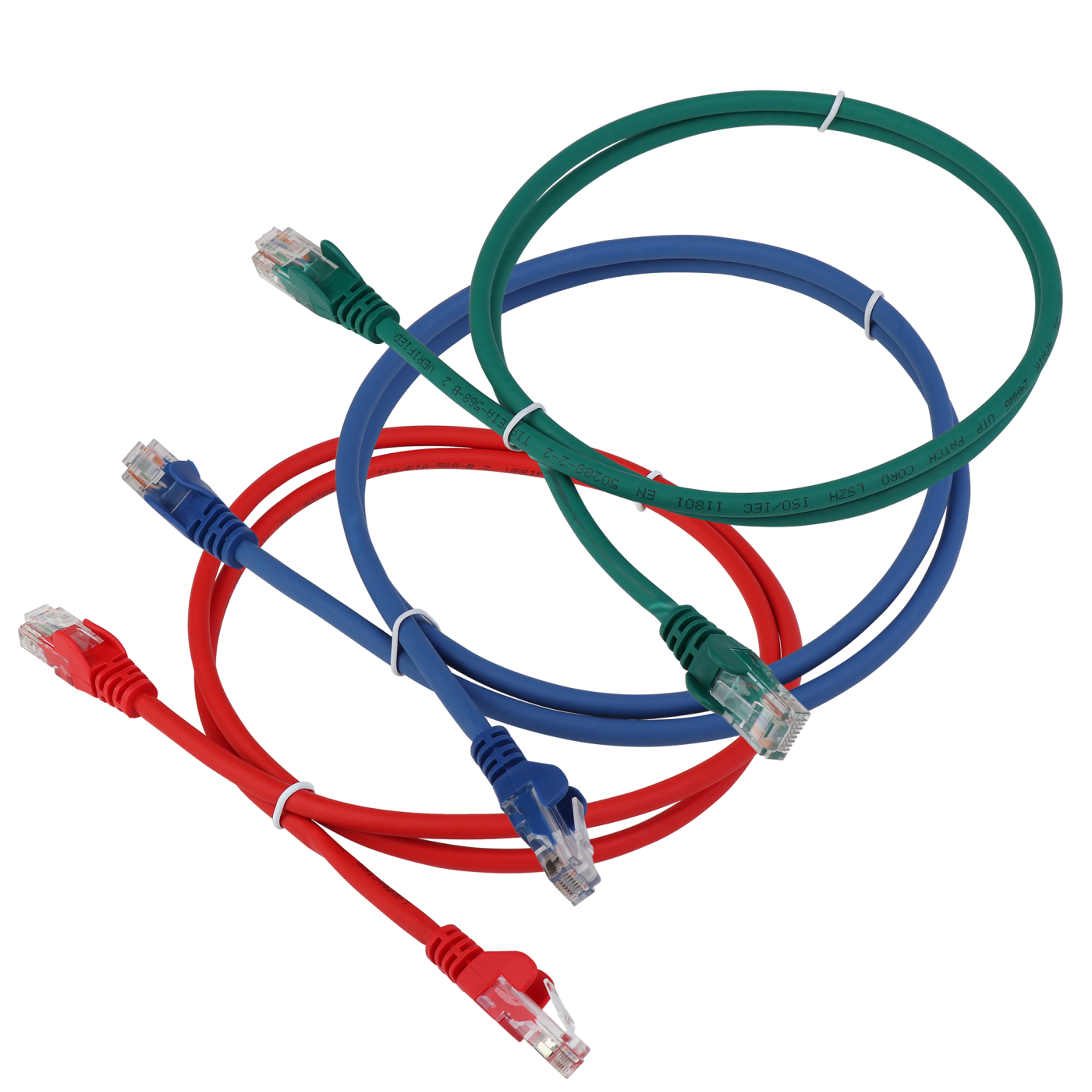

Patch cords is category 5e and fully comply with
ISO/IEC 11801 standards.
The material of the jacket and the molded boot of the
patch cord is low-smoke halogen-free PVC – LSZH (Low Smoke Zero Halogen).
The junction between the RJ-45 plug and the cable is
filled with a plastic to ensure a strong connection between them, such a
connection is called molded.
Special side ribs are provided at the molded part of
the plug to protect the locking latch of the RJ-45 connector from damage and
breakage. This solution does not interfere with pressing the latch.
The plug has flexible strain relief boot, which
provides a given cable bending radius during operation.
Patch cords are available in various lengths:
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
5.0 m
7.0 m
10 m
15 m
Jacket material
LSZH (low smoke zero halogen)
Jacket color
Orange - OR
Conductor diameter
24 AWG (0.511 mm)
Conductor type
Stranded
Nominal velocity of propagation
66%
Compliant with
TIA/EIA 568-C.2 cat. 5e
Specifications:
Tested in accordance with IEC 61935-2.
Mechanical parameters
The cord withstands a longitudinal load of 50N without
separating the plug from the cable or breaking the wires. Protective boot
withstands stress without breaking or peeling.
Electrical parameters
One hundred percent of the manufactured cords are tested for the integrity of
electrical circuits, the absence of short circuits and the correct wiring.
Performance parameters
RL and NEXT parameters are tested.
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (82)
Code
Name
LAN-PC45/U5E-0.5-BL
LANMASTER LSZH UTP cat. 5e patch-cord, 0.5 m, blue
