120 mm fiber raceway end outlet, yellow

120 mm fiber raceway end outlet, yellow LAN-OT120-TS: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OT120-TS

Purpose:

  • ensuring an admissible bending radius and protecting cables from damage when exiting from the open end of the tray.


Package includes:

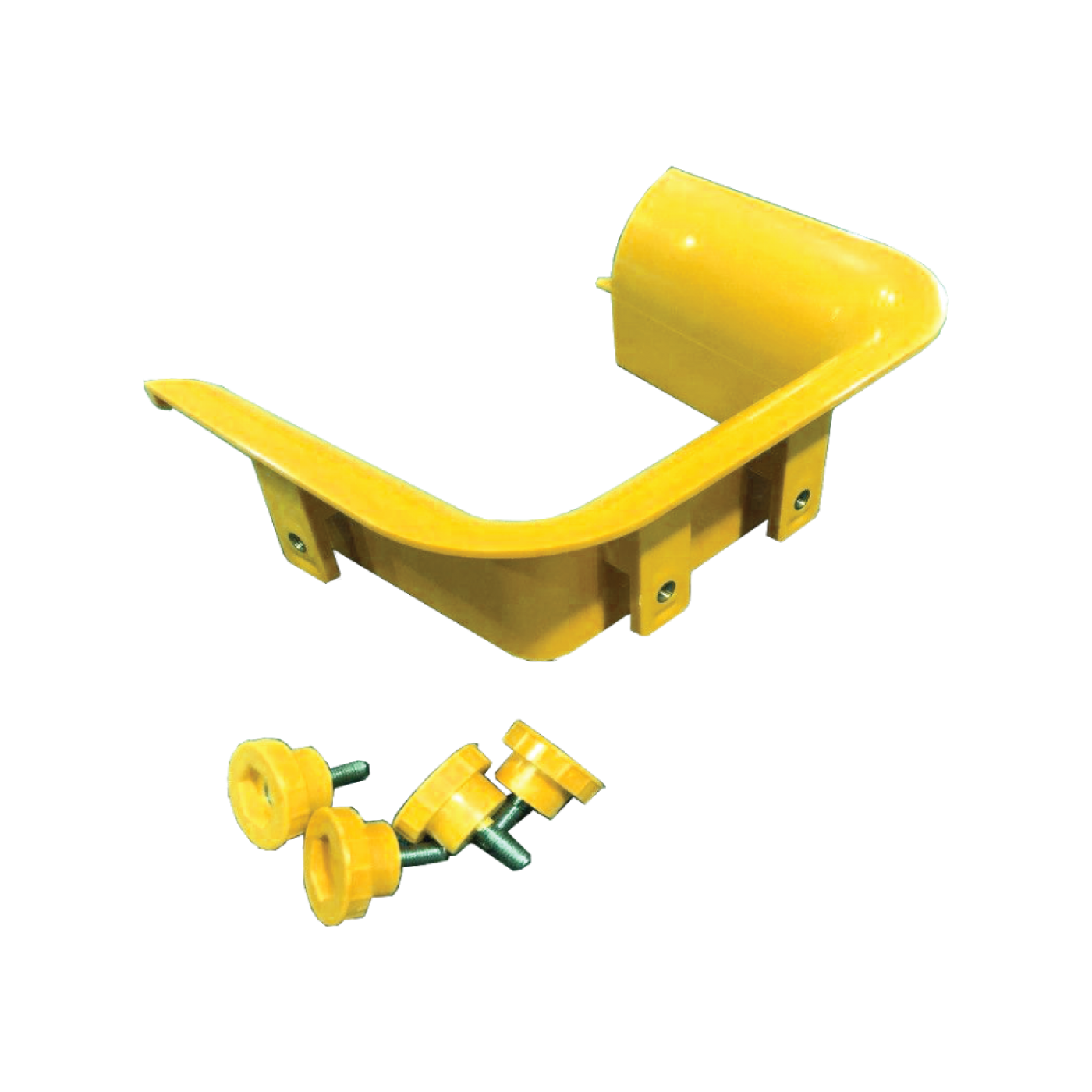

  • fiber raceway end outlet - 1 pc,
  • plastic head cap bolt and plastic nut - 4 pcs.

Frequently Asked Questions

What is the LAN-OT120-TS end overlay for?

The overlay fits onto the open end of a 120 mm optical tray through which a cable exits vertically downward, and it maintains the required bend radius at that point, protecting the cable from damage.

What other widths is this overlay available in?

This type of end overlay is also made for 240 mm trays (LAN-OT240-TS) and 360 mm trays (LAN-OT360-TS).

What does the overlay kit include?

The kit includes one overlay element and four plastic screws for attaching it to the tray.

Why use the overlay instead of leaving the tray end open?

Without the overlay, a cable leaving the tray can bend over the sharp edge of the open end. Industry guidance notes that at points where cable drops out of an overhead tray (waterfall transitions), a smooth radius of at least 50 mm should be provided so the cable doesn't bend over the edge.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-TS pcs 190 × 140 × 80 0.115 0.002128
LAN-OT240-TS pcs 310 × 20 × 80 0.15 0.000496
LAN-OT360-TS pcs 430 × 140 × 130 0.65 0.007826

Product Codes (3)

  • 120 mm fiber raceway end outlet, yellow
  • 240 mm fiber raceway end outlet, yellow
  • 360 mm fiber raceway end outlet, yellow
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
