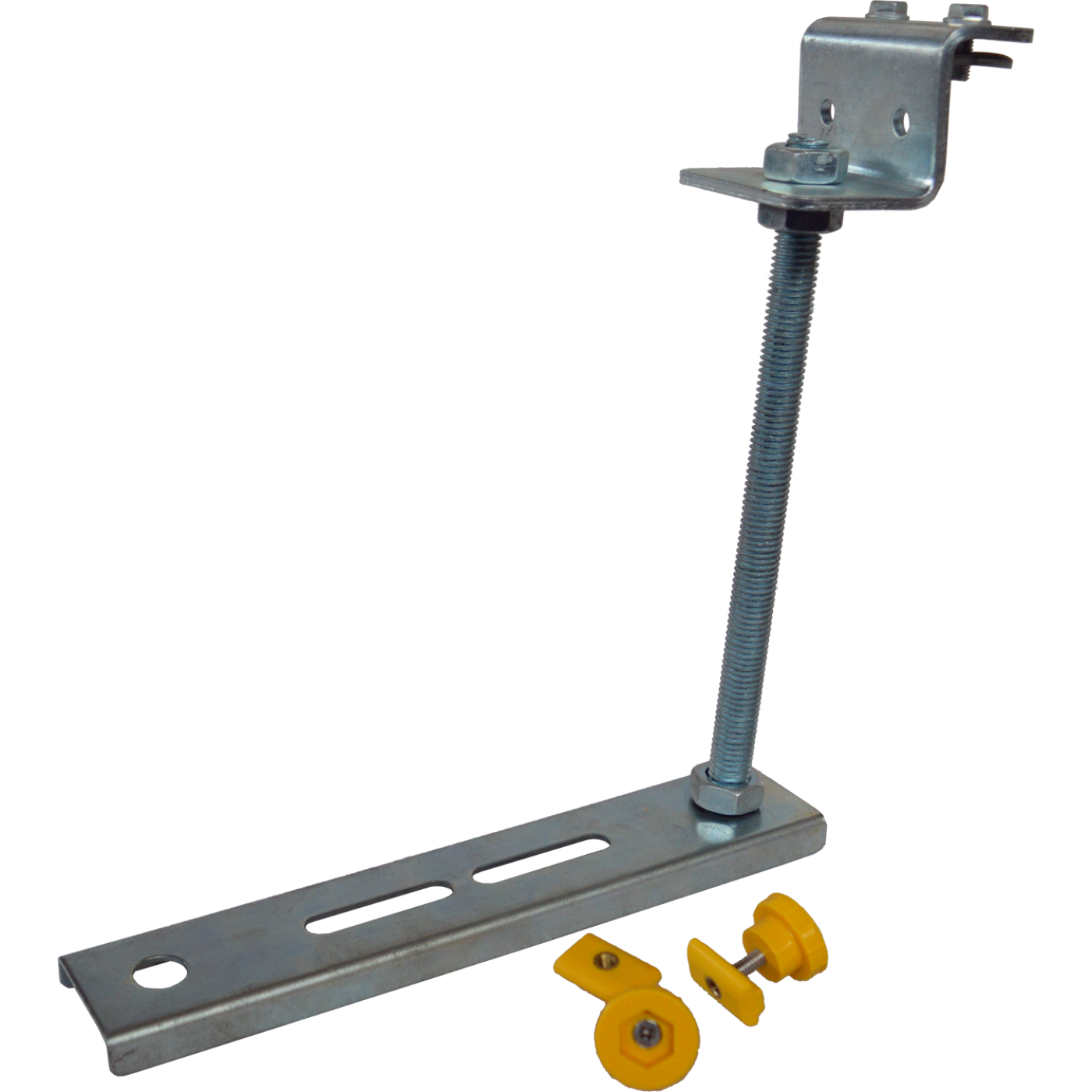

fiber raceway support bracket
fiber raceway support bracket LAN-OTxxx-HS: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OTxxx-HS
Purpose:
- Designed to fasten fiber raceways to a ceiling structure or ladder rack.
Features:
- High load capacity.
- Supports suspended and overhead fiber raceway installation.
Package includes:
- Support bracket - 1 pc.
- Plastic screw and plastic nut - 2 pcs.
Typical application:
- Attaching a fiber raceway to a ceiling structure or to a ladder rack.
Frequently Asked Questions
What is the LAN-OTxxx-HS bracket for?
The bracket attaches an optical tray to a room's ceiling or wall, supporting the route along its length.
What widths is the bracket available in?
The bracket is made for a 120 mm tray (LAN-OT120-HS) and for wider trays in this series, including LAN-OT360-HS (360 mm).
What is the bracket made of?
The bracket is made of metal and plastic and is rated for high load capacity.
How often should brackets be installed along the route?
The manufacturer states a high load capacity for the bracket but doesn't give a fixed spacing for every project — size the support spacing to the total weight of the cables carried and to the deflection guidance adopted on site.
Didn’t find an answer to your question?
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OT120-HS | pcs | 240 × 40 × 28 | 0.8 | 0.000269 |
| LAN-OT240-HS | pcs | 370 × 40 × 230 | 1 | 0.003404 |
| LAN-OT360-HS | pcs | 500 × 40 × 320 | 1.8 | 0.0064 |
Product Codes (3)
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
