fiber raceway support frame

fiber raceway support frame LAN-OTxxx-HF: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OTxxx-HF

Purpose:

  • Designed for fastening fiber raceways to the top of telecommunications cabinets.

Features:

  • High load capacity.
  • Provides a support point for fiber raceway routing above cabinet rows.

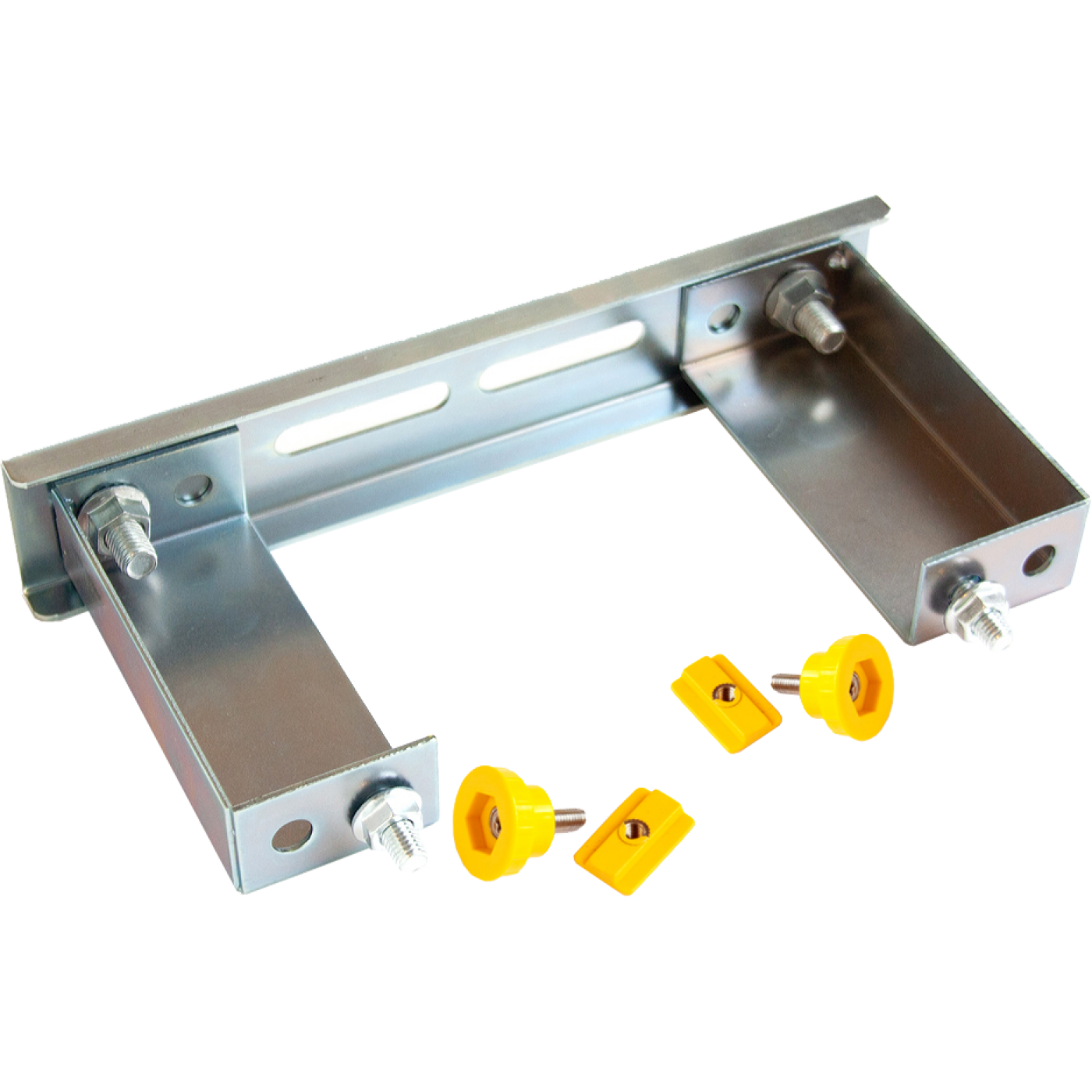

Package includes:

  • Support frame - 1 pc.
  • Plastic screw and plastic nut - 2 pcs.

Typical application:

  • Mounting a fiber raceway route above a telecommunications cabinet.

Frequently Asked Questions

What is the LAN-OTxxx-HF frame for?

The frame attaches any type of optical tray to the roof of a telecom cabinet or rack.

What widths is the frame available in?

The frame is made for tray widths of 120 and 240 mm (LAN-OT120-HF, LAN-OT240-HF).

What does the frame kit include?

The kit includes one support frame, two plastic screws, and two plastic nuts for fastening.

How does the LAN-OTxxx-HF frame differ from the LAN-OTxxx-HS bracket?

The LAN-OTxxx-HF frame mounts on the roof of a cabinet or rack. The LAN-OTxxx-HS bracket attaches the tray to a room's ceiling or wall — these are different types of support points.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-HF pcs 230 × 50 × 130 0.7 0.001495
LAN-OT240-HF pcs 360 × 50 × 130 0.75 0.00234

Product Codes (2)

  • 120 mm fiber raceway support frame
  • 240 mm fiber raceway support frame
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
