fiber raceway trapeze support bar

fiber raceway trapeze support bar LAN-OTxxx-BAR: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OTxxx-BAR

Purpose:

  • Designed for mounting fiber raceways on ceiling threaded rods.

Features:

  • High load capacity.
  • Supports common LANMASTER fiber raceway widths.

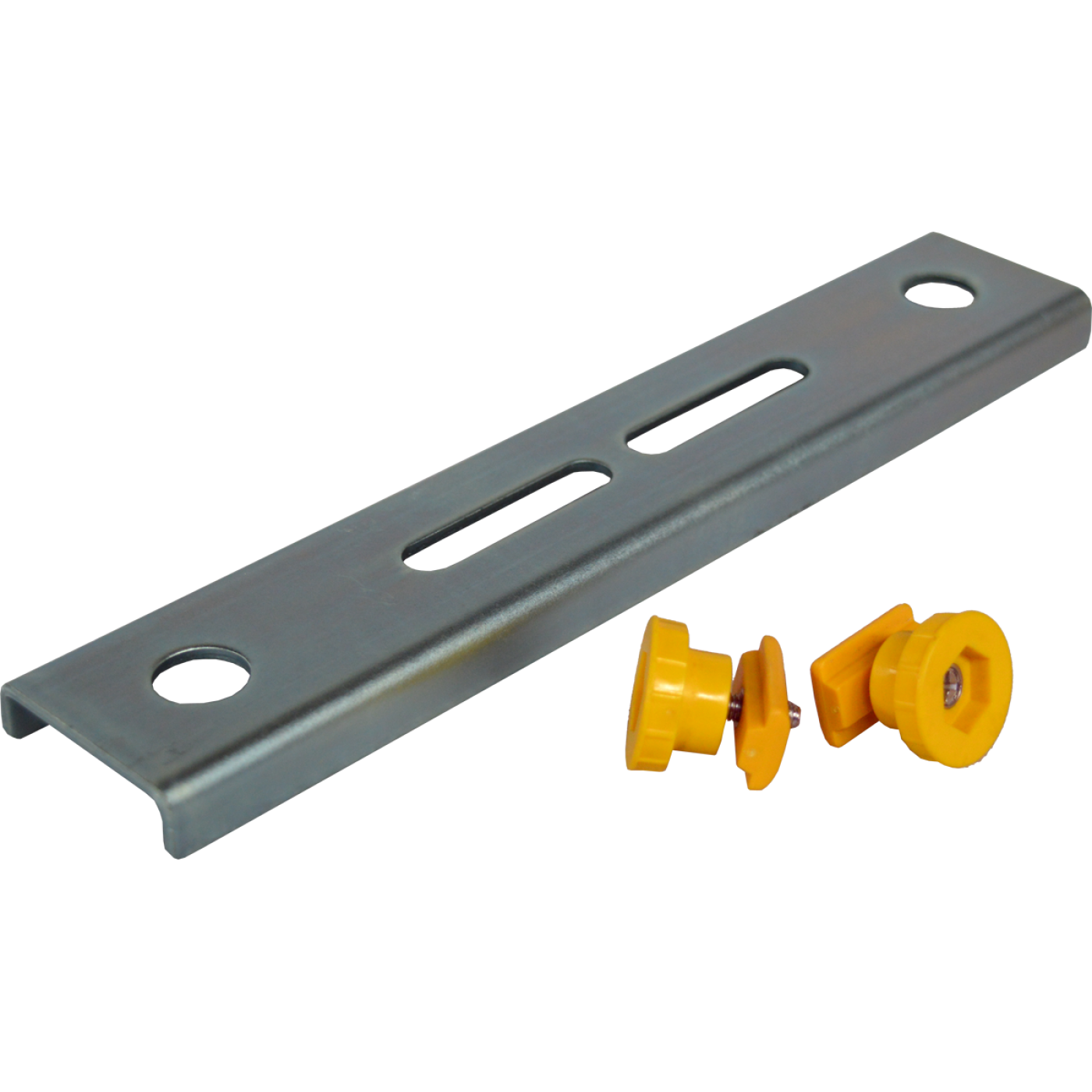

Package includes:

  • Trapeze support bar - 1 pc.
  • Plastic screw and plastic nut - 2 pcs.

Typical application:

  • Suspended installation of a fiber raceway run.

Frequently Asked Questions

What is the LAN-OTxxx-BAR profile for?

The profile attaches any type of optical tray to ceiling threaded rods (anchor studs), suspending the route below the ceiling.

What widths is the profile available in?

The profile is made for tray widths of 120, 240, and 360 mm (LAN-OT120-BAR, LAN-OT240-BAR, LAN-OT360-BAR).

What does the profile kit include?

The kit includes one mounting profile and two plastic screws with two plastic nuts for attaching the tray to the profile.

How does the LAN-OTxxx-BAR profile differ from the LAN-OTxxx-HF frame?

The LAN-OTxxx-BAR profile is built for hanging a tray from ceiling threaded rods. The LAN-OTxxx-HF frame attaches a tray to the roof of a telecom cabinet — a different type of support structure.

Are the threaded rods supplied separately?

Yes, the ceiling threaded rods (anchor studs) themselves are not included in the profile kit and are selected separately to match the ceiling structure on site.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-BAR pcs 250 × 15 × 50 0.24 0.000188
LAN-OT240-BAR pcs 370 × 10 × 50 0.46 0.000185
LAN-OT360-BAR pcs 500 × 15 × 40 0.5 0.0003

Product Codes (3)

  • 120 mm fiber raceway trapeze support bar
  • 240 mm fiber raceway trapeze support bar
  • 360 mm fiber raceway trapeze support bar
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
