LAN-OFC-FUFTx-yy-zz

Application: Indoor/outdoor FTTH drop cable with messenger wire for aerial installation on communication poles, utility poles and lighting poles, between buildings and structures, inside buildings, in cable ducts and pipes, and along external building facades.

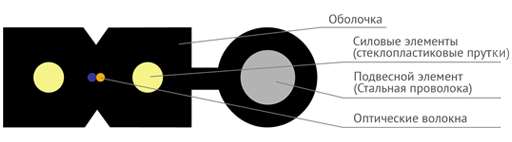

Design: Flat cable with optical fibers, FRP strength members and a steel messenger wire under a common flame-retardant low-smoke halogen-free UV-resistant black jacket.

Fiber identification: standard color coding is used. Check the current product datasheet for the complete color table, dimensions and mechanical parameters.

Operating conditions: see the current product datasheet for temperature range, tensile load, crush resistance and minimum bend radius.

Frequently Asked Questions

What is the LAN-OFC-FUFTx-yy-zz cable used for?

Universal FTTH (Fiber To The Home) drop cable with a steel-wire suspension element. The fibers are loosely laid, the strength members are fiberglass rods, and the black jacket does not propagate flame, is halogen-free and UV-resistant.

Where can this cable be installed?

The cable is intended for aerial installation on communication and power-line poles, lighting poles and between buildings and structures, as well as for installation inside buildings, in cable ducts and pipes and on exterior facades.

How is the part number decoded and which versions are in the series?

In LAN-OFC-FUFTx-yy-zz, x is the fiber count, yy is the fiber type, zz is the jacket (HF or LS) and T is the suspension element. This is the current part number for supplies of FTTH (Fiber To The Home) cable with a suspension element. The series includes versions with 1, 2, 4 fibers. Fiber types: S7 — G.657 single-mode fiber with low bend loss. Jacket: LS — nг(А)-LS jacket: does not propagate flame in bunched installation (category A), reduced smoke and gas emission. Choose the version by fiber count, fiber type and installation conditions.

What temperatures and forces are permitted during installation and operation?

Operating temperature is −40 to +60 °C and installation temperature is −10 to +50 °C. The permitted tensile force is 600 N short-term and 300 N long-term.

What is the minimum bend radius of the cable?

The minimum bend radius is 10 cable diameters for static installation and 20 cable diameters for dynamic installation.

How are fibers identified by color?

Fibers are identified by color code: 1 — blue, 2 — orange, 3 — green, 4 — brown.

Does a cable with metal elements need to be grounded?

If the cable contains metal elements (steel armor, steel wire or messenger), provide for their grounding and termination at the building entry according to the project and applicable standards. Metal elements must not be left ungrounded at the building entry or in areas exposed to lightning and induced currents.

What tools prepare the cable and how are the fibers terminated?

Separate the optical part from the suspension element, remove the jacket of the optical part and take out the fibers. For flat drop cable the LAN-FT-STR/FTTH tool is suitable; check the cable against the tool profile. Then strip the 900 µm buffer and 250 µm acrylate coating from the fiber with a stripper such as LAN-FT-STR/OFC, clean the fiber and cleave it. Fibers are terminated with pigtails (fusion splice or the LAN-FMS mechanical splice) or with field-installable connectors.
