Outdoor FTTH cable

Outdoor FTTH cable LAN-OFC-FOFxx-S7-PE: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OFC-FOFxx-S7-PE

Subscriber cable for FTTH networks, has small size and high flexibility. Two strength members provide protection against mechanical stress. For additional protection, the optical fibers are housed in a micro-module. The jacket is made of polyethylene.
The jacket color is black.

Design:

Weight and dimensions

Fiber count 1-4
Cable outer dimensions (±0.2) mm 4*2.5
Cable outer dimensions (±0.2) mm 1.5
Cable weight(±2) kg/km 13.5

Color identification of optical fibers

№ Fibers 1-4
1

Blue

2

Orange

3

Green

4

Brown

Operating conditions

Minimum Bend Radius Without Pulling Tension 30 cable diameters
With Pulling Tension 60 cable diameters
Temperature range(℃) Temperature range -20~+60
Storage -20~+60
Operating -20~+60

Operating

№ Specification Value
1 Maximum pulling tension (short term impact) 80 N
2 Maximum crush resistance (short term impact) 1000 (N/100mm)

Attenuation:

Wavelength Units G652 SM
1550nm dB/km ≤ 0.21
1310nm dB/km ≤0.35

Applicable optical fibers:

Identifier Description
SU Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S2 Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
S5 Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation)
S7 Single-mode with low bending loss (ITU-T G.657 recommendation)
M1 Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2 Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.3 type requirements)
Product code Description
LAN-OFC-FOFn-yy-zz Outdoor FTTH Drop Cable, flat, FRP, PE, n fibers, G657 SM/OS2 Ultra/OS2/OM1/OM2/OM3/OM4, black

n - fiber count

yy - fiber type (SU,S2, S5, S7, M1, M2, M3, M4)

zz - jacket type is PE (polyethylene)

Frequently Asked Questions

What is the LAN-OFC-FOFxx-S7-PE cable used for?

Outdoor subscriber cable for FTTH (Fiber To The Home) networks — small and flexible. Two strength members protect against mechanical stress, the fibers are additionally protected by a microtube, and the jacket is black polyethylene.

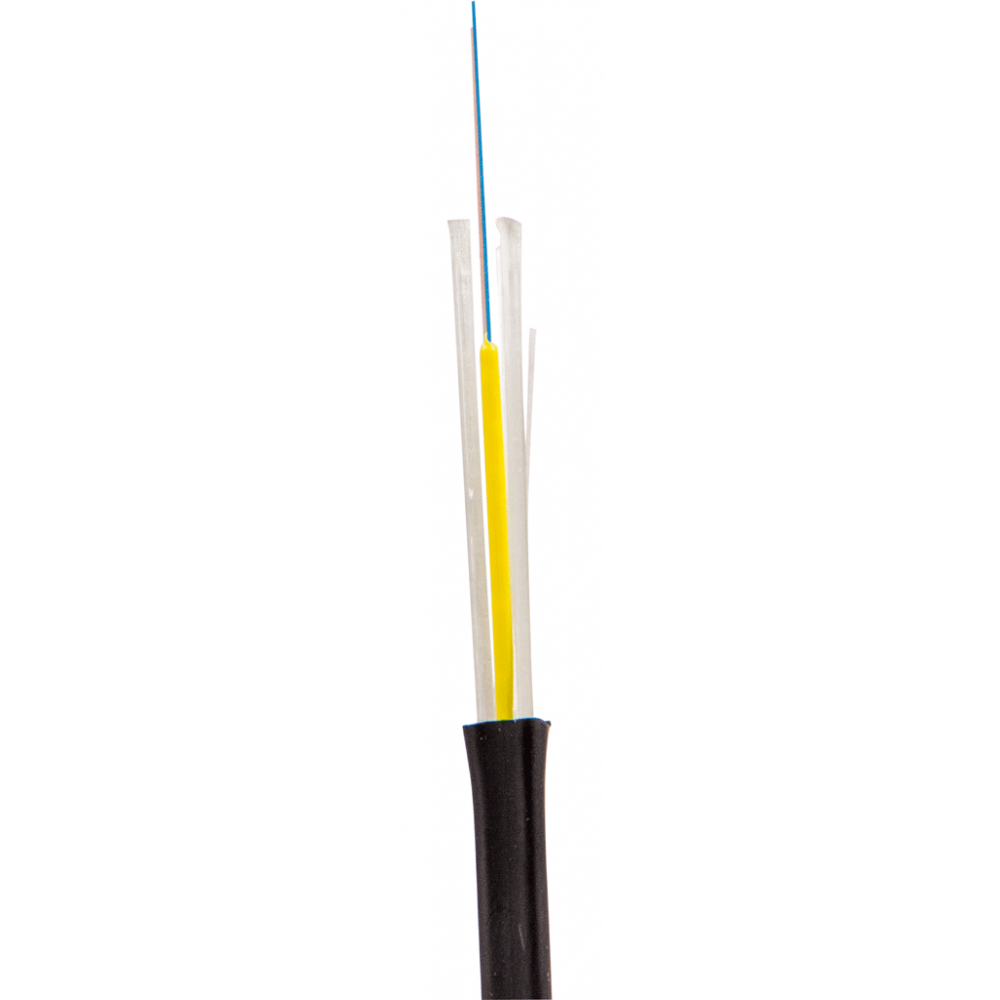

LAN-OFC-FOFxx-S7-PE product

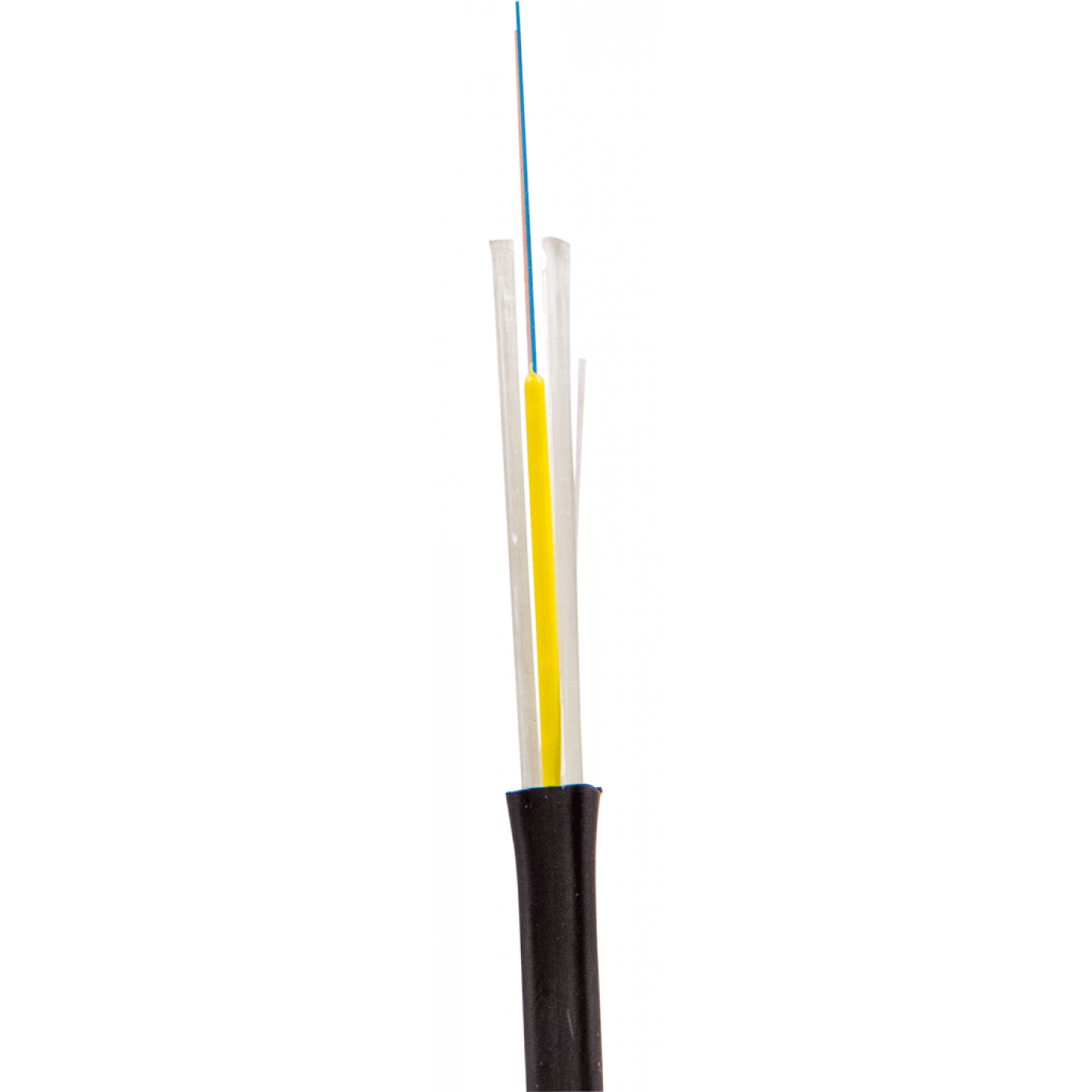

LAN-OFC-FOFxx-S7-PE product
Where can this cable be installed?

The cable is intended for outdoor installation. It has no messenger, so for spans between poles use the version with a messenger, LAN-OFC-FOFxx-S7-PE-T.

How is the part number decoded and which versions are in the series?

In LAN-OFC-FOFxx-S7-PE, xx is the fiber count, S7 is the fiber type and PE (polyethylene) is the polyethylene jacket. The series includes versions with 1, 2, 4 fibers. Fiber types: S7 — G.657 single-mode fiber with low bend loss. Jacket: PE — polyethylene jacket. Choose the version by fiber count, fiber type and installation conditions.

What temperatures and forces are permitted during installation and operation?

Installation, transport, storage and operating temperature is −20 to +60 °C. The short-term permitted tensile force is 80 N and the crush force is 1000 N per 100 mm. Single-mode fiber attenuation: no more than 0.21 dB/km at 1550 nm and no more than 0.35 dB/km at 1310 nm.

What is the minimum bend radius of the cable?

The minimum bend radius is 30 cable diameters without tension and 60 cable diameters under tension. Avoid sharp bends at building corners.

How are fibers identified by color?

Fibers are identified by color code: 1 — blue, 2 — orange, 3 — green, 4 — brown.

What tools prepare the cable and how are the fibers terminated?

Remove the cable jacket without damaging the microtube with the fibers and open the microtube. Check the cable against the tool profile before using a stripper for flat drop cable. Then strip the 900 µm buffer and 250 µm acrylate coating from the fiber with a stripper such as LAN-FT-STR/OFC, clean the fiber and cleave it. Fibers are terminated with pigtails (fusion splice or the LAN-FMS mechanical splice) or with field-installable connectors.

Didn’t find an answer to your question?

Product Codes (3)

  • Outdoor FO FTTH Drop cable, flat, FRP, PE, 1 fiber, G657 SM, black
  • Outdoor FO FTTH Drop cable, flat, FRP, PE, 2 fibers, G657 SM, black
  • Outdoor FTTH drop fiber optic cable, flat, FRP, PE, 4 fibers, SM G657, black
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
