LAN-OFC-FOFxx-S7-PE-T

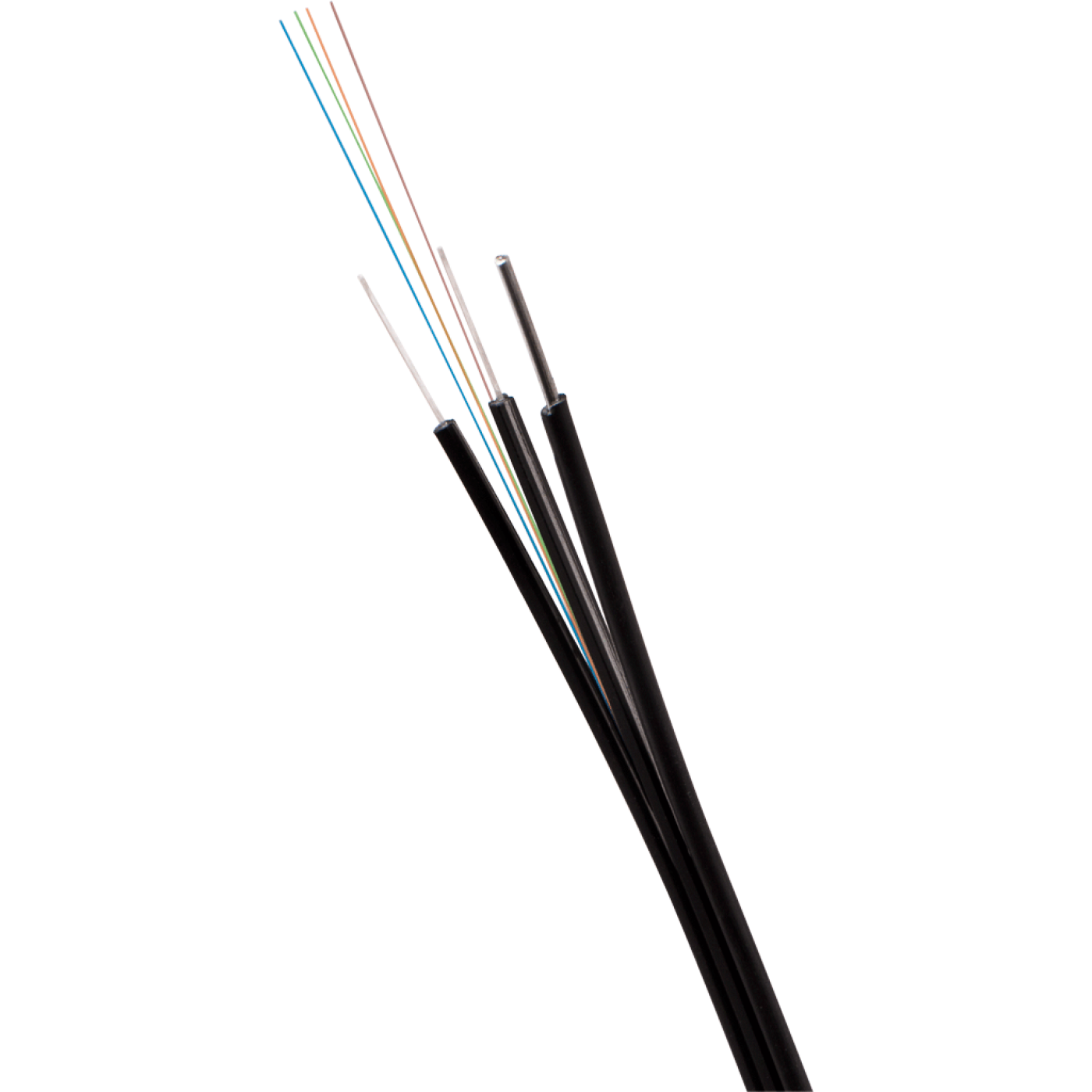

Subscriber cable for FTTH networks, has small size and high flexibility. Two strength members provide protection against mechanical stress. Steel rope messenger is combined with the cable to form a "figure-of-eight" structure. The jacket is made of polyethylene. The jacket color is black.

Design:

Weight and dimensions

Fiber count 1-4
Cable outer dimensions (±0.2) mm 2.5*6
Cable weight(±2) kg/km 17

Color identification of optical fibers

№ Fibers 1-4
1

Blue

2

Orange

3

Green

4

Brown

Operating conditions

Minimum Bend Radius Without Pulling Tension 30 cable diameters
With Pulling Tension 60 cable diameters
Temperature range(℃) Installation -20~+60
Storage -20~+60
Operating -20~+60

Physical specifications

№ Specification Value
1 Maximum pulling tension (short term impact) 600 N
2 Maximum crush resistance (short term impact) 1000 (N/100mm)

Attenuation:

Wavelength Units G652 single-mode
1550nm dB/km ≤ 0.21
1310nm dB/km ≤0.35

Applicable optical fibers:

Identifier Description
SU Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S2 Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
S5 Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation)
S7 Single-mode with low bending loss (ITU-T G.657 recommendation)
M1 Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2 Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.3 type requirements)
Product code Description
LAN-OFC-FOFn-yy-zz-T Outdoor FTTH Drop cable with messenger, flat, FRP, PE, n fibers, SM G657/OS2 Ultra/OS2/OM1/OM2/OM3/OM4, black

n - fiber count

yy - fiber type (SU, S2, S5, S7, M1, M2, M3, M4)

zz - jacket type is PE (polyethylene)

T - messenger wire

Frequently Asked Questions

What is the LAN-OFC-FOFxx-S7-PE-T cable used for?

Outdoor FTTH (Fiber To The Home) subscriber cable with a steel-wire messenger integrated with the cable into a figure-8 structure. Two strength members protect the fibers from mechanical stress and the jacket is black polyethylene.

LAN-OFC-FOFxx-S7-PE-T product
LAN-OFC-FOFxx-S7-PE-T product
Where can this cable be installed?

The cable is intended for aerial installation on poles and between buildings. The messenger takes the load, so secure the cable by the messenger with tension and suspension clamps, not by the optical part.

How is the part number decoded and which versions are in the series?

In LAN-OFC-FOFxx-S7-PE-T, xx is the fiber count, S7 is the fiber type, PE (polyethylene) is the polyethylene jacket and T is the messenger. The series includes versions with 1, 2, 4 fibers. Fiber types: S7 — G.657 single-mode fiber with low bend loss. Jacket: PE — polyethylene jacket. Choose the version by fiber count, fiber type and installation conditions.

What temperatures and forces are permitted during installation and operation?

Installation, transport, storage and operating temperature is −20 to +60 °C. The short-term permitted tensile force is 600 N and the crush force is 1000 N per 100 mm. Single-mode fiber attenuation: no more than 0.21 dB/km at 1550 nm and no more than 0.35 dB/km at 1310 nm.

What is the minimum bend radius of the cable?

The minimum bend radius is 30 cable diameters without tension and 60 cable diameters under tension.

How are fibers identified by color?

Fibers are identified by color code: 1 — blue, 2 — orange, 3 — green, 4 — brown.

Does a cable with metal elements need to be grounded?

If the cable contains metal elements (steel armor, steel wire or messenger), provide for their grounding and termination at the building entry according to the project and applicable standards. Metal elements must not be left ungrounded at the building entry or in areas exposed to lightning and induced currents.

What tools prepare the cable and how are the fibers terminated?

Separate the optical part from the messenger along the figure-8 web, remove the jacket from the optical part without damaging the microtube and open the microtube. Then strip the 900 µm buffer and 250 µm acrylate coating from the fiber with a stripper such as LAN-FT-STR/OFC, clean the fiber and cleave it. Fibers are terminated with pigtails (fusion splice or the LAN-FMS mechanical splice) or with field-installable connectors.

Didn’t find an answer to your question?

Product Codes (3)

  • Outdoor FTTH Drop cable with messenger, flat, FRP, PE, 1 fiber, G657 SM, black
  • Outdoor FTTH Drop cable with messenger, flat, FRP, PE, 2 fibers, G657 SM, black
  • Outdoor FTTH Drop cable with messenger, flat, FRP, PE, 4 fibers, G657 SM, black
