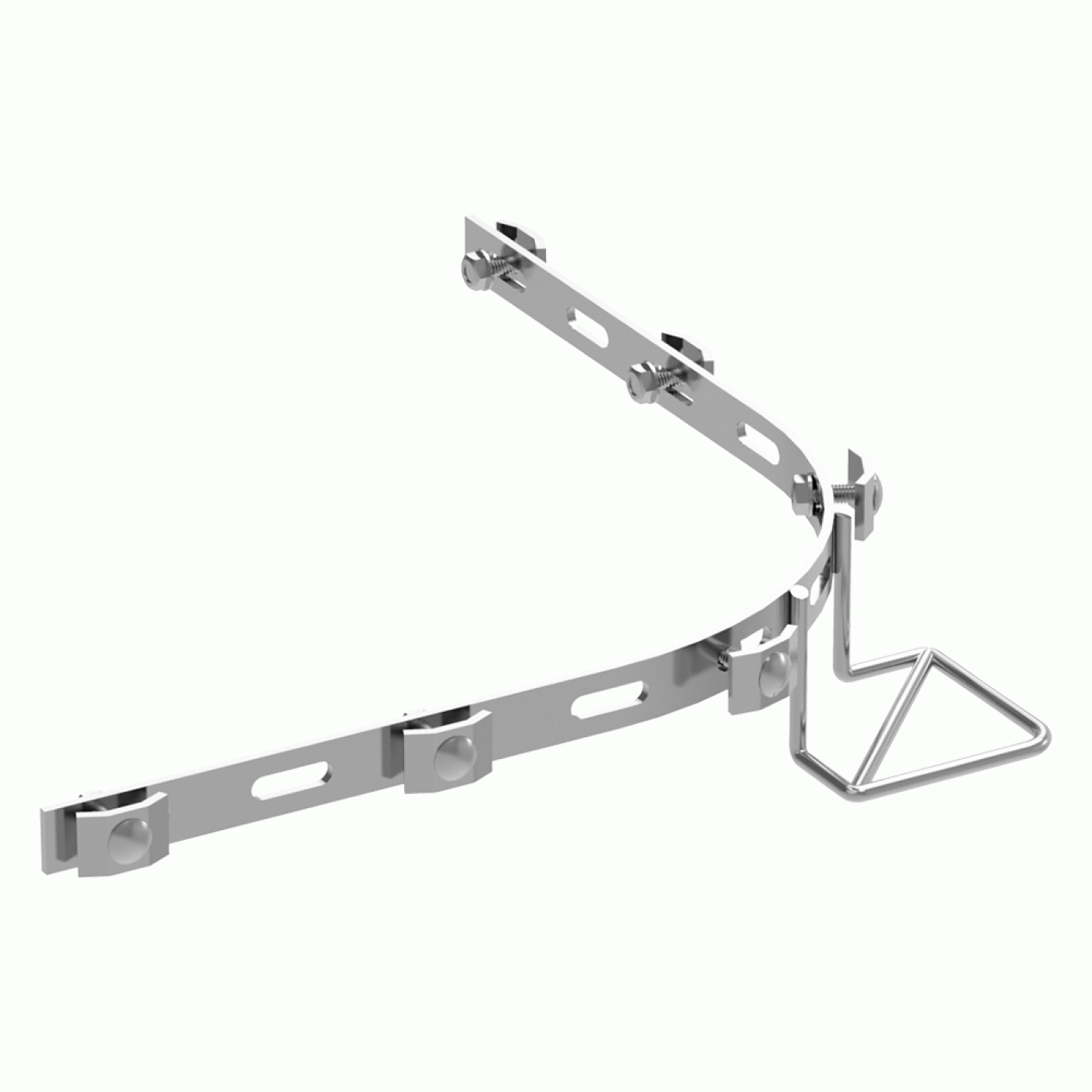

Smooth bend splice bar for MT100 tray

Smooth bend splice bar for MT100 tray LAN-MT-CR100-EZ: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-MT-CR100-EZ

Purpose:

  • making of tees and intersection for trays with 100 mm or 150 mm height.

Tray wire diameter:

  • 3.5 mm – 6.0 mm.

Features:

  • very strong splicing,
  • ease of installation.

Kit includes:

  • smooth bend splice bar - 1 pc.,
  • clamp washer - 6 pcs.,
  • M6 x 20 bolt - 6 pcs.,
  • M6 nut - 6 pcs.

Frequently Asked Questions

What is the LAN-MT-CR100-EZ connector used for?

The rounded angle connector forms bends and crossings for trays 100 mm and 150 mm high.

What tray wire diameter does the connector fit?

The connector fits wire mesh trays with a wire diameter from 3.5 to 6.0 mm.

What does the connector kit include?

The kit includes: rounded angle plate — 1 pc, upper plate — 6 pcs, M6x20 bolt — 6 pcs, M6 nut — 6 pcs.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-MT-CR100-EZ pcs 450 × 150 × 250 0.15 0.016875

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
