LANMASTER, gray

LANMASTER, gray for copper structured cabling systems. LANMASTER product information, specifications and part number details.
LAN-MBPG-xx-GY

LANMASTER, gray. Product for LANMASTER copper structured cabling systems. Use according to the project design and product specifications.

Most frequently asked questions and answers

What is the cable gland LAN-MBPG-xx-GY used for?

The plastic cable entry (cable gland) is intended for leading cables with a diameter of 4 to 8 mm into boxes and enclosures with IP68 protection, protecting their interior from dust, dirt and moisture. It is installed in a hole of 16 mm diameter and must be secured from the inside with the fixing nut.

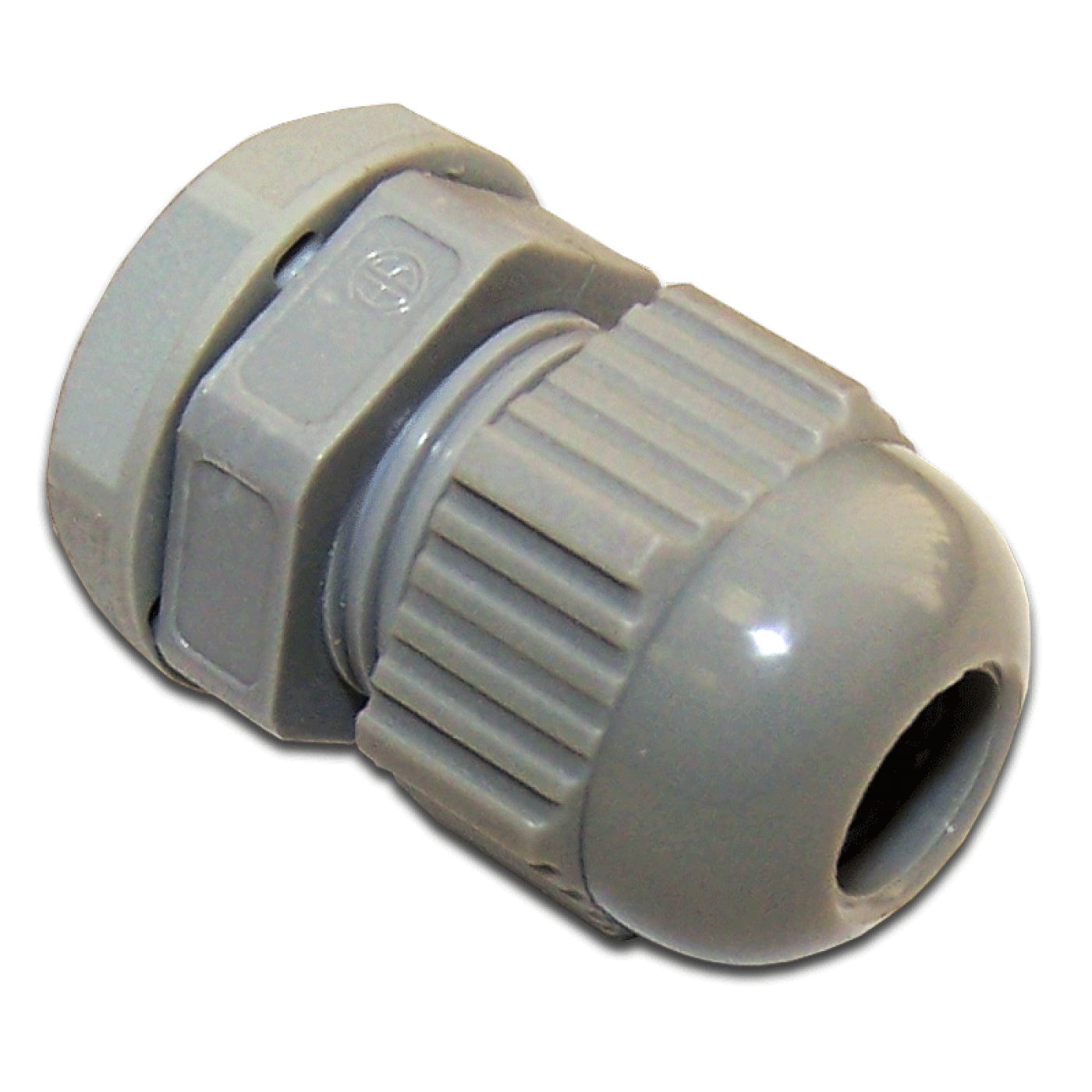

LANMASTER, gray LAN-MBPG-xx-GY

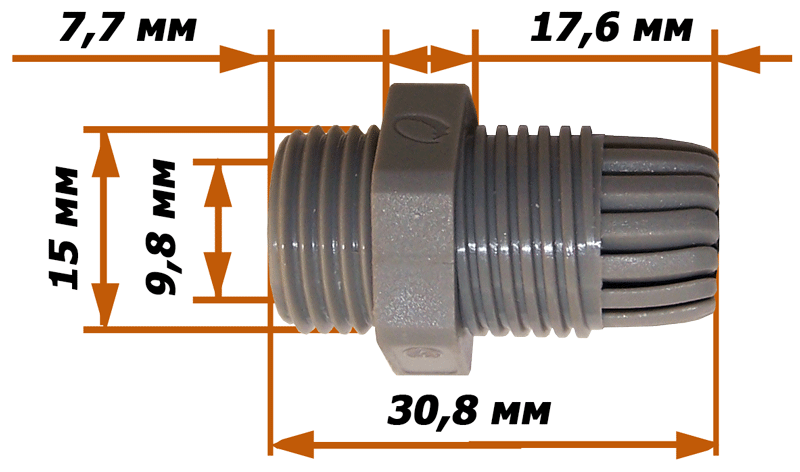

Appearance LAN-MBPG-xx-GY

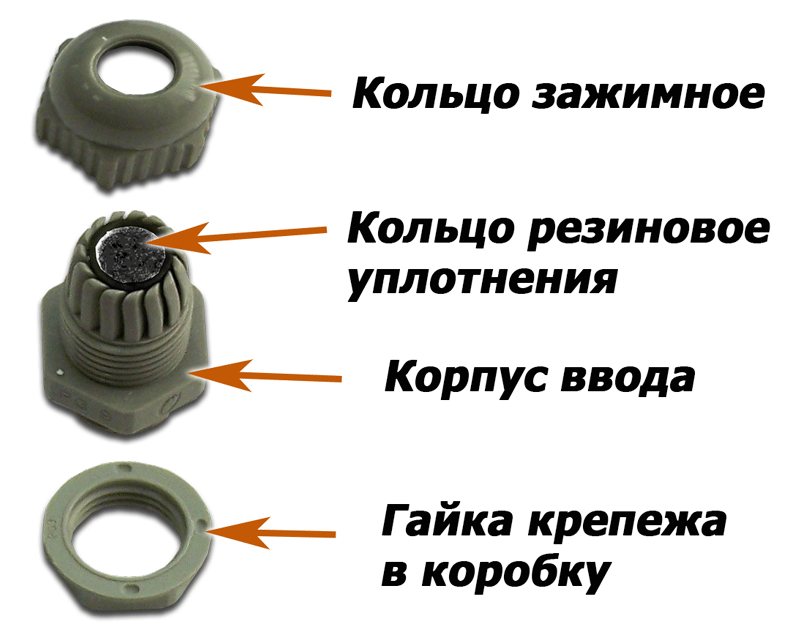

How do I install the cable gland LAN-MBPG-xx-GY?

Install the gland in the 16 mm hole, tighten the nut from the inside, pass a cable of suitable diameter through and tighten the cap to ensure tightness.

What should I do to keep the protection class of the LAN-MBPG-xx-GY?

The protection class is maintained only if the product is installed correctly: secure connections fully, close unused ports with the covers intended for this, route cables through sealed glands of the suitable diameter and tighten fasteners without distortion. Replace a damaged seal.

What should I do if the product LAN-MBPG-xx-GY does not lock in place or works incorrectly?

Check that the product is installed all the way, the latches have engaged and the size and version match the mounting position. Make sure the cables are terminated by the same scheme at both ends of the link and have no open or short circuit; reinstall the product or redo the termination if necessary.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-MBPG-09-GY pcs 30 × 20 × 20 0.006 0.000012
LAN-MBPG-11-GY pcs 35 × 25 × 25 0.009 0.000022

Product Codes (2)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
