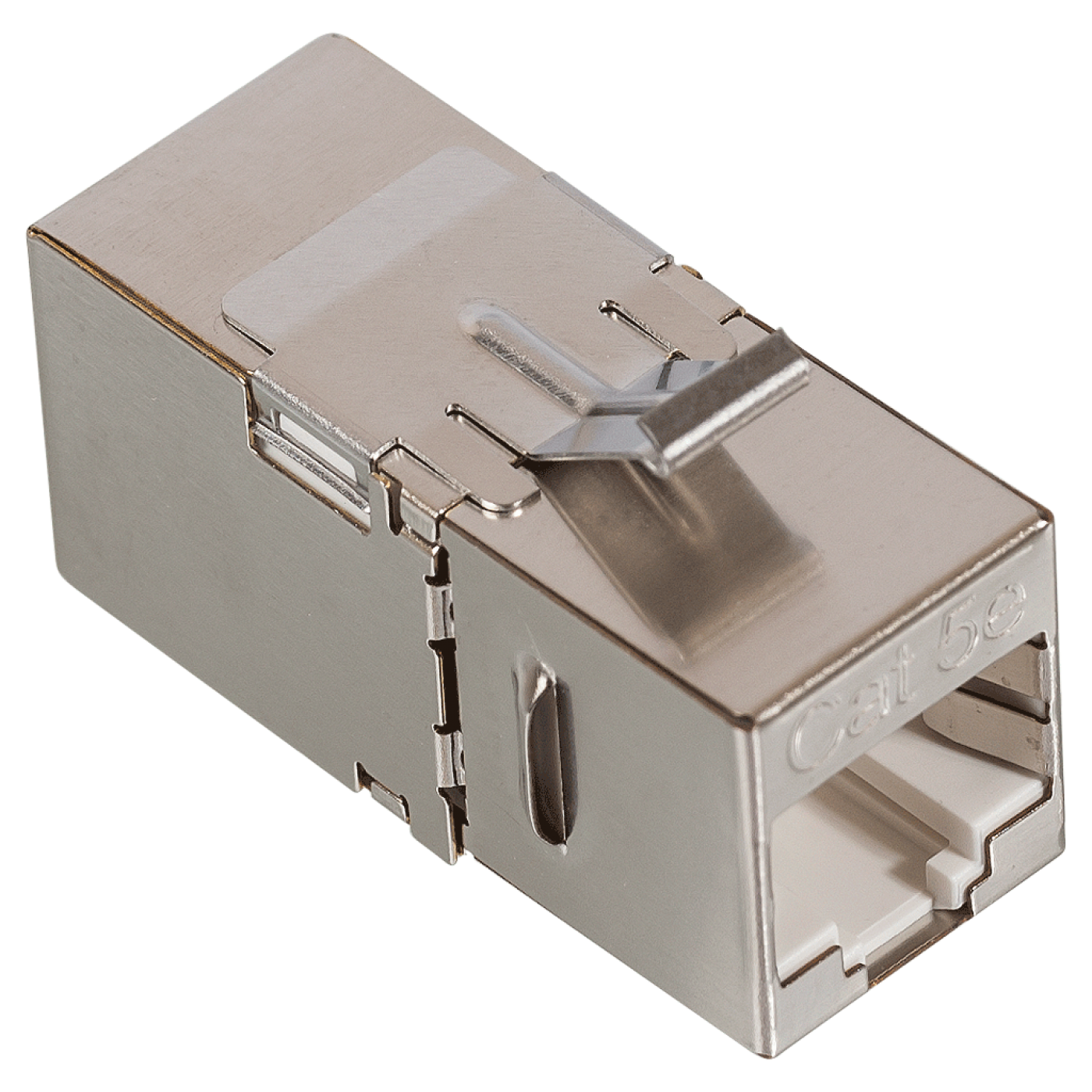

LANMASTER, Category 5e, RJ45 keystone jack, 90-degree, 45-degree, shielded
Socket coupler can be used for installation in patch panels, as well as for completing shielded telecommunication sockets installed in a wall box.
They are used for quick connection of pre-terminated cable assemblies when organizing SCS, including in DCs (Data Centers).
It has a standard Keystone form-factor and can be installed in sockets and panels from other manufacturers.
Most frequently asked questions and answers
What is the LAN-KCP45S5E/90 Keystone port repeater used for?
The port repeater (through RJ-45 adapter) is installed in modular patch panels and in shielded telecommunication outlets installed in a box, on a wall or in a wall. It is used for quick connection of pre-terminated cable links and assemblies when building an SCS (structured cabling system), including in data centres. It has the standard Keystone size and is installed in outlets and panels of other manufacturers. It complies with the requirements of category 5e.
How do I install the LAN-KCP45S5E/90 port repeater?
Insert the repeater into a Keystone-format socket from the front until the latches click and connect cords with RJ-45 connectors from both sides. Use shielded cords and a grounded panel to maintain screen continuity. Secure the cords so that their weight is not transferred to the connectors.
How does the LAN-KCP45S5E/90 port repeater affect link length and speed?
The port repeater is a passive connection: it does not amplify the signal and adds loss at the joint. The total link length including all cords must not exceed the value permitted for the category; the link category is determined by its weakest component.
What should I do if the link with the repeater LAN-KCP45S5E/90 does not work or works unstably?
Check that the conductors are connected by the same scheme at both ends of the link, that there is no open or short circuit and that all connectors are intact and fully latched. Check the link with a tester and make sure the category of all components is not lower than required.
What should I do if the product LAN-KCP45S5E/90 does not work or works unstably?
Check that the connectors are fully latched, the conductors are connected by the same scheme at both ends of the link and there is no open or short circuit. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.
Can LAN-KCP45S5E/90 still be ordered if it has been discontinued?
The product has been discontinued, but some quantity is still available for shipment: an order is possible only within the remaining stock at the warehouse of the manufacturer and distributors. For new projects choose current products of the same category.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-KCP45S5E/90 | pcs | 35 × 15 × 20 | 0.013 | 0.000011 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-KCP45S5E/90 | box | 310 × 135 × 200 | 1.457 | 0.00837 |
