Ferrite bead for power cord

Ferrite bead for power cord. Technical characteristics and inquiry information for the LANMASTER catalog.
Discontinued
LAN-FF-xx-BK

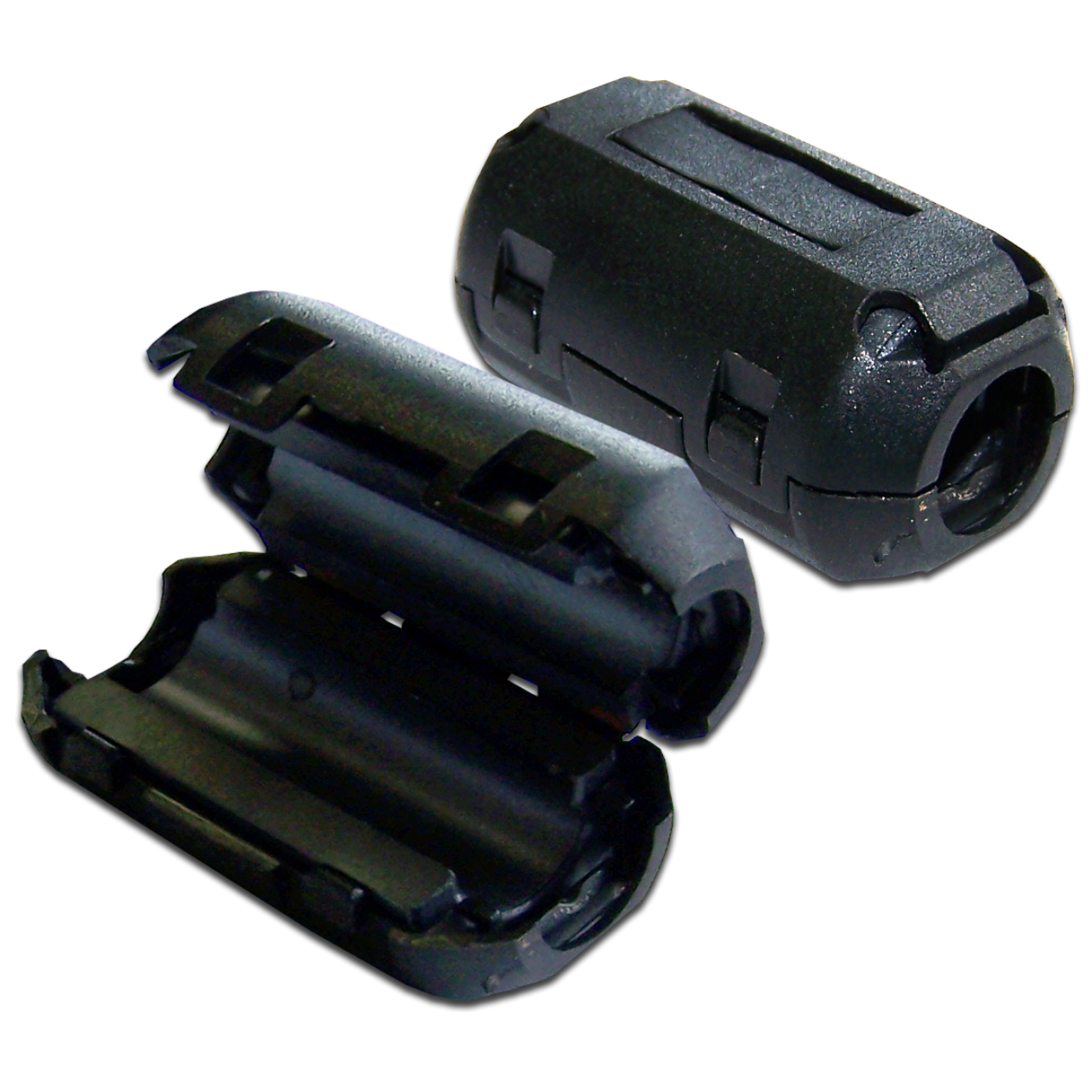

The ferrite bead is meant to install on the power cord to reduce EMI generated by the power cord. It is recommended to install the bead at a distance of approximately 3 cm from the power plug. The bead is fixed with a latch. Beads are available in different sizes for power cords of various cross sections.

Frequently Asked Questions

What is the LAN-FF-xx-BK ferrite filter used for?

The ferrite filter clips onto a power cord and suppresses high-frequency electromagnetic interference that the cable may radiate or induce onto nearby lines.

How do I install the ferrite filter on a cord?

Fit the filter onto the cable about 3 cm from the plug and close the filter body's latch to secure it.

What sizes of ferrite filter are available, and how do I choose the right one?

Two versions are available: LAN-FF-0.75-BK for 3x0.75 mm² cable, and LAN-FF-1.50-BK for 3x1.5 mm² cable. Choose the version that matches the cross-section of the power cord you're installing it on.

Can the ferrite filter be removed and reinstalled on a different cable?

The filter clips onto the cable with a latch on its body that can be opened and closed again, so it can be removed and fitted to another cord of a matching cross-section.

Is the LAN-FF-xx-BK ferrite filter currently available to order?

Production of this item is currently on hold; only remaining stock at the manufacturer and distributors is available for sale. Check availability of the specific version (0.75 or 1.50) with a LANMASTER partner before ordering.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-FF-0.75-BK pcs 30 × 10 × 10 0.01 0.000003
LAN-FF-1.50-BK pcs 35 × 15 × 15 0.02 0.000008

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-FF-0.75-BK pcs 30 × 15 × 15 0.012 0.000007

Product Codes (2)

  • Ferrite bead with a latch for 3x0.75 mm2 power cord, black
  • Ferrite bead with a latch for 3x1.5 mm2 power cord, black
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
