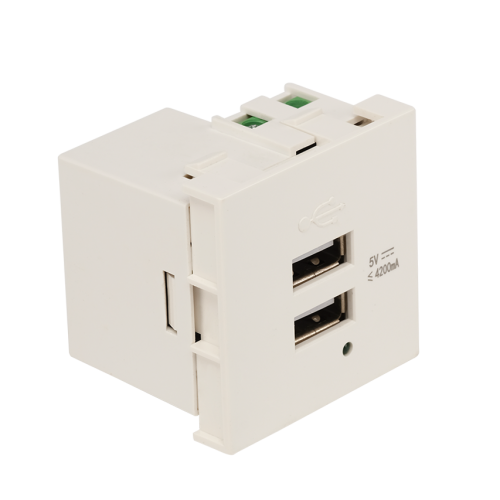

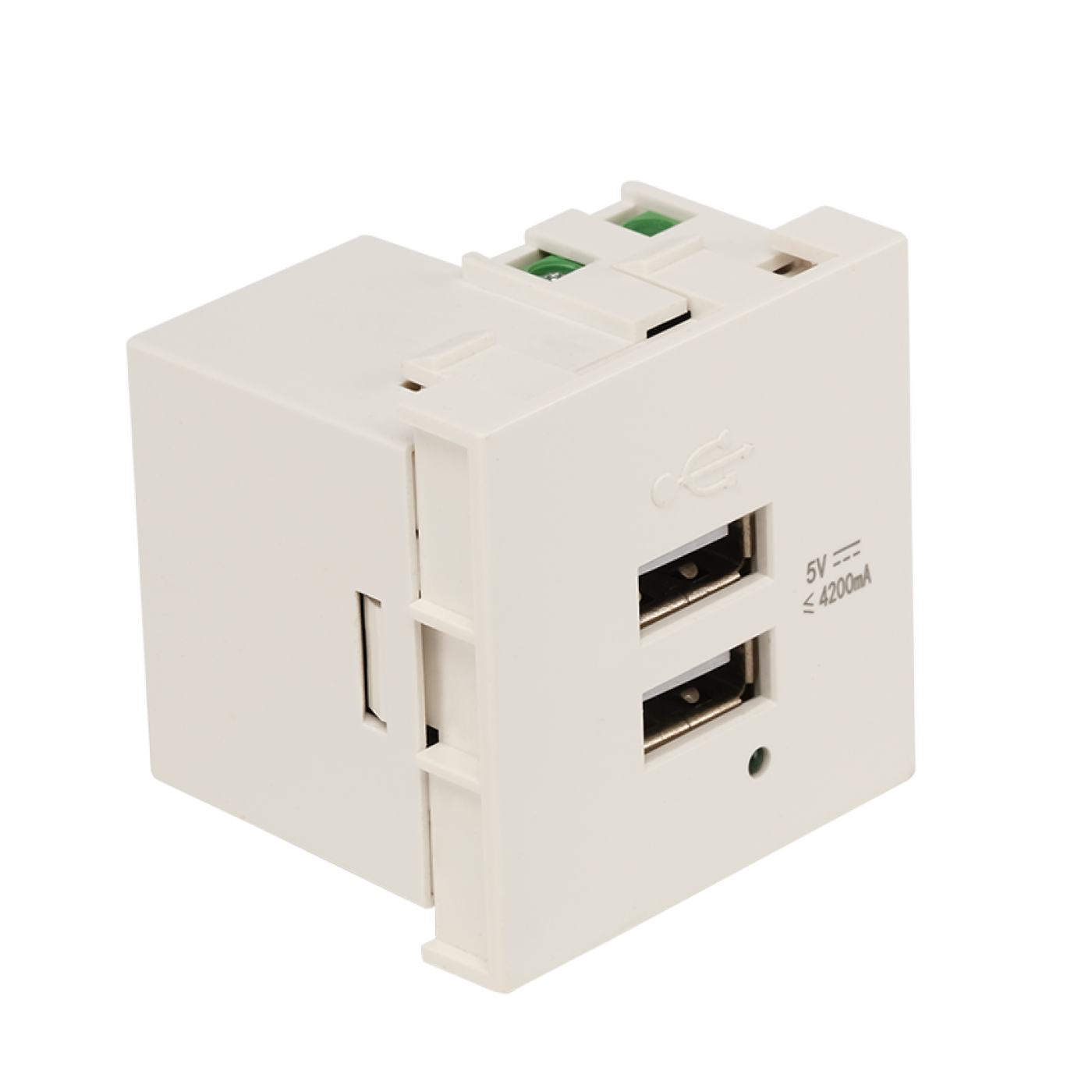

USB charger module, two USB-A ports, 4.2A/5V, 45x45, white

USB charger module, two USB-A ports, 4.2A/5V, 45x45, white. Technical characteristics and inquiry information for the LANMASTER catalog.
LAN-EZ45x45-2UAA/4.2-WH

Purpose:

  • USB charger module, two USB-A ports, 4.2A/5V, 45x45, white for Mosaic-format electrical installations.

Features:

  • Catalog name contains the key configuration, rating, connector type, color, and length where applicable.
  • For project use, request the current datasheet and availability details from LANMASTER or an authorized partner.

Frequently Asked Questions

What is the LAN-EZ45x45-2UAA/4.2-WH module used for?

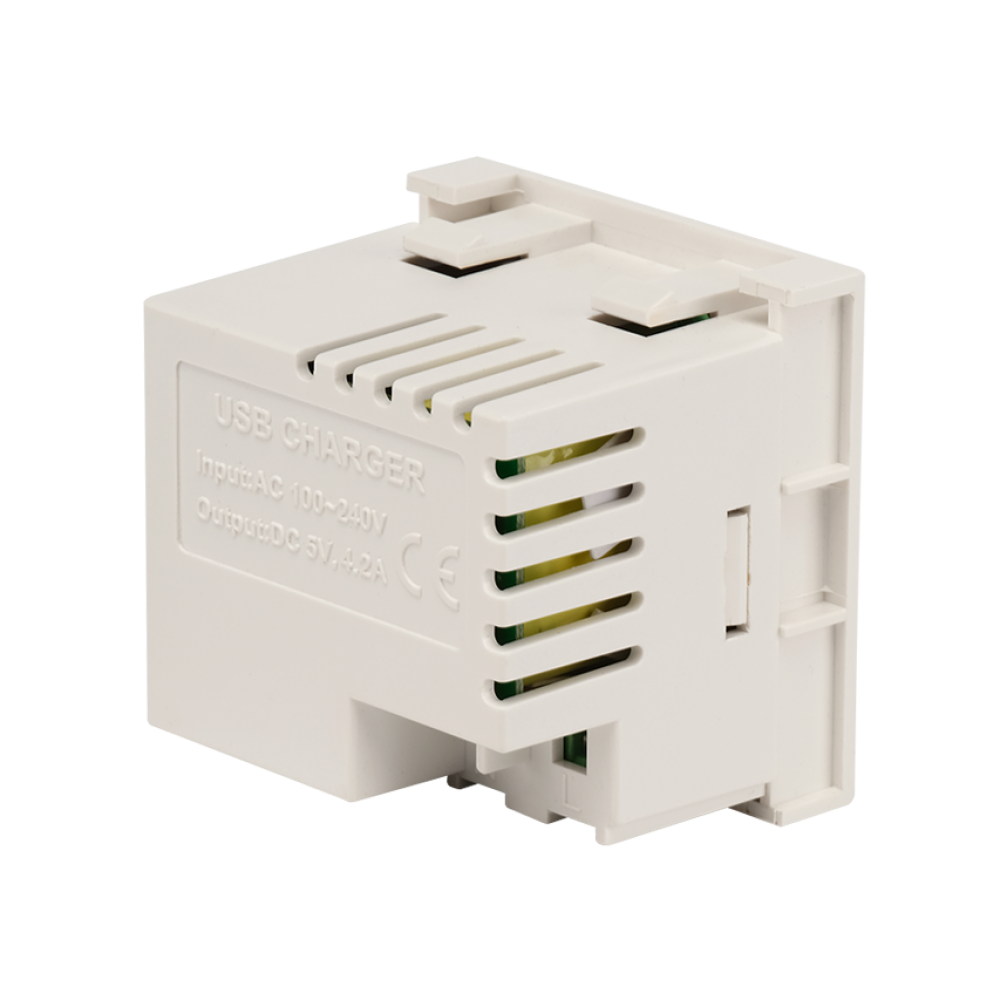

This USB charging module recharges electronic device batteries from a 100–240 V, 50 Hz AC mains supply. The module has two USB-A ports.

What charging current does the LAN-EZ45x45-2UAA/4.2-WH module provide?

Output voltage is 5 V, charging current is 4.2 A.

Can a laptop be charged through the LAN-EZ45x45-2UAA/4.2-WH module?

No, generally not. The module provides a fixed 5 V output with no USB Power Delivery (PD) negotiation, and most laptops charging over USB-C need a higher voltage (9/12/15/20 V) requested over the PD protocol from a compatible charger. a simple 5 V USB-A/USB-C port charges phones and small electronics but doesn't replace a laptop's power adapter.

What size and form factor is the LAN-EZ45x45-2UAA/4.2-WH module?

The module is sized for the French Mosaic standard, 45×45 mm, in white.

Where can the LAN-EZ45x45-2UAA/4.2-WH module be installed?

The module fits into socket assemblies, desktop mini-columns, floor boxes, and wall boxes compatible with the Mosaic format.

What material is the LAN-EZ45x45-2UAA/4.2-WH module's housing made of?

The housing is made of ABS plastic, in white (RAL 9010).

What dust and moisture protection rating does the LAN-EZ45x45-2UAA/4.2-WH module have?

The protection rating is IP20, meaning the module is protected against solid objects and fingers entering the housing, but it is not rated for damp or outdoor conditions.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-EZ45x45-2UAA/4.2-WH pcs 50 × 50 × 40 0.053 0.0001

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-EZ45x45-2UAA/4.2-WH box 240 × 100 × 40 0.57 0.00096

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
